When the water pump switch is in the “ON” position, the pump runs until 45 pounds of
pressure has been achieved. The red light will stay on. Turn the switch off when the pump is
not in use.
The heater switch is for the direct spark ignition (D.S.I.) water heater operation. (if
applicable)
Fuses for the monitor panel operation are in the 12-volt distribution center fuse block.
BBQ GRILL PREP
Your unit is equipped with an LP gas “quick coupler” connection and support bracket for
easy installation of the optional BBQ grill. The “quick coupler” is directly connected to the
LP gas system of your trailer. Make sure that you read, understand and follow all
information about LP gas supplied with your unit by various component manufacturers and
this manual.
I
WARNING: make sure that you read, understand and follow all
information supplied with your RV about LP gas before operating the
BBQ grill. The fuel hose must be correctly connected before lighting the
grill. Failure to follow instructions supplied by the grill manufacturer
with your RV or to use any other components than those originally
supplied with the grill could lead to death or serious injury from fire or
explosion.
The “quick coupler” connection can be attached to the BBQ grill as follows:
1. Place the “quick coupler handle in the OFF position and push back the sleeve. The
valve handle must be OFF to make the connection.
2. Insert the plug at the end of the BBQ grill LP gas hose and release the sleeve.
3. Push the plug until the sleeve snaps forward, locking the plug into the socket.
4. Turn the handle ON to allow LP gas to flow to the BBQ grill.
BBQ Grill (Option)
I
WARNING: The maximum weight limit for the bracket on the side of
your trailer is 50 lbs. This limit includes the weight placed on the BBQ
gill. Exceeding this weight limit could cause damage to the unit and
possibly cause personal injury from hot equipment.
An option for your trailer is a BBQ grill. This grill is for use outside of the trailer. Never
use this grill inside a compartment or the trailer. The bracket and “quick coupler” LP
Jay Feather Conventional Travel Trailer 51
At Camp...

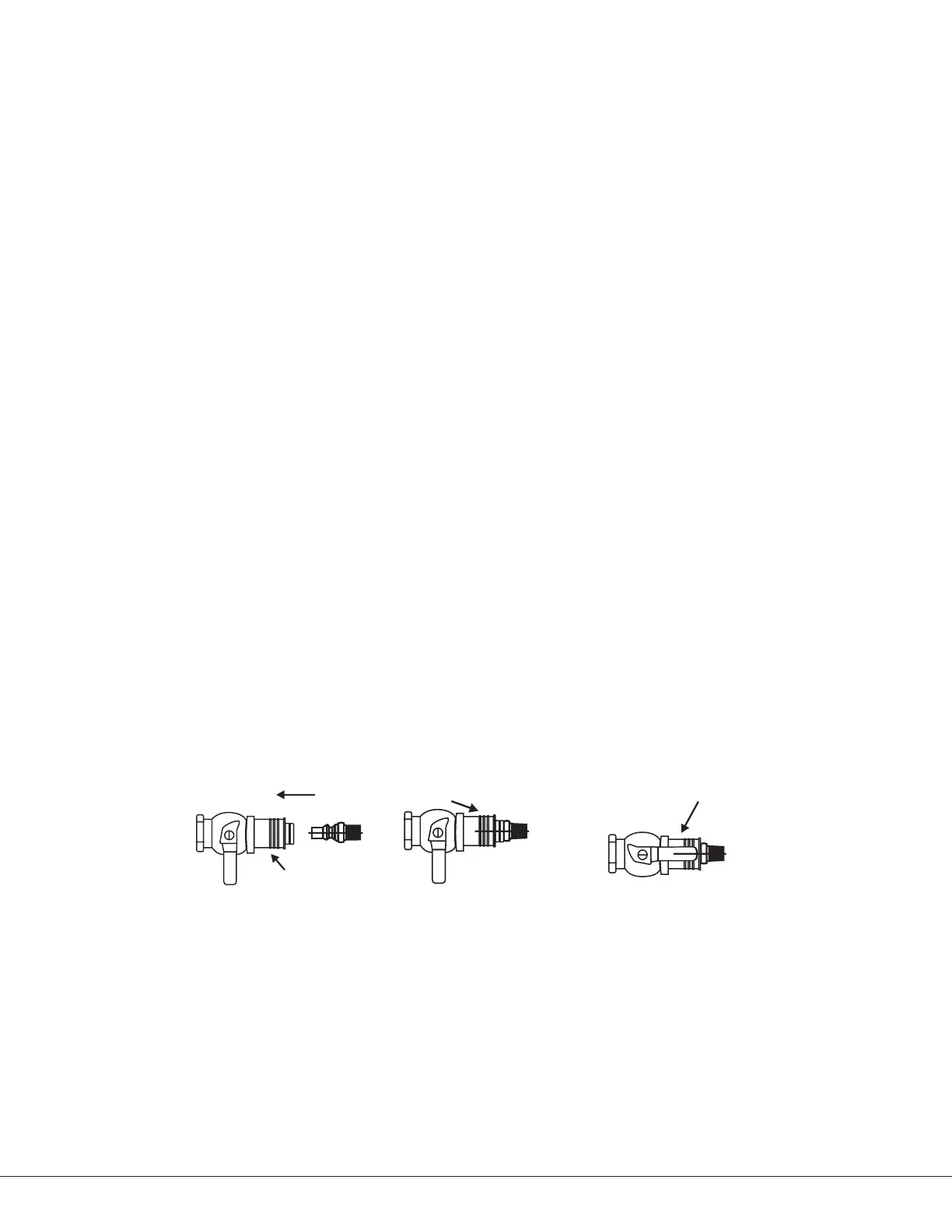

Socket
Plug
Sleeve
“OFF”
Fig. 15
Sleeve
“OFF”
Fig. 16
“ON”
Fig. 17
To Next Page
