Prior to operation, make sure the following conditions are met:
The recreation vehicle is parked on a reasonably level surface. EXCESS ANGLE will
appear on the LCD display if the coach is 3.5° out of level front to rear or side to side.
Refer to error modes in the OEM operating manual in your warranty packet.
All pets, persons and property are clear of the unit while in operation.
Battery should be fully charged or unit plugged into shore power.

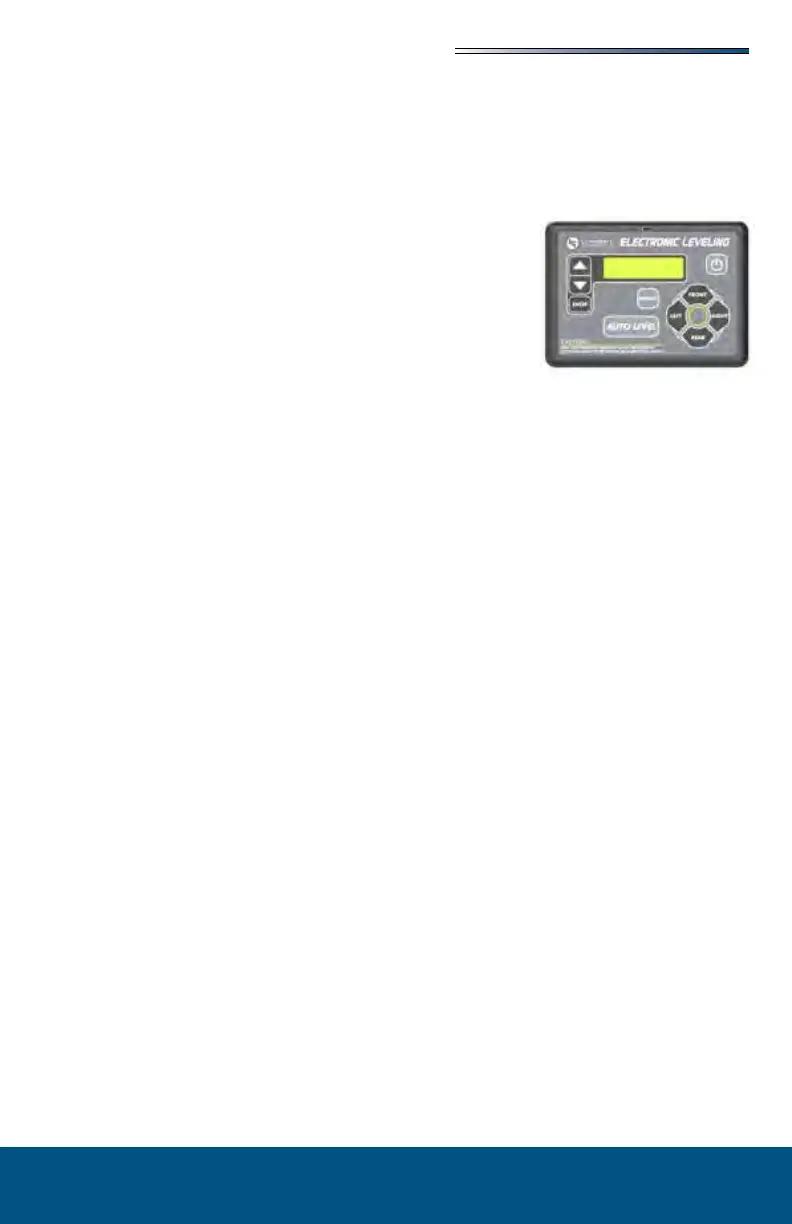

scrolls up through the menu on LCD
scrolls down through the menu on LCD
activates modes and procedures indicated on LCD
places leveling system into retract mode. Man-
ual Mode ONLY. Press and hold down for (1) second to initi-
ate auto retract.
displays procedures and results
places leveling system into auto level mode
activates both front jacks in manual mode
activates left leveling jack(s) in manual mode
activates right leveling jack(s) in manual mode
activates both rear jacks in manual mode
turns leveling system on and o
1. Begin with a manual leveling sequence to get the vehicle to the desired level point
2. Activate the Level Zero point conguration mode as follows:
○ Turn the panel OFF.
○ Press the FRONT switch 10 times.
○ Press the REAR switch 10 times.
○ A tone will sound and the display will read ZERO POINT CALIBRATION.
○ Press ENTER to set the zero point.
3. Screen will display Zero Point Stability Check and PLEASE WAIT.
4. Tone will sound and the screen will display ZERO POINT SUCCESSFUL.
5. Control will turn OFF.
The leveling control will automatically detect an air bag system.
If the unit does not use air bags, the display will read “NO” for air bag control.
If the display reads “NO” but an air bag system is present on the unit:
1. Conrm harness is connected properly.
2. Run Auto-Level function.
3. Recalibrate the Zero Point.
4. If the air bag system is still not being detected, contact the OEM for further informa-
tion.
If the alarm system detects that the park brake has been disengaged while at least one jack is
not fully retracted and the sensor value changes in any axis more than a predened amount,
the panel will signal an error.
