SOLAR PACKAGE (IF EQUIPPED)
Your recreational vehicle may be equipped with a factory installed solar panel kit that includes the solar panel(s) and solar controller(s). For care
and operation, please refer to the manufacturer’s instructions provided with your RV.
(See page 54)

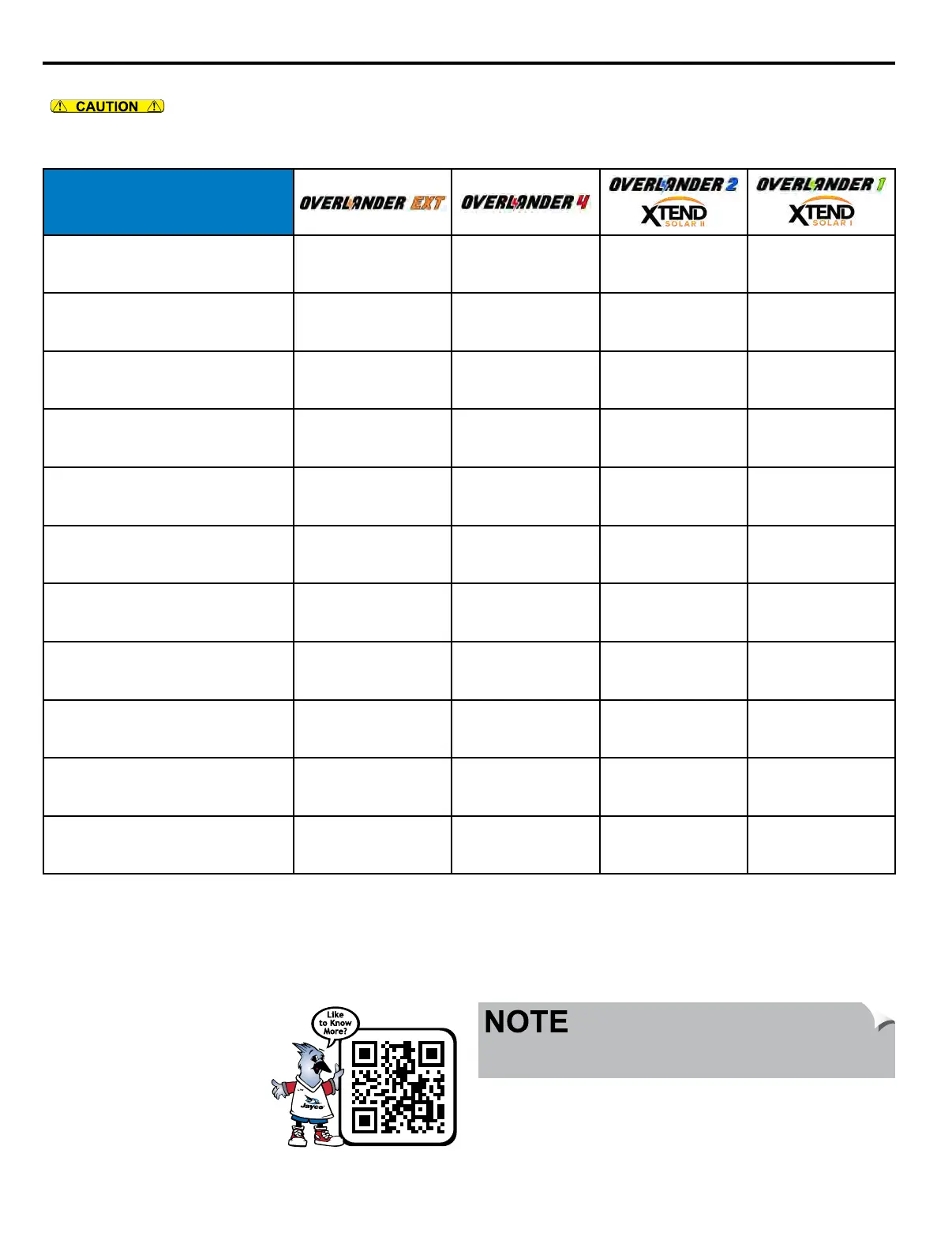

SOLAR PACKAGES
NOMINAL 200W SOLAR PANELS 6 4 2 1
100AH LITHIUM SELF-HEATED
BATTERIES
6 2 - -
SOLAR CONTROLLER 100-AMP MPPT 60-AMP MPPT
30-AMP MPPT or
30-AMP DIGITAL PWM
30-AMP DIGITAL PWM
INVERTER
3000W SPLIT PHASE/
CHARGER
3000W SPLIT PHASE/
CHARGER
1800W RV-C or
1800W W/ DISPLAY
-
DC/DC POWER CONVERTER X X - -
SOFT START POWER SAVER 15K A/C
W/ HEAT PUMP
LIVING ROOM
LIVING ROOM &
BEDROOM
- -
12-VOLT 13.5K AC BEDROOM - - -
BATTERY MONITOR X X - -
ENERGY MANAGEMENT SYSTEM X X - -
GENERATOR OPTION CAPABLE X 5TH WHEEL ONLY - -
HEAVY GAUGE STEEL BATTERY
ENCLOSURE
X X - -
Solar Controller
Regulates voltage between the solar panels and the batteries. MPPT
controllers are more efficient than standard controllers.
Inverter
Converts 12-volt DC power to 120-volt AC.
DC/DC Power Converter
Adjusts DC voltage between the tow
vehicle and the RV batteries.
Soft Start/Power Save AC
Lowers AC startup and running power
requirements.
12-volt AC
Air conditioning operates exclusively on 12V battery power.
Energy Management System
Monitors and manages RV power consumption to avoid nuisance
circuit breaker tripping.
When adding or changing solar panels or lithium batteries, the new
items must be identical to the factory installed parts.
