APPLIANCES
JAYPORT
TM
AND GAS BBQ GRILL

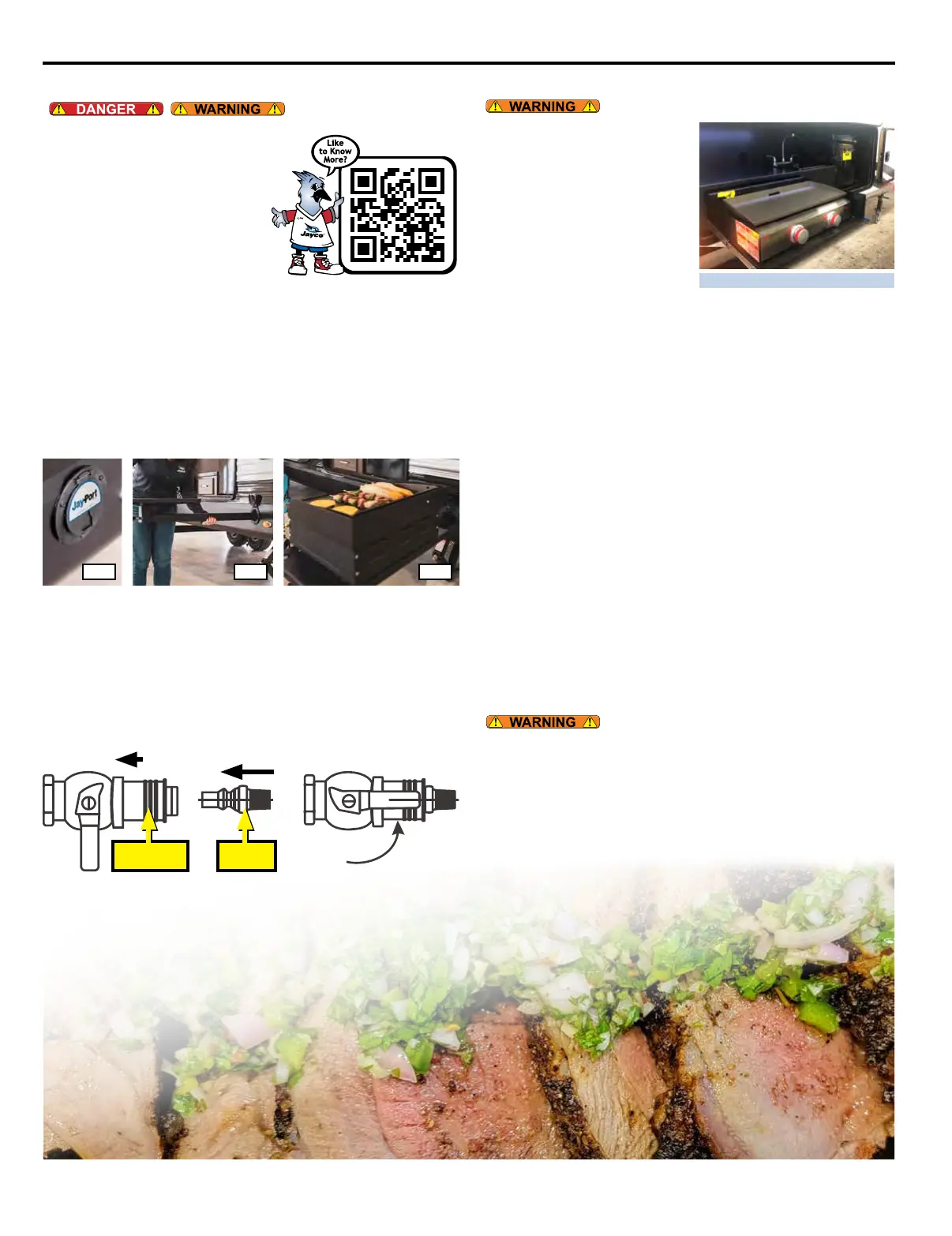

Setting up the grill stand.
1. Locate your JayPort
TM
grill
mount receiving hitch location.
Depending on your model, your
grill will be mounted with either a
bumper mount system, or a rail
mount with a JayPort
TM
branded
logo on the side of your RV (Fig
1).
2. Slide the grill stand into the JayPort
TM
. Make sure to push it in
until it stops (Fig 2).
3. Place the grill (if equipped or customer supplied) on the grill
stand platform. Make sure the grill fits within the platform tray
(Fig 3).
4. Attach the grill gas line to the quick coupler LP gas connection
following the directions below.
PROPANE GRILL QUICK COUPLER
The “quick coupler” is directly connected to the RV propane system.
The “quick coupler” connection is equipped with a positive shut-off
valve.
Place the “quick coupler handle in the OFF position and push back
the sleeve. The valve handle must be OFF to make the connection.
1. Insert the plug and release the sleeve.
2. Push the plug until the sleeve snaps forward, locking the plug
into the socket.
3. Turn the handle ON to allow propane to flow to the unit.
(See page 87)
Fig 1
Fig 2 Fig 3
OnOff
Sleeve Plug
Slide
OUTSIDE KITCHEN (IF EQUIPPED)
Outside kitchens will consist of
a small refrigerator, and possibly
an outdoor sink and/or a cooktop.
For detailed operation and
safety information on the outside
kitchen appliances, refer to the
manufacturer’s user guide.
The cooktop will function more
efficiently when level.
Outside kitchen access and locking functions may vary depending on
your model.
The following applies when using any outside kitchen
configuration.
• Make sure all supports are securely in place before using the
outside kitchen.
• Before using, make sure the propane connection is properly
hooked up and secure.
• Do not leave the cooktop unattended while using.
• Keep all clothing and flammable material away from the cooktop
while in use.
• Do not exceed the weight capacity of the outside kitchen unit.
• Disconnect the propane coupler before stowing the outside
kitchen unit.
• Make sure the kitchen unit is properly stowed and secured, and
that the outside kitchen door is securely in place and locked
before traveling.
LP Gas Grill (if equipped)
Some models may include an LP fueled BBQ grill in the outside
kitchen. This grill may be mounted in a pull out drawer. It attaches
to the LP tank using a quick coupler connection as described in the
“PROPANE GRILL QUICK COUPLER” section to the left.
For detailed operating, cleaning, and safety information refer to the
manufacturer’s user guide.
Outside Kitchen Example
(See page 87)
(See page 87)
