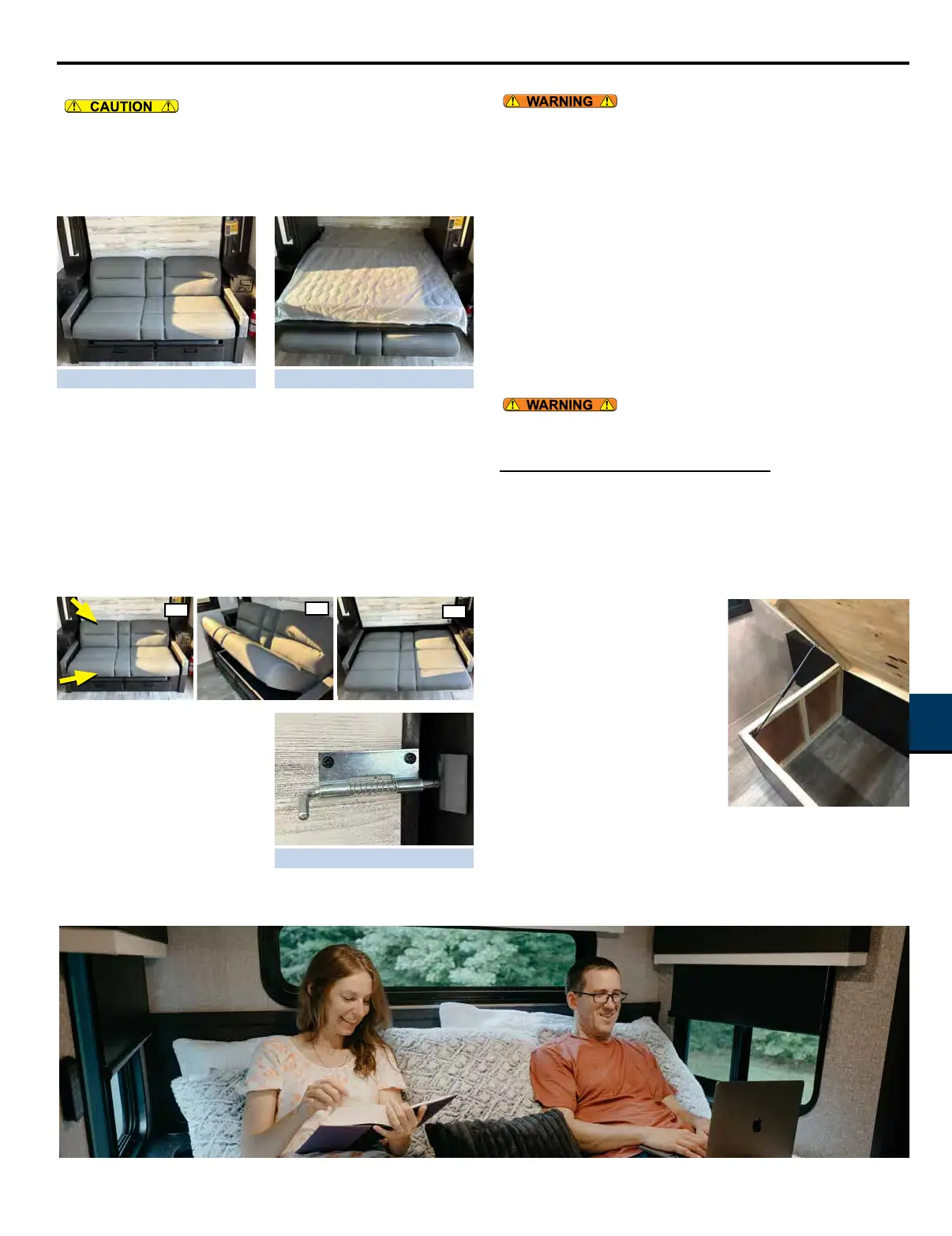

INTERIOR
MURPHY BED (IF EQUIPPED)
Your RV may be equipped with a folding Murphy bed. When in the
closed position, the bed is stored in the wall allowing for more living
space within the RV. When you want to use the bed, the sofa folds
flat and the bed can be pulled down over the sofa into the sleeping
position.
Unfolding the Sofa
With the slideout fully extended, unfold the sofa into the flat position.
• Standing at the side of the sofa, grasp the front of the seat
cushion and the top of the back cushion (A) (arrows).
• Lift up on the seat cushion while pulling the top of the back
cushion in toward the seat. The seat and back will form a “V”
shape. (B).
• Pull the seat cushion out away from the front of the sofa into the
flat position (C).
Lowering the Murphy Bed
• Unlatch the bolt latches on
one or both sides of the
bed platform (in the stored
position). This will release
the Murphy bed allowing it to
unfold.
• The bed will begin to unfold.
Lower it all the way down so the bed platform rests on the
flattened sofa.
(See page 97)
Stored Position Sleeping Position
A
B
C
Bolt Latch
Storing the Murphy Bed
• Push the bed back up into the storage position. The bolt latch or
latches should click into place.
• Test the bolt latch or latches to make sure they are secure.
• Flip the sofa back up into the seated position:
» Firmly grasp the edge of the top cushion and the front
edge of the seat cushion.
» Push the cushions down and towards each other so they
form a “V” shape.
» While holding the cushions in this “V” shape, rotate the
sofa back towards the wall and the cushions will revert to
the seated position.
(See page 97)
STANDARD BED STORAGE
Additional storage has been provided under the bed. To access the
storage area, grasp the ledge at the foot of the bed and lift carefully.
The bed platform must be held when raised.
It is recommended that two people retrieve stored items from
under the bed so that one person may hold the platform, and the
other can retrieve the stored items from under the bed. Lower the
platform slowly to close it. DO NOT DROP THE PLATFORM.
Gas Struts (if equipped)
On certain models, the bed platform
may be equipped with gas struts to
assist with easy access to storage
area.
• Grasp the ledge at the foot of the
bed and lift carefully.
• Two gas struts will hold the bed
platform open allowing access to
the storage area.
• To close, carefully push down on
the bed, slowly easing it to the
closed position.
(See page 97)
Page 95
