JBL 1500 - Exploded View and Parts List; Exploded View Diagram; Mechanical Parts List

1500 ARRAY MECHANICAL PARTS LIST
Item # Description Part Number Qty
1 CABINET ASSEMBLY-1500 ARRAY Not for Sale 1
2 15" WOOFER-W1500H 353721-001 1
3 AMPLIFIER ASSEMBLY,120V-ARRAY Not for Sale 1
4 POWER TRANSFORMER-1500 ARRAY BG 361407-001 1
5 PORT TUBE -1500 ARRAY 360806-001 1
6 CARBOARD TUBE,4 1/4x4x1/8x6-4338 47909-68 1
7 FOOT,NUT,INSERT,BLK 340805-004 4
8 FOOT,SPIKE,BLK 340805-005 4
9 GRILLE,FRONT, 1500 ARRAY 354507-001 1
10 WOOFER SCREW,10-32 X 1,FIL,PH,BLK ZINC,LCS 804-01110-16 8
11 AMPLIFIER SCREW,8 X 1,PAN,PH,PB,BLK ZINC,LCS 883-41110-16 10
12 GASKET,DRVR,15" 338073-001 1
13 LOGO-JBL 360813-001 1

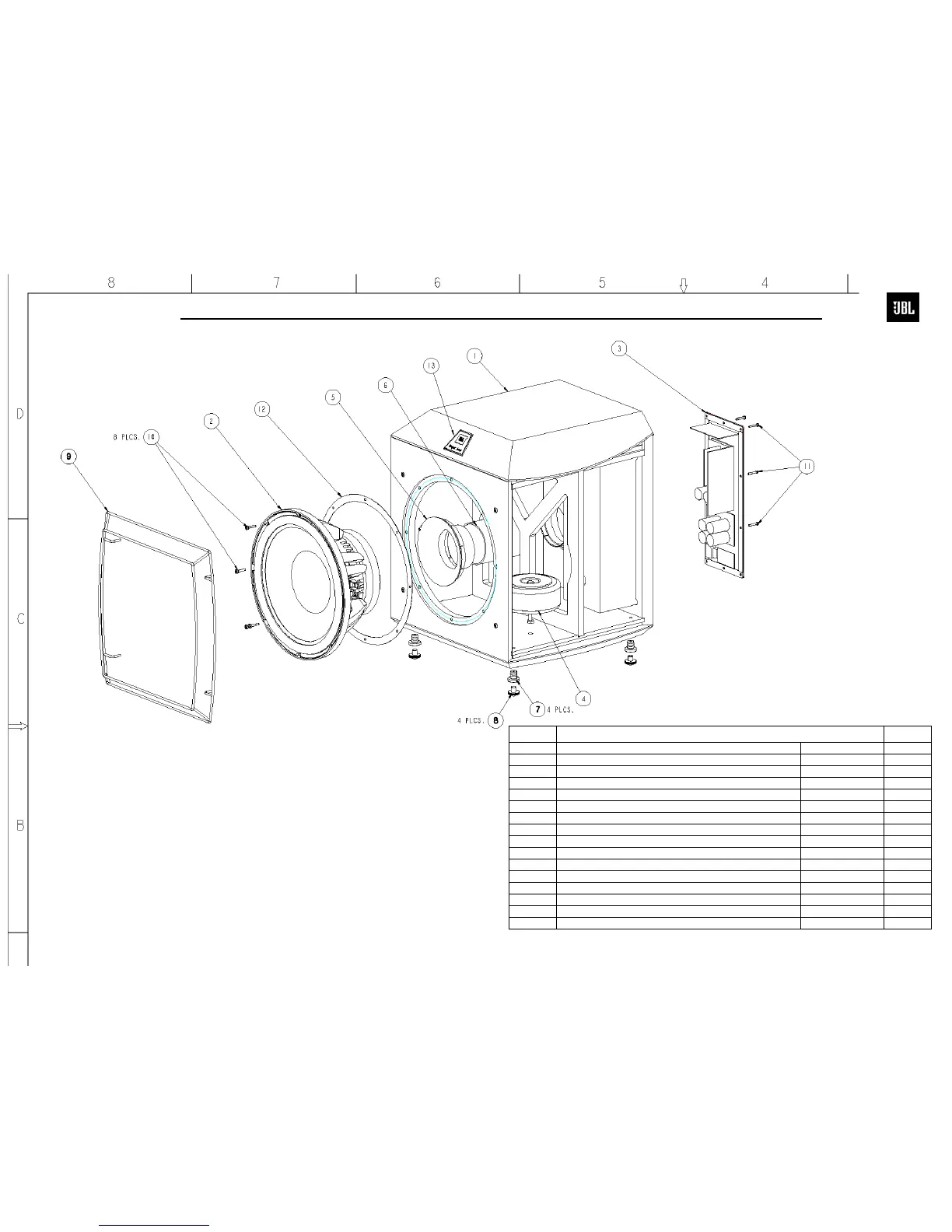

1500 ARRAY SUB EXPLODED VIEW
X RAY VIEW FOR
ILLUSTRATIVE PURPOSES ONLY
DAMPING MATERIAL NOT SHOWN
8
1500 Array Subwoofer
