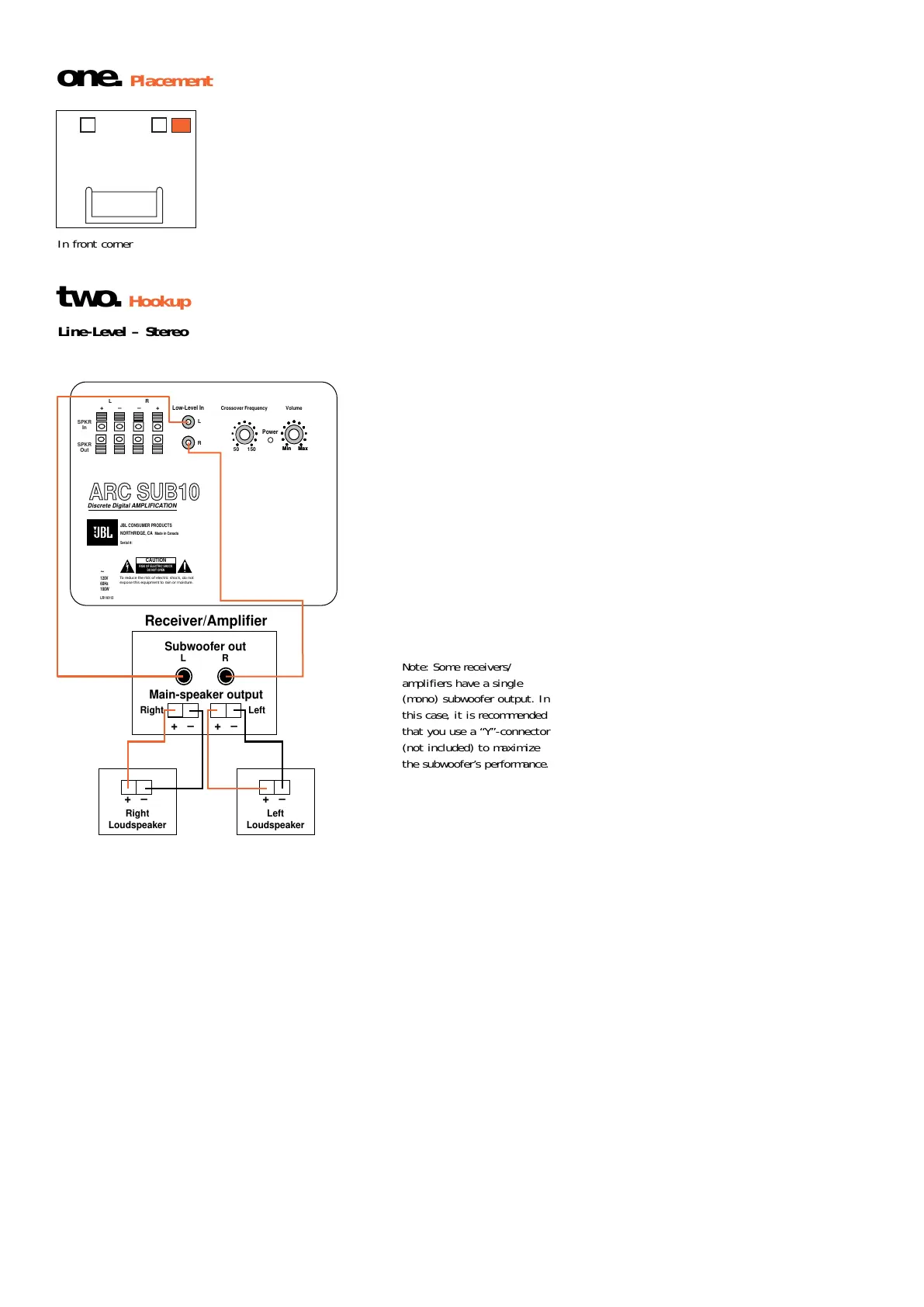

JBL ARC SUB10 Simple Setup Guide

one.Placement
two.Hookup
R
Left
L
Right
Receiver/Amplifier
Subwoofer out
Main-speaker output
+ –
+ –+ –
Right
Loudspeaker
+ –
Left
Loudspeaker
Min Max
Discrete Digital AMPLIFICATION
JBL CONSUMER PRODUCTS
NORTHRIDGE, CA Made in Canada
Serial #:
~
120V
60Hz
100W
LR110113
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
To reduce the risk of electric shock, do not
expose this equipment to rain or moisture.
+ – – +
ARC SUB10
L R
SPKR
In
SPKR
Out
Crossover Frequency
50 150
Volume
Min Max
Power
Low-Level In
L
R
Line-Level – Stereo
In front corner
Note: Some receivers/
amplifiers have a single
(mono) subwoofer output. In
this case, it is recommended
that you use a “Y”-connector
(not included) to maximize
the subwoofer’s performance.
Arc Sub10 7/17/98 12:32 PM Page 2
All manuals and user guides at all-guides.com

JBL ARC SUB10 Specifications

Power

amplifier power	100 watts

Driver

driver size	10 inches

Inputs and Outputs

inputs	Line- and high-level
outputs	High-level with high-pass filter at 180Hz

Frequency

crossover frequency	50Hz – 150Hz
frequency response	35Hz – 150Hz

Weight and Dimensions

dimensions	11-1/2 x 17-1/8 x 16-1/2 inches
dimensions metric	292 x 435 x 419mm
weight	27 lbs/12.3 kg
