JBL ARC SUB10 Simple Setup Guide

Left Right
Receiver/Amplifier
Main-speaker output
+ –
– ++ –
Right
Loudspeaker
+ –
Left
Loudspeaker
Crossover Frequency
50 150
Volume
Min Max
Power
Discrete Digital AMPLIFICATION
JBL CONSUMER PRODUCTS
NORTHRIDGE, CA Made in Canada
Serial #:
L R
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
To reduce the risk of electric shock, do not
expose this equipment to rain or moisture.
+ – – +
Low-Level In
ARC SUB10
L
R
SPKR
In
SPKR
Out
~
120V
60Hz
100W
LR110113

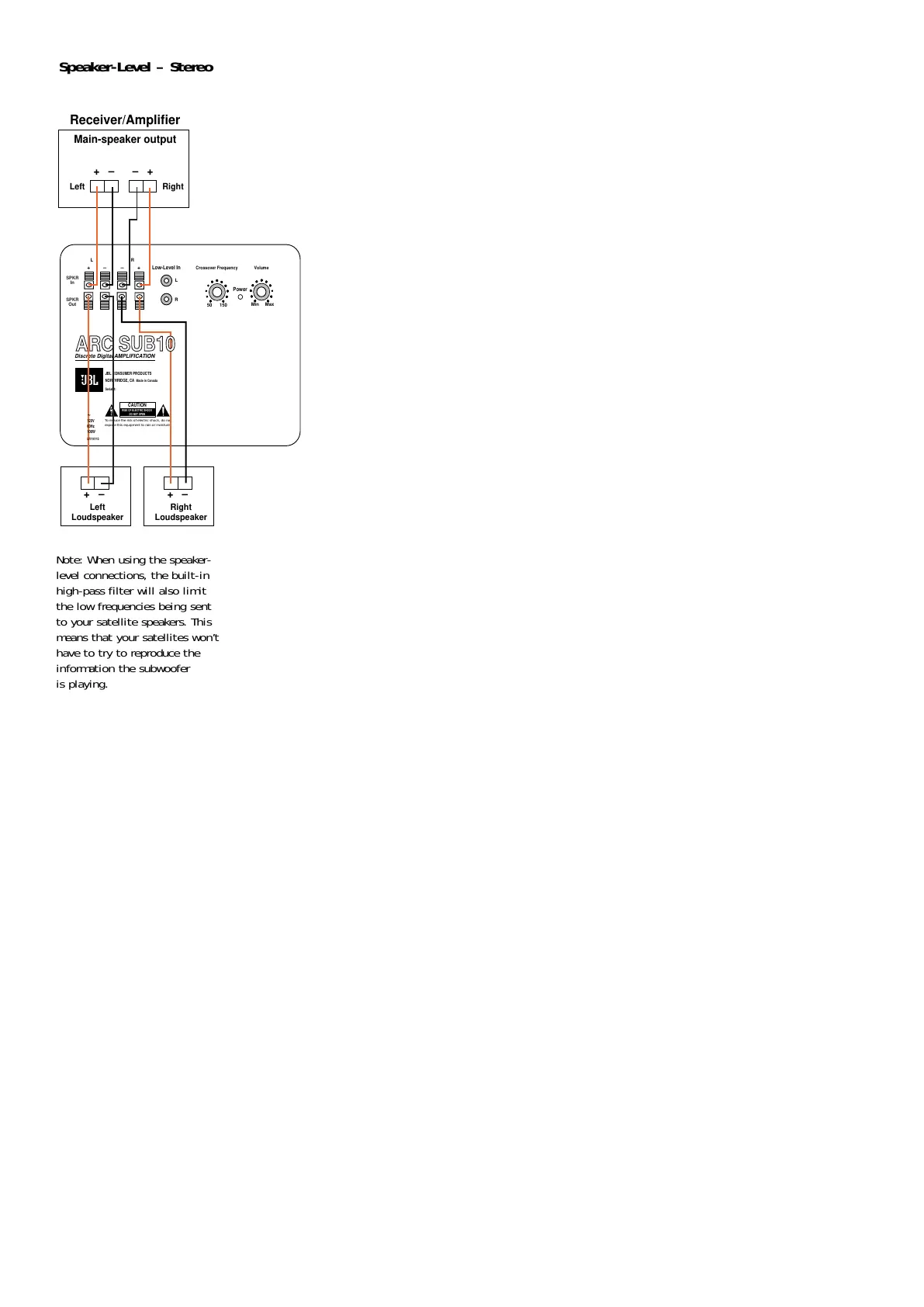

Speaker-Level – Stereo
Note: When using the speaker-
level connections, the built-in
high-pass filter will also limit
the low frequencies being sent
to your satellite speakers. This
means that your satellites won’t
have to try to reproduce the
information the subwoofer
is playing.
Arc Sub10 7/17/98 12:32 PM Page 3
All manuals and user guides at all-guides.com

JBL ARC SUB10 Specifications

Power

amplifier power	100 watts

Driver

driver size	10 inches

Inputs and Outputs

inputs	Line- and high-level
outputs	High-level with high-pass filter at 180Hz

Frequency

crossover frequency	50Hz – 150Hz
frequency response	35Hz – 150Hz

Weight and Dimensions

dimensions	11-1/2 x 17-1/8 x 16-1/2 inches
dimensions metric	292 x 435 x 419mm
weight	27 lbs/12.3 kg
