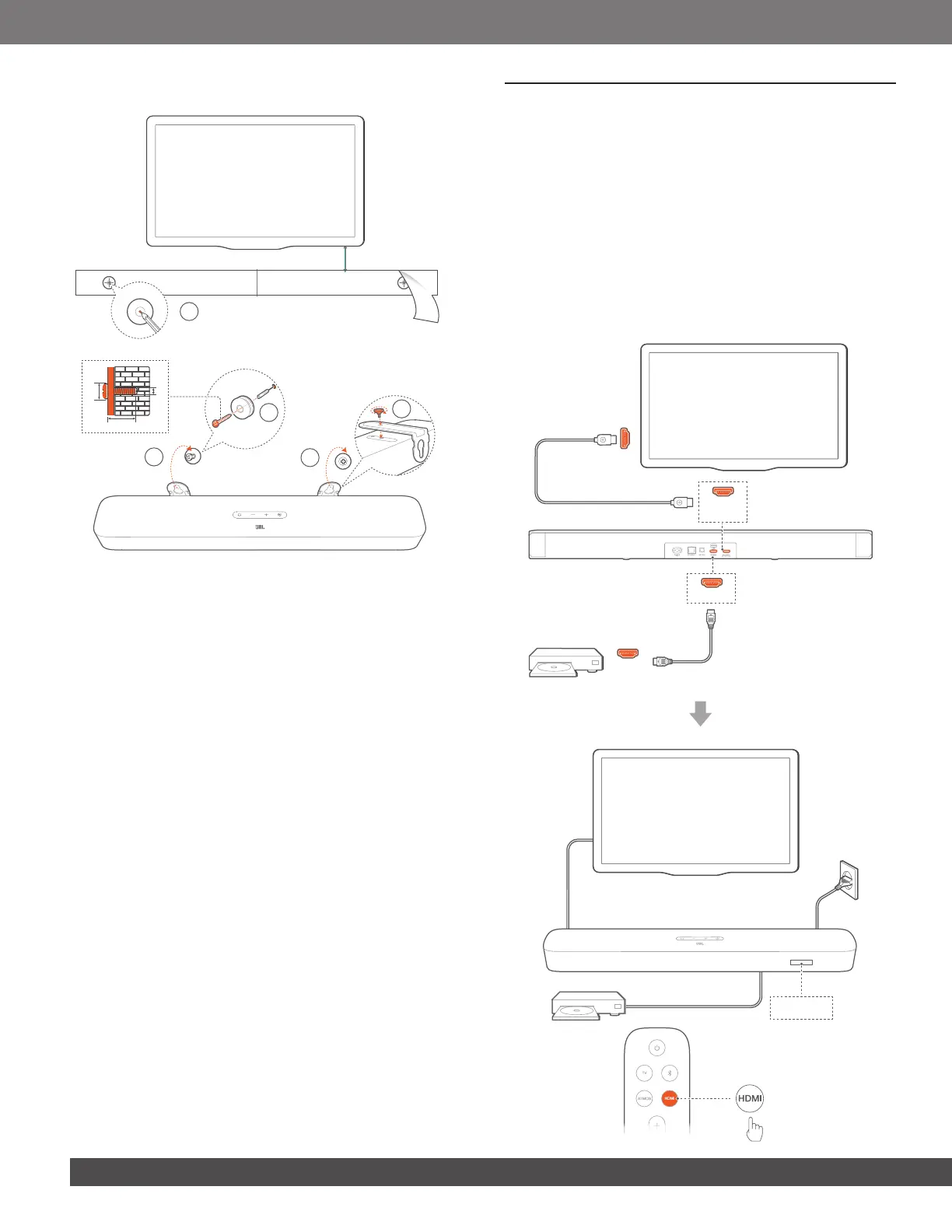

4.2 Wall-mounting
1c)
>2” (50mm)
1a)
1
4
4
2
3
1b)
≤8 mm/0.31"
4mm/0.16"
≥30 mm/1.18"
1. Preparation:
a) With a minimum distance of 2” (50mm) from your TV, stick
the supplied wall-mounting template to a wall by using
adhesive tapes.
b) Use your ballpen tip to mark the screw holder location.
Remove the template.
c) On the marked location, drill a 4 mm/0.16” hole.
2. Install the support for wall-mounting bracket.
3. With the screw, fasten the wall-mounting bracket onto the
bottom of the soundbar.
4. Mount the soundbar.
NOTES:
− Make sure that the wall can support the weight of the soundbar.
− Install on a vertical wall only.
− Avoid a location under high temperature or humidity.
− Before wall-mounting, make sure that cables can be properly
connected between the soundbar and external devices.
− Before wall-mounting, make sure that the soundbar is unplugged
from power. Otherwise, it may cause an electric shock.
5. CONNECT
5.1 Connection with your TV and digital devices
For audio playback through the soundbar, connect the soundbar
with your TV through the supplied HDMI cable or an optical cable
(sold separately).
An HDMI connection supports digital audio and video with a
single connection. HDMI connectivity is the best option for your
soundbar.
TV (HDMI ARC)
(Recommended connection for the best Dolby Atmos experience)
HDMI (ARC)
HDMI IN
HDMI OUT
(TV ARC/TV eARC)
HDMI OUT
*
HDMI IN
To Next Page
