JBL BP1200.1 Service Manual

1
25
14

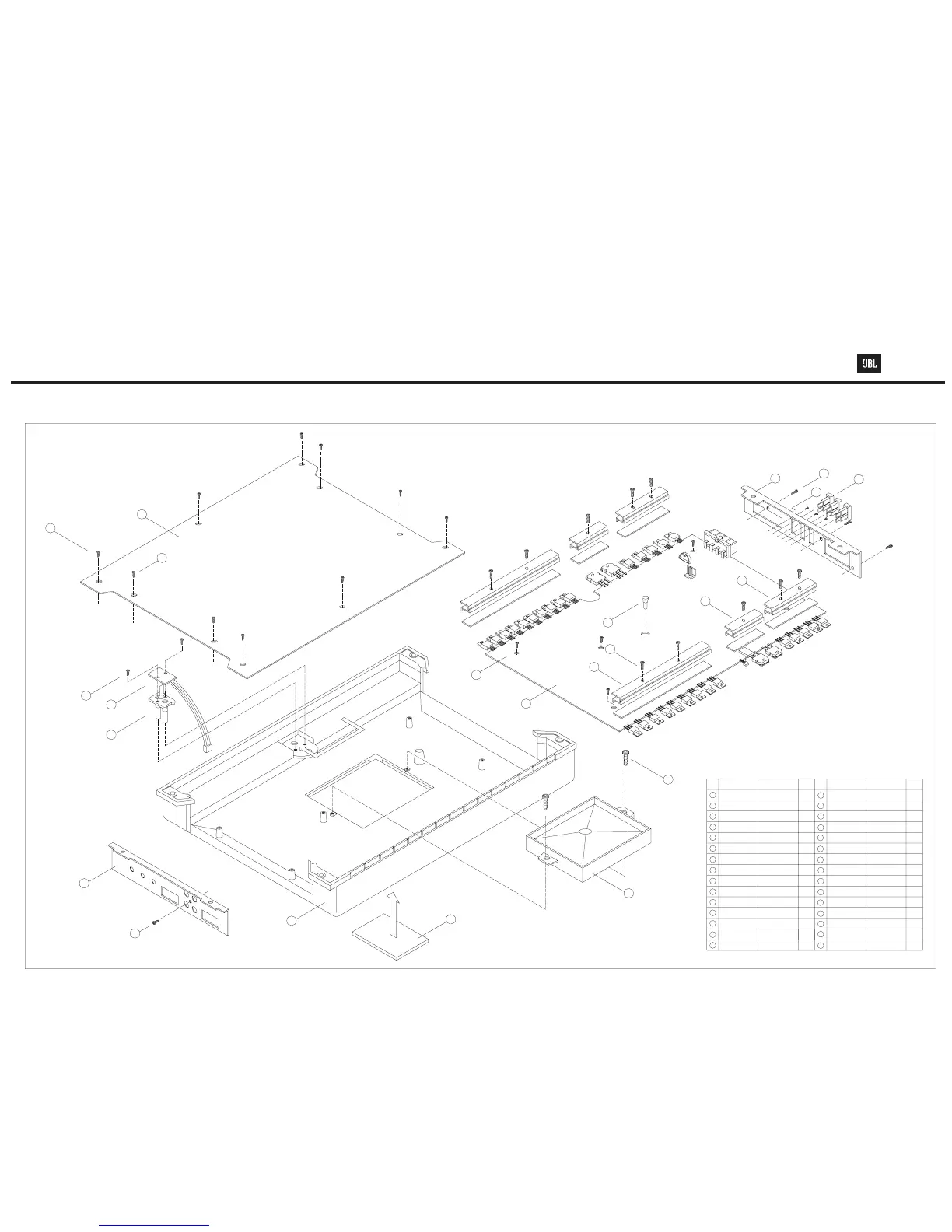

BP-1200.1 Mechanical Exploded View
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
T.R BRACKET "1060A"
T.R BRACKET "1062C"
T.R BRACKET "1061B"
2
3
8
9
10
11
13
x5
4
6
5
15
16
21
22
x4
23
x4
1 Channel Automotive Amplifier
HEAT SINK
REFLECTOR
SCREW
LED CAP
SUB PCB
SCREW
HEAT SINK
P.C.B
HEAT SINK
SCREW
SCREW
FRONT PANEL
BP-1200.1
16
17
18
19
Q'TYMFR PARTSNOMENCLATURE
20
21
22
23
24
25
26
27
28
Q'TYMFR PARTSNOMENCLATURE
29
30
MA-HS-65-1080-0
1
MA-IL-65-1025-0
1
MA-IL-65-1025-0
1
MA-IL-65-1024-0
1
PB014087010
1
MN-SC-00-5-30-08
1
MA-HS-65-1080-0
1
PB011344010
1
MA-HS-65-1080-0
1
MA-BR-02-1060-0
1
MA-BR-02-1062-0
1
MA-BR-02-1061-0
1
MN-SC-00-2-40-16
10
MN-SC-00-5-30-06
5
MA-FP-65-3787-0
1
12
MN-SC-00-2-30-06
MO-SC-03-2-30-08
MA-BC-65-2806-0
SCREW
SCREW
BOTTOM COVER
4
6
1
SCREW
REAR PANEL
SCREW
SCREW
FUSE
SCREW
MN-SC-00-5-30-08
FU030120401
MB-SC-05-2-20-06
MB-SC-04-3-30-08
MA-RP-65-3788-0
MB-SC-04-3-30-08
1
3
3
1
3
1
17
18
20
19
x3
x3
BADGE
MA-BG-65-1026-0
1
17
6
