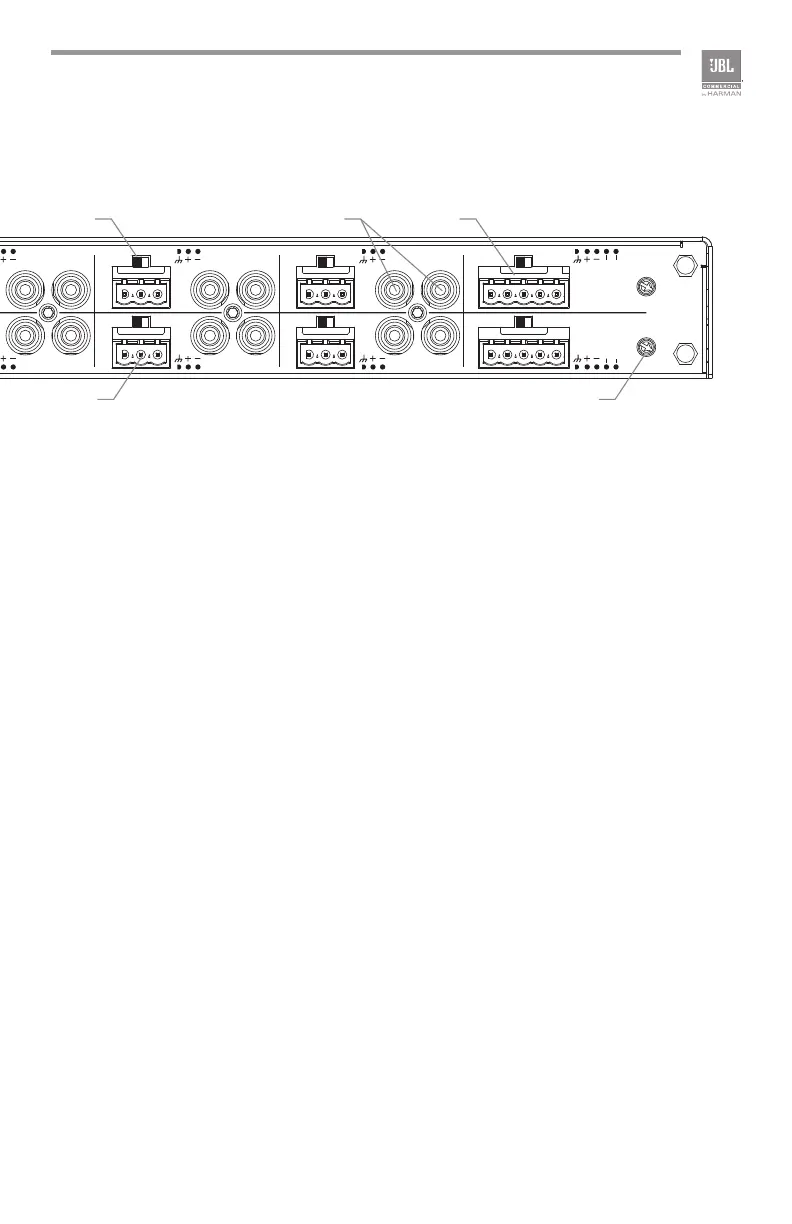

JBL CSM 14 - CSM 28 Rear Panel Controls (G-I)

11
100-240 V~ 50/60Hz 10W
MADE IN MALAYSIA
CAUTION - TO REDUCE THE RISK OF ELECTRIC
SHOCK, GROUNDING OF THE CENTER PIN OF
THE PLUG MUST BE MAINTAINED.
5040054
CSM 28
CSR-V ONLY
21 3 4 5 6
7
8 9 10 11 12
MIC
MONO SUM
MONO SUM MONO SUM
1 2
OUT 1
CH4 INPUT
INPUT ROUTING
OUT 2
LINE
CH8 INPUT
CH3 INPUTCH7 INPUT CH2 INPUTCH6 INPUT
CH1 INPUTCH5 INPUT
PRIORITY
PRIORITY
MICLINE
MICLINE
MICLINE
MICLINE
MICLINE
MICLINE
MICLINE
1 - CH1 TO OUT2
2 - CH2 TO OUT2
3 - CH3 TO OUT2
4 - CH4 TO OUT2
5 - OUT1 70HZ HPF
6 - PHANTOM
7 - CH5 TO OUT1
8 - CH6 TO OUT1
9 - CH7 TO OUT1
10 - CH8 TO OUT1
11 - OUT2 70HZ HPF
12 - NC
CH 1 VOX
CH 5 VOX
MONO SUM
MONO SUM
MONO SUM
C ED
A B
F G
H I
G. Line Out – Line level output connector for each output channel.
H. Mic/Line Input Connector – 3-pin Euro-block connector for a balanced input
source. (Ch 2-4 & 6-8)
I. VOX Adjustment – Allows the input level to be set that will invoke priority
override. (Ch 1 & 5)
