10
1.4 Rear Panel Controls and Connectors - Eight Channel

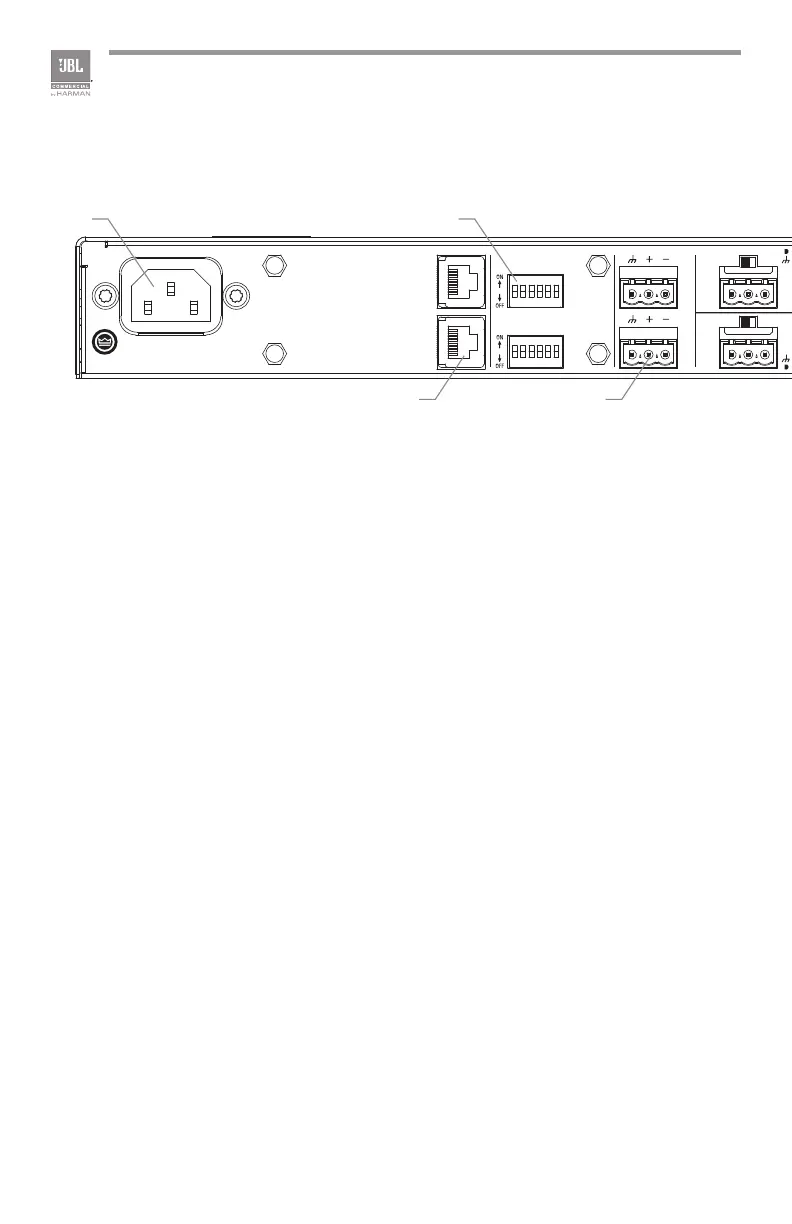

Figure 1.4 Rear View - CSM 28
A. AC Power Inlet – Detachable IEC
B. Dip switches for input routing and phantom power.
C. Mic/Line Selection Switch – Allows the user to select the gain depending
upon the source used.
D. Dual RCA Input Connector – Stereo, unbalanced sources will be summed
together. (Ch 2-8)
E. Priority Input Connector – 5-pin Euro-block includes 3 pins for a balanced
input as well as two pins that, when shorted together, activates the priority
function. (Ch 1 & 5)
F. Remote Volume Control – RJ45 style connector to connect to a JBL CSR-V
control module.
100-240 V~ 50/60Hz 10W
MADE IN MALAYSIA
CAUTION - TO REDUCE THE RISK OF ELECTRIC
SHOCK, GROUNDING OF THE CENTER PIN OF
THE PLUG MUST BE MAINTAINED.
5040054
CSM 28
CSR-V ONLY
21 3 4 5 6
7
8 9 10 11 12
MIC
MONO SUM
MONO SUM MONO SUM
1 2
OUT 1
CH4 INPUT
INPUT ROUTING
OUT 2
LINE
CH8 INPUT
CH3 INPUTCH7 INPUT
CH2 INPUTCH6 INPUT
CH1 INPUTCH5 INPUT
PRIORITY
PRIORITY
MICLINE
MICLINE
MICLINE
MICLINE
MICLINE
MICLINE
MICLINE
1 - CH1 TO OUT2
2 - CH2 TO OUT2
3 - CH3 TO OUT2
4 - CH4 TO OUT2
5 - OUT1 70HZ HPF
6 - PHANTOM
7 - CH5 TO OUT1
8 - CH6 TO OUT1
9 - CH7 TO OUT1
10 - CH8 TO OUT1
11 - OUT2 70HZ HPF
12 - NC
CH 1 VOX
CH 5 VOX
MONO SUM
MONO SUM
MONO SUM
C ED
A B
F G
H I
