JBL EON10 - Page 19

1 (shield)
2
3
1
2
3

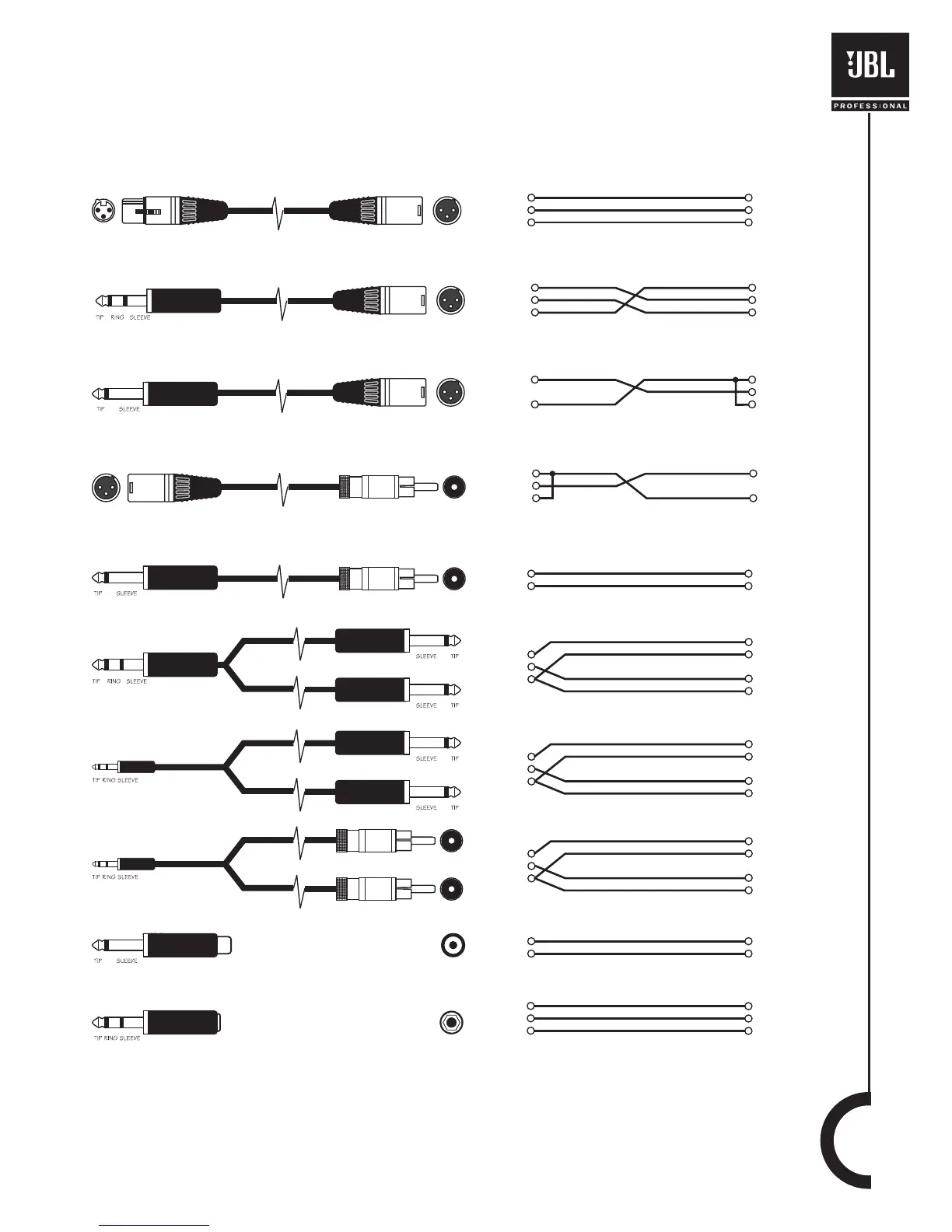

XLR/F to XLR/M Microphone Cable
TS (Unbalanced) 1/4Ó Phone to XLR/M Cable
Tip
Sleeve
1 (shield)
2
3
TRS 1/4Ó Phone to dual TS 1/4Ó Phone
Tip
Ring
Sleeve
Tip
Sleeve (shield)
Tip
Sleeve (shield)
TRS 1/8Ó Mini-Phone to RCA (phono) Adapter
Tip
Ring
Sleeve
Tip
Sleeve (shield)
Tip
Sleeve (shield)
TRS 1/8Ó Mini-Phone to dual TS 1/4Ó Phone
Tip
Ring
Sleeve
Tip
Sleeve (shield)
Tip
Sleeve (shield)
XLR/M to RCA (phono) Cable
1
2
3
Center
Shield
TRS (Balanced) 1/4Ó Phone to XLR/M Cable
Tip
Ring
Sleeve
1 (shield)
2
3
Tip
Sleeve
Tip
Sleeve (shield)
TS (Unbalanced) 1/4Ó Phone to RCA (phono) Cable
Tip
Sleeve
Tip
Sleeve (shield)
1/4Ó Phone to
RCA (phono) Adapter
TRS 1/4Ó Phone to 1/8Ó Mini-Phone Adapter
Tip
Ring
Sleeve
Tip
Ring
Sleeve
