JBL EON210P/230 - Component Exploded View; Speaker Components

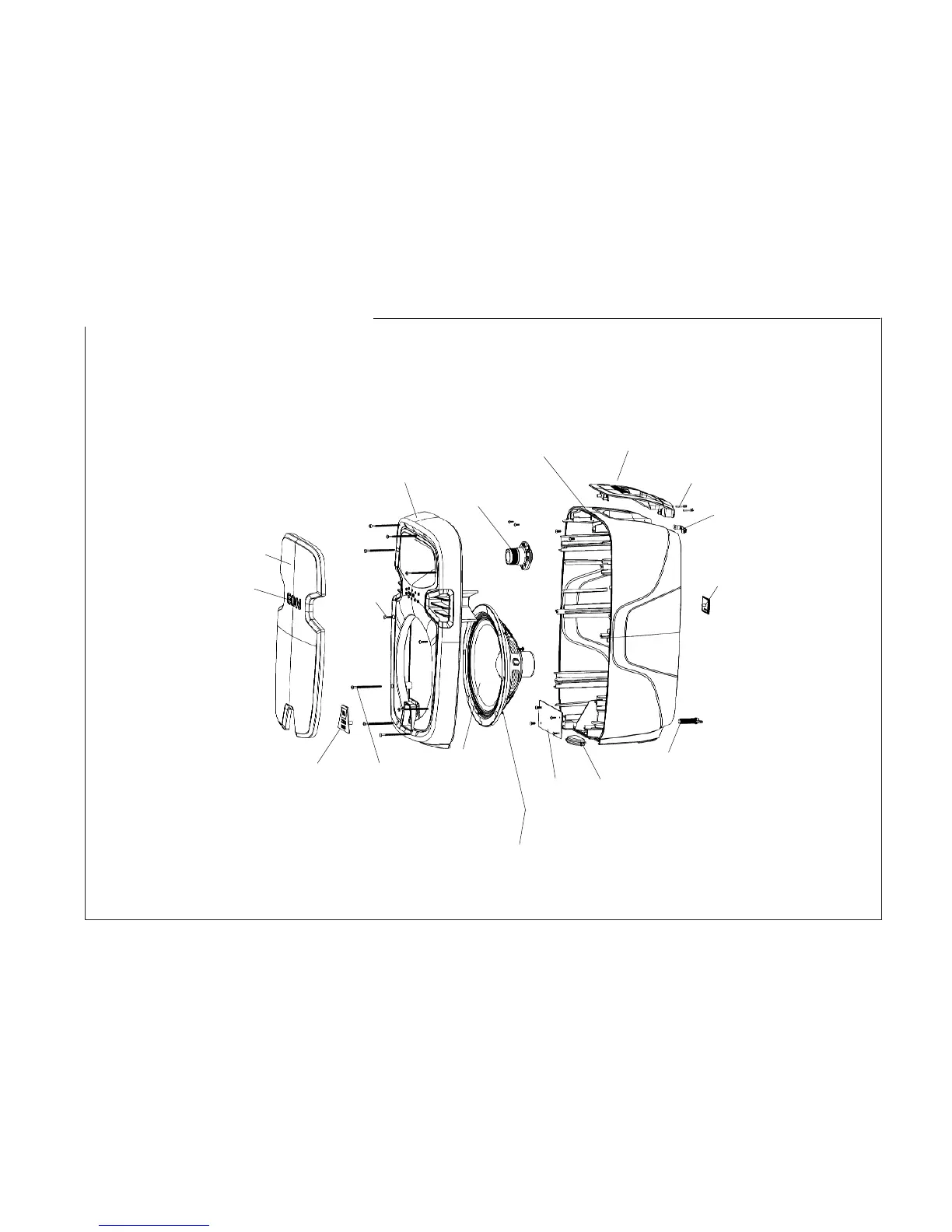

COMPONENT EXPLODED VIEW
JBL EON210P/230
JBL EON210P/230
Logo Badge
Assembly (2)
445177-001
Screw
445355-001
M3.5 x 9
Self Tapping
Driver, Low Freq
328H
443639-001
Screw (26)
862-41410-10
6 x 5/8
PAN,PHH,HIGH-
LO,BLK,ZINC,LCS
Network
Assembly
444944-001
Screw (4)
445355-001
M3.5 x 9
Self Tapping
Foot (4)
364870-001
Thumbscrew (2)
364983-001
Logo Badge
364863-001
Screw
445355-001
M3.5 x 9
Self Tapping
Screw (8)
365270-001
M4 x 65
(baffle)
Screw (2)
365270-002
M4-35MM
(baffle)
Baffle
364865-001
Grille Assembly
364866-001
EON Letters
365346-001
Driver, High Freq.
2414H-1
363858-001X
Rear Enclosure
EON210P/230
(Not Available for Sale)
Gasket
364835-001
Enclosure
445364-001
Dampening Material
Enclosure Handle
444841-001
Screw (5)
445355-001
M3.5 x 9
Self Tapping
Latch Plate
445052-001
Washer
445384-001
Eon Support Pin (2)
445043-001
Screw (4)
804-01110-12
10-32 x 3/4
FIL,PH,BLK
ZINC LCS
