JBL EON210P/230 - Powered Mixer Exploded View; Mixer Plate Assembly Exploded

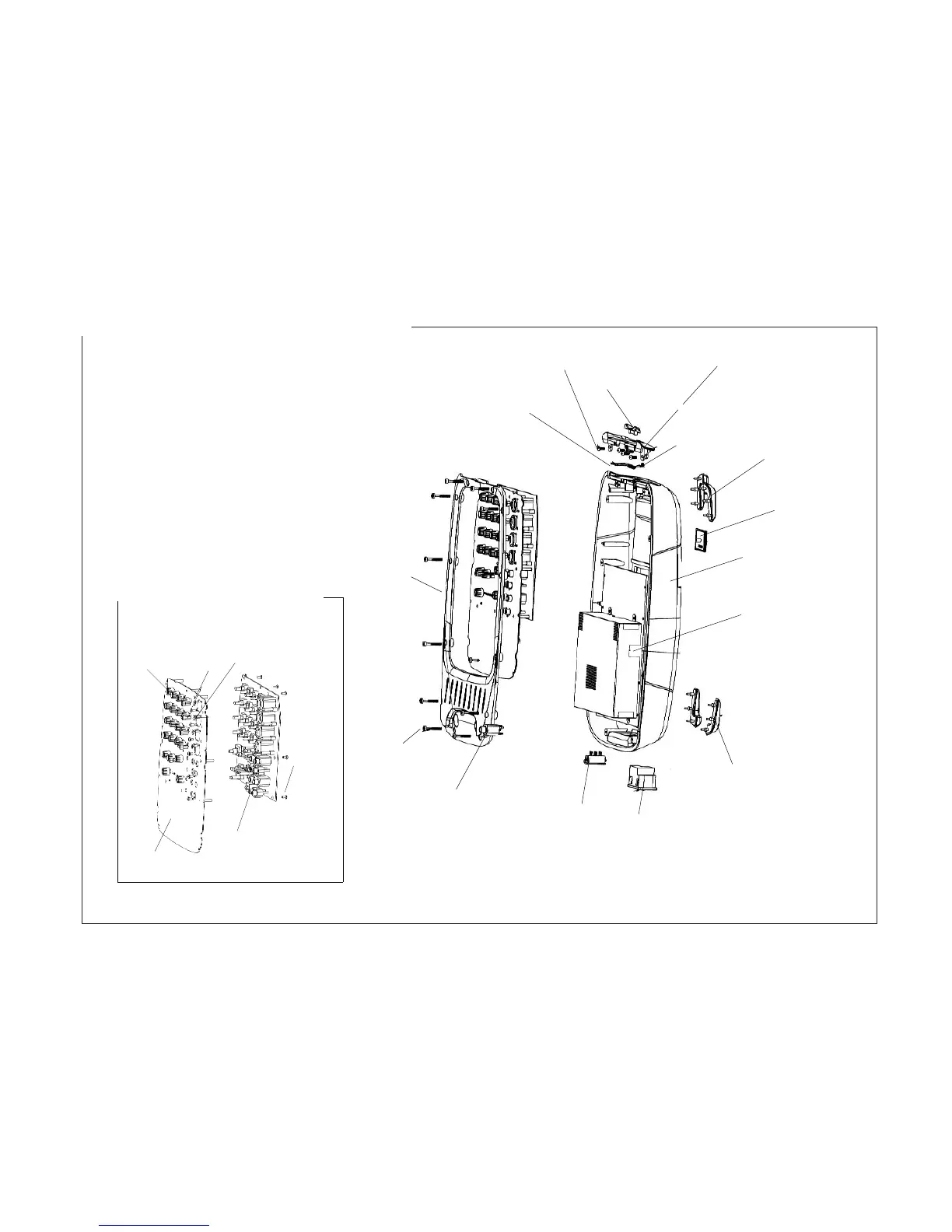

POWERED MIXER EXPLODED VIEW
JBL EON210P/230
JBL EON210P/230
Screw (12)
365270-003
M4-12MM
Baffle
Bezel
444846-002
Output Jack (2)
445363-001
Mixer Plate
444850-001
Screw (8)
445355-002
M3.5 x 15
Self Tapping
Voltage
Selector
445360-001
AC Inlet
Connector
365428-001
Foot, Left (2)
445046-001
Amplifier
Assembly
445356-001
Screw (10)
445362-002
M3 x 7
FLT Self Tapping
Mixer Enclosure
(Not Available For
Sale)
Logo Badge
364863-001
Foot, Right (2)
444847-001
Mixer
Release
Button
444844-001
Mixer
Release
Cover
444843-001
Screw (5)
445355-002
M3.5 x 15
Self Tapping
Screw (2)
445362-001
M3 x 5
Flat Self Tapping
Latch Hook
445051-001
Spring
445361-001
25.4MM
MIXER PLATE ASSEMBLY EXPLODED - 445879-001
Knob (21)
445045-001
Mixer Plate Assembly
444850-001
Push Button (5)
445175-001
Screw (10)
445881-001
M3 x 6.5
Self Tapping
Mix Plate to XLR
Mixer PCB Assembly
444840-001
Screw (7)
445880-001
M3 x
3.5MM
Machine
Mix Board
to Mix Plate
Mixer / Amplifier Assembly
446130-001
