JBL LS Series - System Connections; Connection Examples

SYSTEM CONNECTIONS

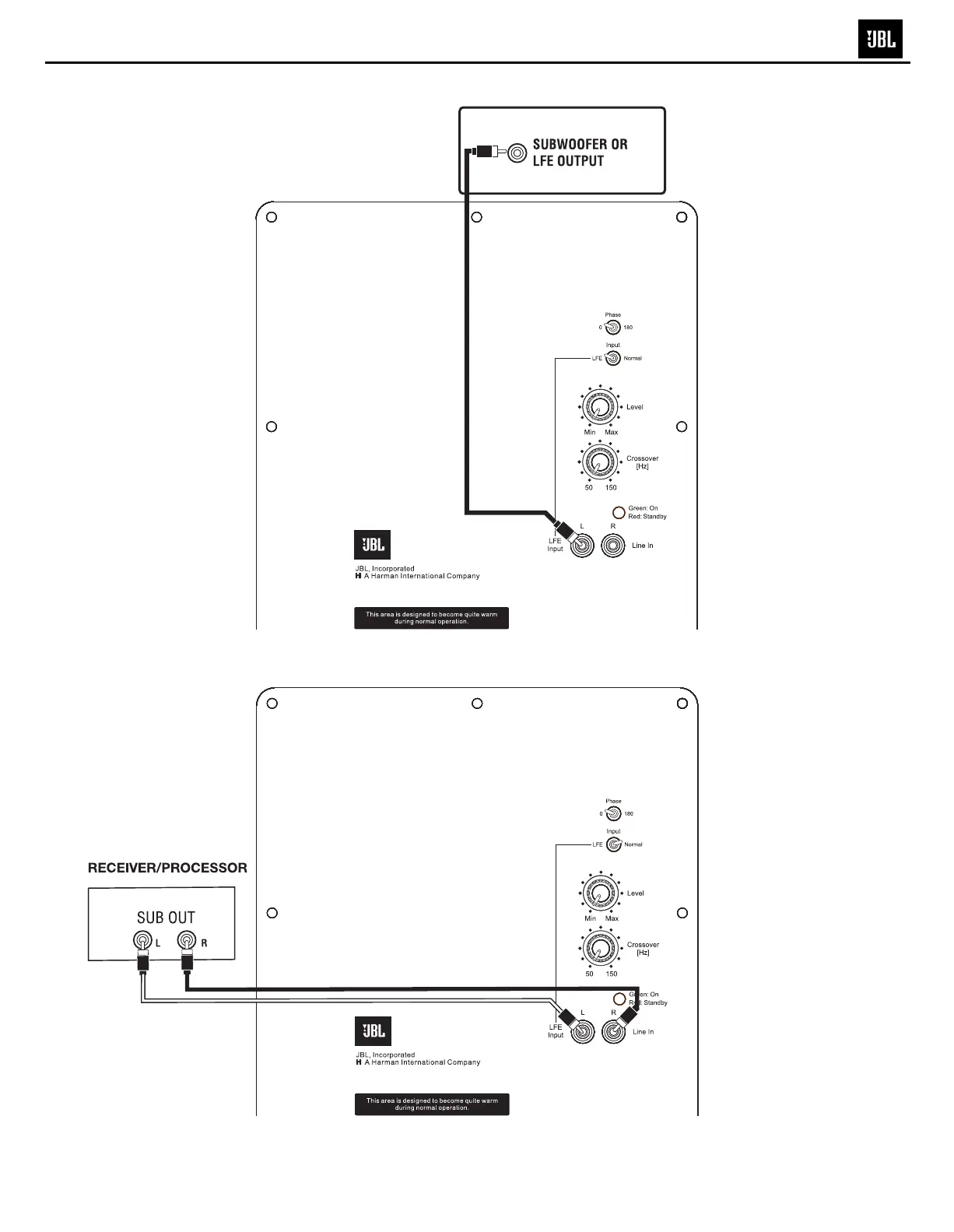

If you have a Dolby
®
Digital or DTS
®
receiver/processor
with a low-frequency-effects (LFE) or subwoofer output:
5
If your receiver/processor does not contain a Dolby Digital or DTS
processor, but has subwoofer outputs:
Set LFE/Normal switch to
“Normal.”
NOTE: If your receiver/processor
has only one sub out, you may
use either the L or R input.
LS120P
LS120P
Set LFE/Normal switch to “LFE.”
JBLP2555LS120P-120Vom 4/16/08 1:12 PM Page 5
6
LS120P
