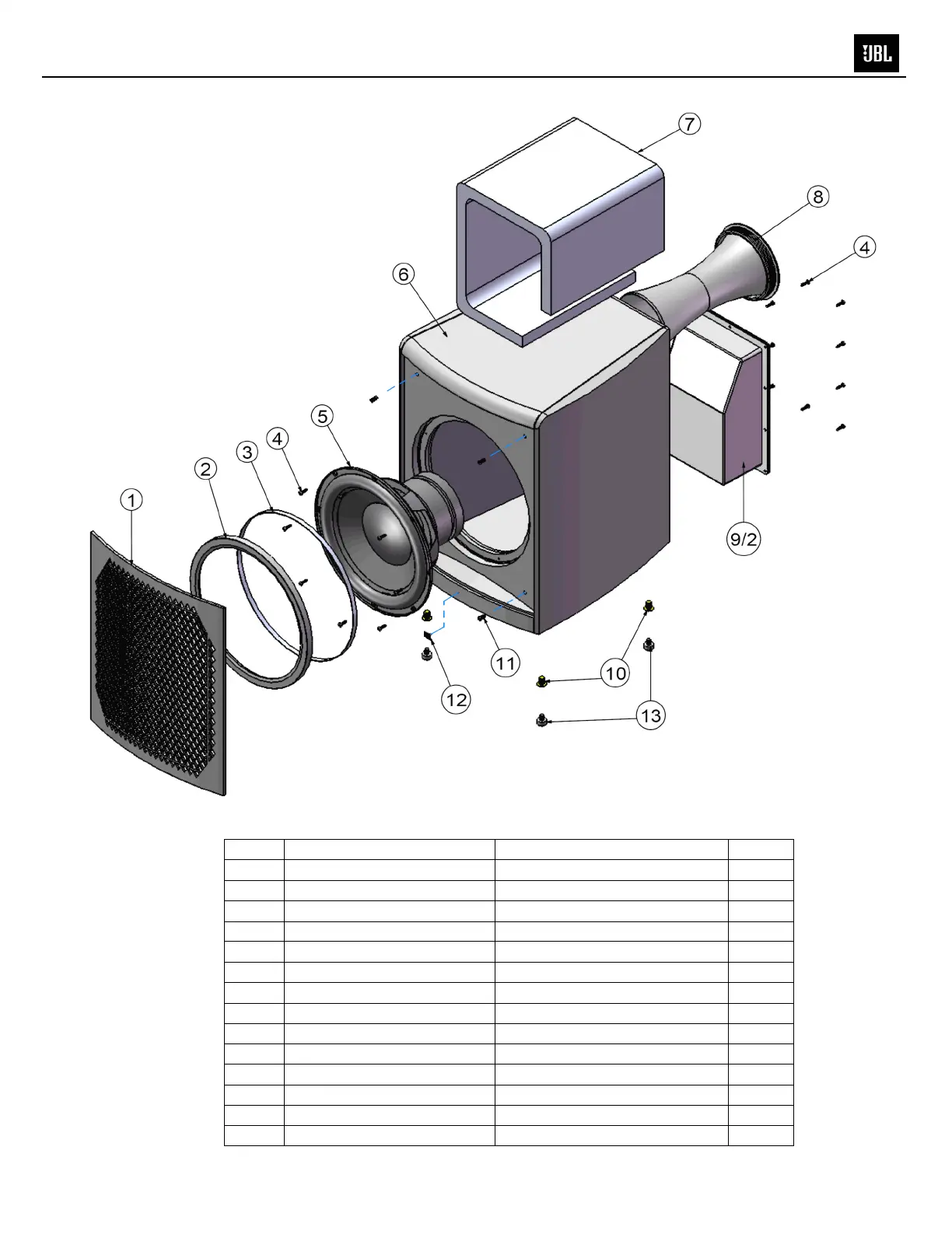

JBL LS Series - Exploded View and Parts List; Component Breakdown Diagram; Parts Identification List

Item Part Number Description Qty
1 244-120-05321-0BAE Front Grille 1
2 213-120-05163-0BAE Trim Ring 1
3 333-000-05681 Felt Gasket 1
4 352-FM04020D605-E Screw, amplifier 18
5 30PR14FZD-DW01-E 12” Woofer 1
6 Not for Sale LS120P Cabinet 1
7 Not for Sale Damping 1
8 249HIPS-05093-0BAE Port Tube 1
9 Not for Sale LS120P Amplifier 1
10 357-XM08186-E Insert, Copper 4
11 327-010-05037-0BAE Grille Cup 4
12 316-CU-05289-0BAE JBL Logo 1
13 320-RUB-05160-0BAE Rubber Feet 4
8
LS120P
