JBL LSR2328P; LSR2325P; LSR2310SP User Manual

11

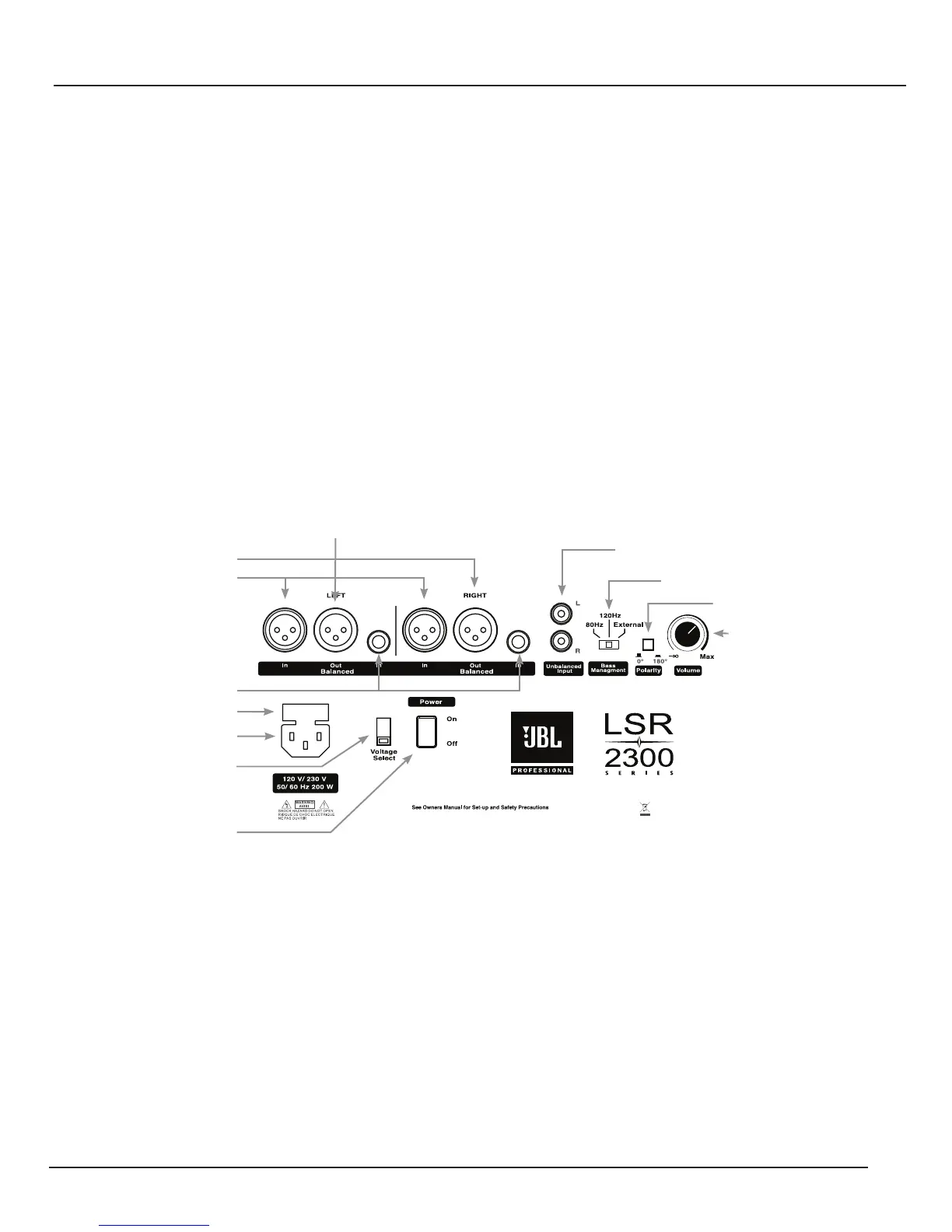

Input Panel
7. XLR Left and Right Inputs
8. ¼" Left and Right Inputs
9. RCA Left and Right Inputs
10. XLR Left and Right Outputs
11. Crossover Frequency Selector – Allows selection of the crossover frequency: 80Hz, 120Hz or using the
External setting enables use of an outboard bass management crossover.
12. Polarity Switch – Enables optional 180 degree reversal of the subwoofer output to optimize the blend of
the subwoofer with the main speakers.
13. Volume Control – Controls the subwoofer level to balance the subwoofer with the system.
14. Power Connector
15. Fuse Holder – Includes a user replaceable fuse and a spare fuse.
16. Voltage Selector – sets the operating voltage for compatibility with the voltage supply in the
country of use.
17. Power Switch – Activates power for the subwoofer
115
Audio Connections
Two Channel Stereo Systems: Connect the Left and Right outputs of the signal sources directly to the Left and
Right Inputs of the LSR2310SP Subwoofer. Then connect the Left and Right Outputs of the Subwoofer to the Left
and Right main speakers.
Using the LSR2310SP in a Surround Sound System – If theLSR2310SP Subwoofer is being used to reproduce
the .1 LFE channel in a surround sound system, connect the .1 LFE signal to either the Left or Right input of the
subwoofer.
Connect Professional +4dBu and -10 dBV signal sources to either the XLR or ¼" input connectors. Connect
consumer -10dBv level equipment to the RCA input connectors. Connect only a single signal source to the Left
Input and a single signal source to the Right Input of the subwoofer using either XLR input connectors, OR ¼"
input connectors OR the RCA input connectors. Do not connect multiple signal sources to either the Left inputs of
the subwoofer or multiple input sources to the Right inputs simultaneously.
7
8
9
10
11
12
13
14
15
16
17
