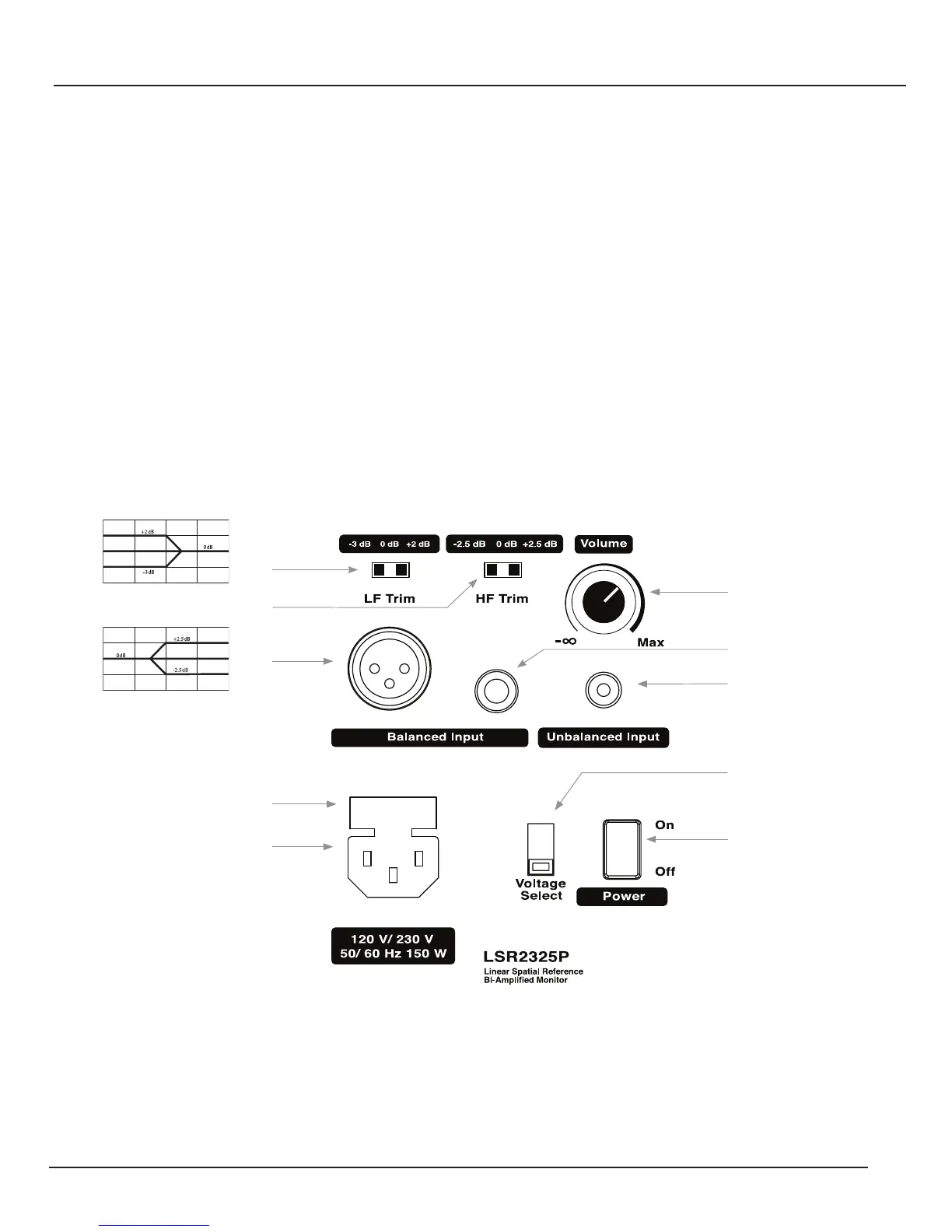

Input Panel
8. XLR Input – Connect professional equipment using an XLR connector.
9. ¼" Input - Connect equipment using a ¼" balanced or unbalanced connector.
10. RCA Input – Connect consumer equipment using an RCA input.
11. Volume Control – Use this control to set the maximum listening level.
12. High Frequency Trim – Allows boost or cut of High Frequency output by +/- 2.5dB
13. Low Frequency Trim – Allows a 2 dB boost of low frequency output by or 3 dB attenuation of
low frequency output.
14. Power Connector –
15. Fuse Holder – Includes a user replaceable fuse and a spare fuse.
16. Voltage Selector – sets the operating voltage for compatibility with the voltage supply in the country of use.
17. Power Switch – Activates power for the system.
Audio Connections
Connect Professional +4dBu and -10 dBV signal sources to either the XLR or ¼" input connectors. Connect
consumer -10dBV level equipment to the RCA input connectors. Connect only a single signal source to the speaker
using either XLR input connector, OR the ¼" TRS input connector OR the RCA input connector. Do not connect
multiple signal sources to multiple inputs of the same speaker simultaneously.
8
9
10
11
12
13
14
15
16
17
LF Trim
HF Trim
