Section 4: LSR2328P and LSR2325P Bi-amplied Studio Monitors

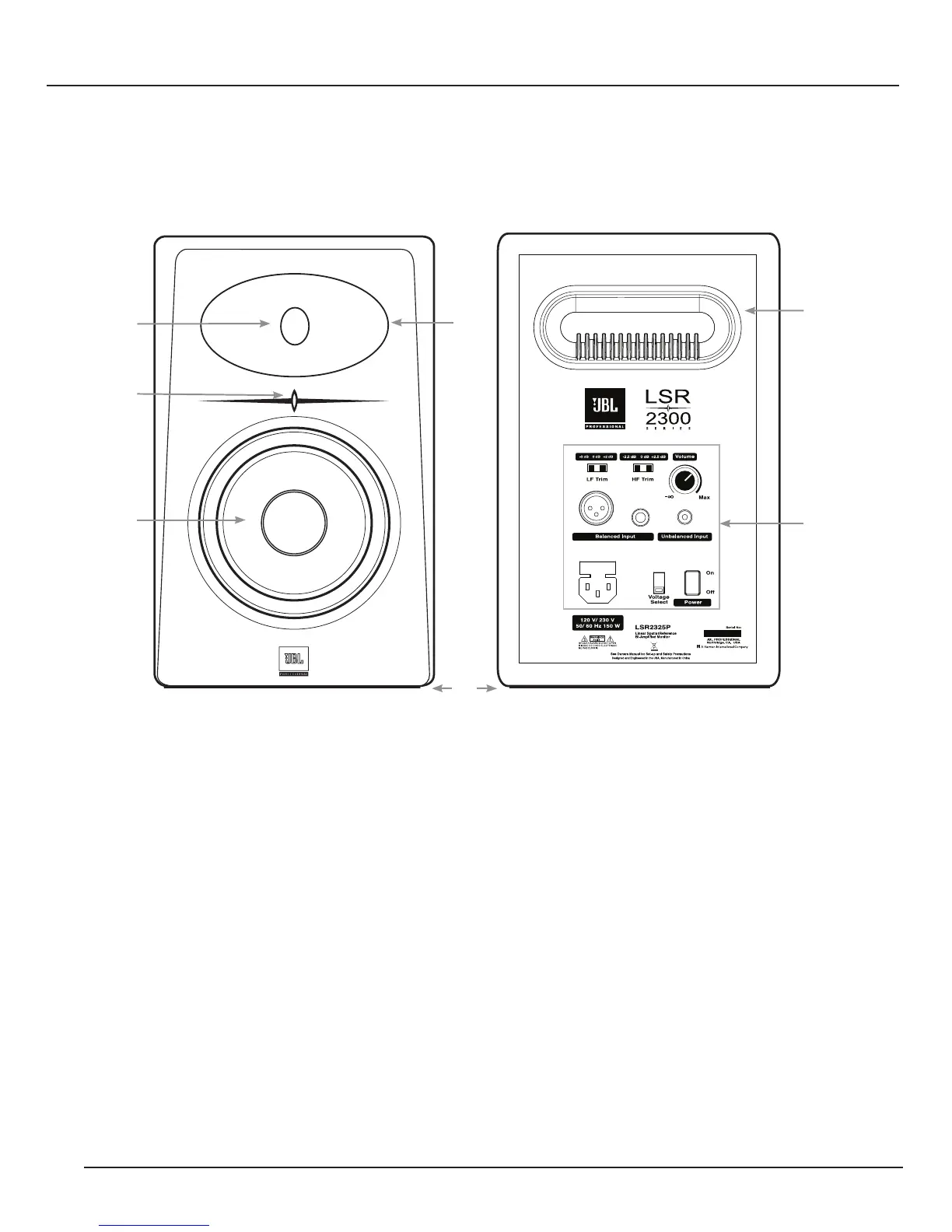

Front View Back View
Features
1. High Frequency Transducer “Tweeter” – Reproduces high frequency signals.
2. EOS Elliptical Oblate Spheroidal Wave Guide with Elliptical Tweeter Aperture – Ensures the combination
of direct and reected sound arriving at the mix position is neutral and accurate. The Elliptical Aperture
opening in the wave guide around the tweeter optimizes high frequency performance above 9 kHz.
3. Low Frequency Transducer “Woofer” – Reproduces low frequency content of the input signal.
4. Power Indicator – Illuminates when power is connected and the Power Switch is set to ON.
5. Low Frequency Port – Works in conjunction with the low frequency transducer to provide accurate low
frequency performance and air ow to cool the internal electronics.
6. Input Panel – Includes input connectors, power connector and user controls.
7 Isolation Pad – The speaker is equipped with a foam pad on the bottom surface to provide acoustic
isolation from the supporting surface and increase stability when the speaker is placed on a speaker
stand or console top.
5
6
2
1
4
3
7
