26
CAT5 cable
Network
Terminator
Network
Terminator
CAT5 cable






SUBWOOFERLEFT SPEAKER RIGHT SPEAKER

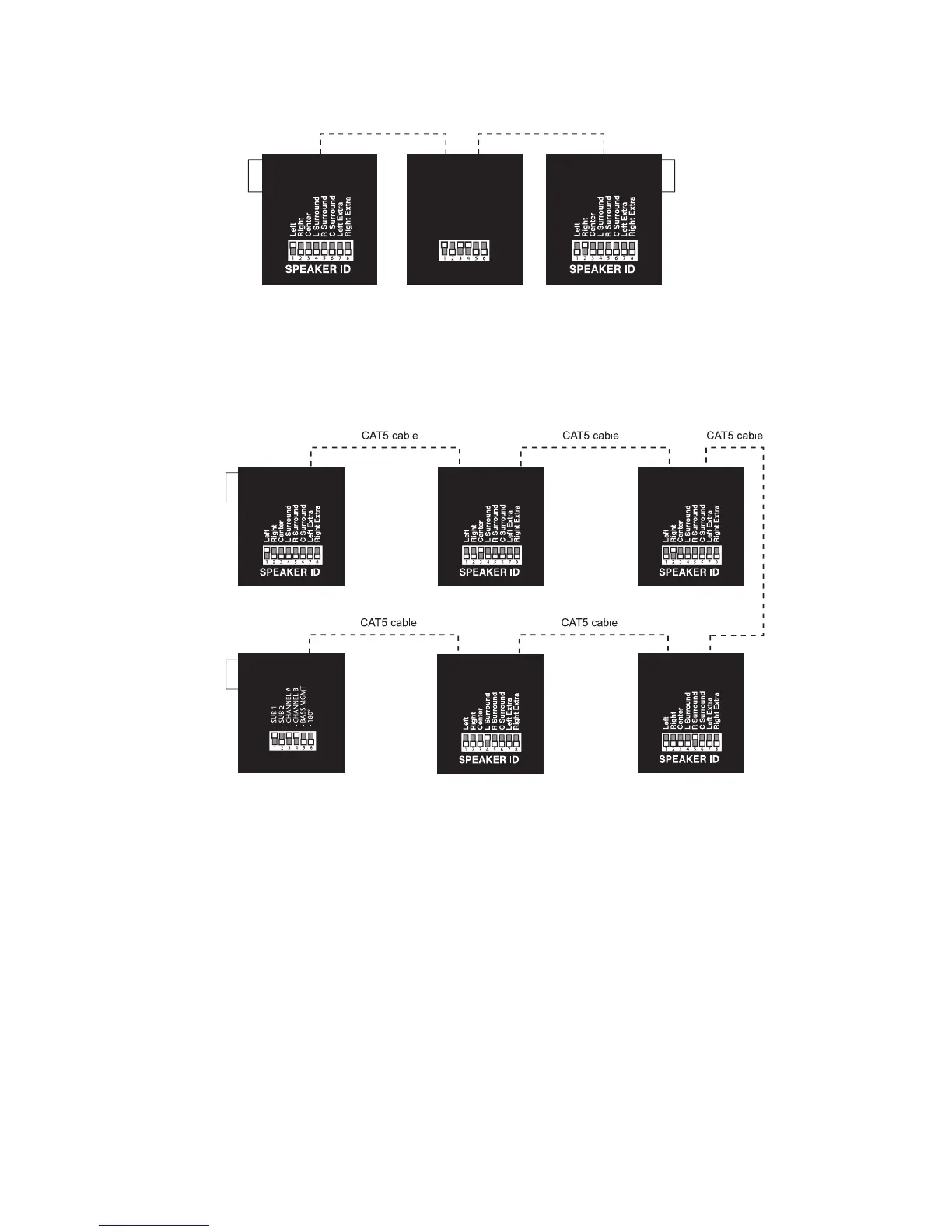

Networking interconnections and DIP switch settings for stereo use
with LSR4328P and LSR4326P studio monitors
SUBWOOFER
LEFT SPEAKER CENTER SPEAKER RIGHT SPEAKER
LEFT SURROUND
SPEAKER
RIGHT SURROUND
SPEAKER
Network
Terminator
Network
Terminator
Networking interconnections and DIP switch settings for surround use
with LSR4328P and LSR4326P studio monitors
Reference - Network Connections and DIP Switch Settings
