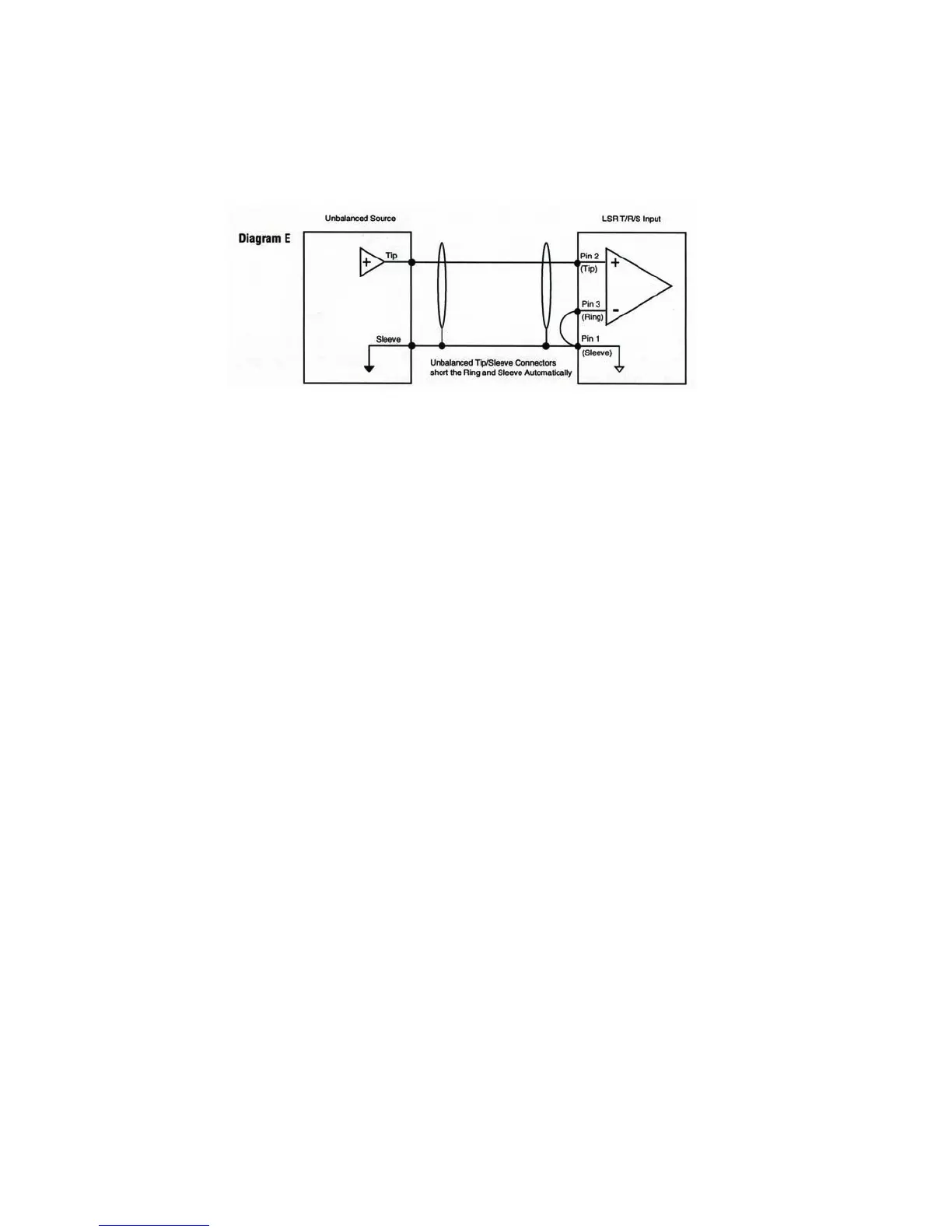

Diagram E details the connections using unbalanced cable and Tip/Sleeve connections to the 1/4” or
XLR input.
Digital Audio Connections
Always use high-quality cable designed for use with digital equipment.
We recommend the use of 110 ohm balanced cabling for AES/EBU connections, with a maximum cable
length of 100 meters (approximately 330 feet). 75 ohm cabling should be used for S/PDIF connections,
with a maximum cable length of 10 meters (approximately 33 feet).
