Important notes
Connecting the Speakers and Power Cables
Before you wire your system, disconnect your boat battery's positive (+) cable.
This helps prevent damage in case of a short. When you complete the wiring,
reconnect the battery cable and test your marine stereo. When connecting your
marine stereo's black ground wire, be sure to connect the wire to a metal part of
your boat or preferably to the negative (-) terminal of the boat battery.
POSITIVE
CHASSIS
NEGATIVE
CHASSIS
Prior to the final installation, perform a sound check. If high distortion or intermittent
sound is experienced, it is possible that the wiring from the receiver to the boat's electrical
system is poor or that the battery needs recharging.
If the battery and its charging circuit are OK, then rewire the yellow fused wire of the
player directly to the positive terminal (+) of the boat battery.
Marine accessory shops stock the connector blocks and the 10 Amp cable that may
be necessary for extending the fuse wire connection.
Make sure that the black wire on the wiring harness is connected to a good ground
point on the boat. If the chassis of the boat is used as a grounding point, make sure
that the surface is scraped clean of paint before attaching the wire to it.
It is preferable to connect the black ground wire directly to negative terminal (-) of
the boat battery.

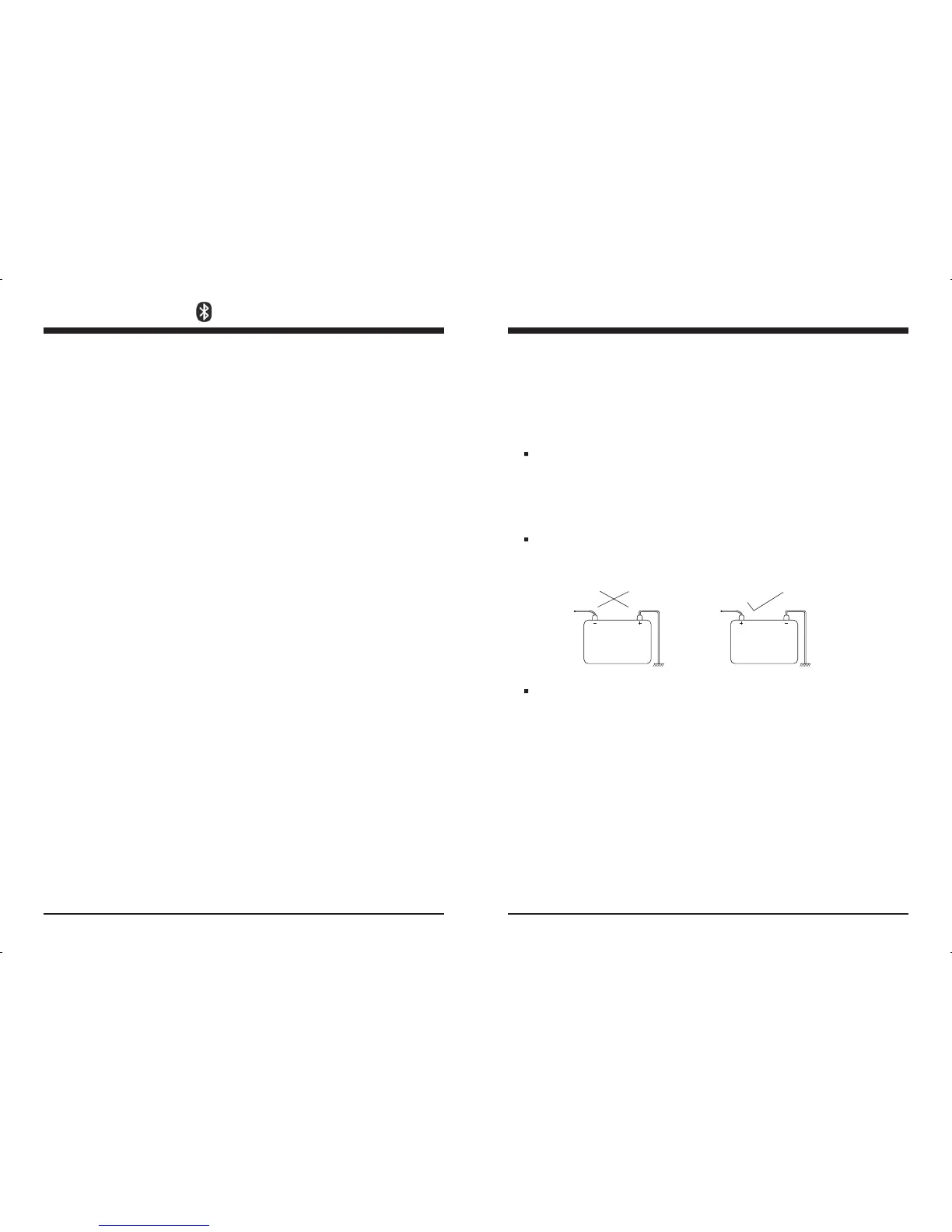

This model is only suitable for use in boats which have a Negative ground system,
e. g. : the negative terminal of the boat battery is connected to the chassis.
Grounding
Warning: polarity...
12
Bluetooth Operation
Your media device must incorporate the Bluetooth option in order to stream music.
1) Press and hold MOD button for 2 seconds on the stereo until Pairing appears
and the Bluetooth icon begins to blink.
2) Next, go to settings on the Bluetooth device and turn the Bluetooth option to “on”.
3) Pick the “JBL-BT” option on your Bluetooth enabled device (please note that
if you are prompted for a password, the code entered will be “1234”.
4) Confirm and establish the connection on your Bluetooth Device. Once finished,
it would display Bluetooth Icon and PAIR OK on the display.
5) If you want to exit pairing mode, press MOD button briefly while pairing,
then it will show PAIR CLR on the display.
6) If the pairing failed, it would display PAIR FAIL on the display for 3 seconds.
- Each Bluetooth Device has distinct menu so you may need to refer to your
manufactures instruction for the correct procedure on how to connect a new
Bluetooth device.
- Please retry a pairing instruction if JBL-BT does not appear on your Bluetooth
Device.
1) When pairing between the stereo and bluetooth device occurs, the Bluetooth
icon will stop blinking.
2) To disconnect Bluetooth Link
While in BT MUSIC mode, press and hold MOD button for 2 seconds to
disconnect the Bluetooth Link, the bluetooth icon will blink.
3) To connect the Bluetooth Link
Once you switch back to BT MUSIC mode, it blinks Bluetooth Icon on the
display. Simply press Preset 4 button to re-connect the last paired Bluetooth
Device automatically.
1) Once successful connection occurs, in most cases, the music will play
automatically. In rare cases, you may have to activate the play function on the
media device first.
2) During BT Music playing, you could select the previous or next track by pressing
TUN UP or Down button (15) on the Stereo or operate via your Bluetooth Device.
3) To Pause the music, press PAUSE button (5) briefly; Press it again to resume
playback.
1. Pairing your Stereo and Bleutooth Device
NOTE:
2. Bluetooth connection and disconnection
3. To listen Bluetooth Music
