JBL Partybox On-The-Go User Manual

DISASSEMBLY INSTRUCTIONS and PCBAS
11
7
8
2
1
4
5
3
6
9

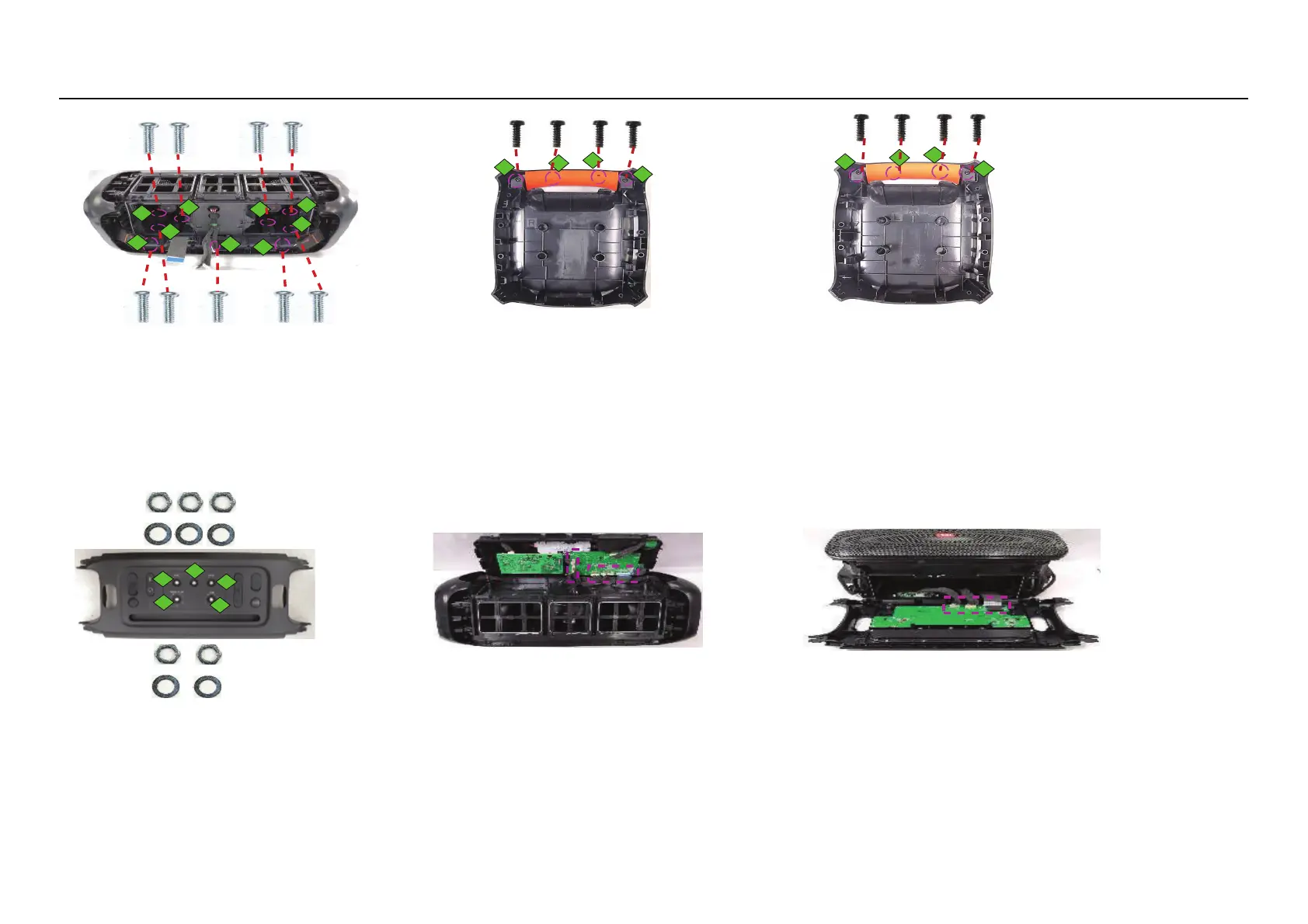

Figure 7
Dismantling 9PCS screws from top cover
1
2
3
4
1
2
3
4
1
3
2
4
5
Figure 8
Take 4pcs side rubber from right side cover
and open screws
Figure 9
Take 4pcs side rubber from left side cover
and open screws
Figure 10
Take the top cover nut washev
Figure 11
Dismantling of main PCBA
OPen the main PCBA screws
Figure 12
Dismantling of key PCBAS
OPen the key PCBAS screws

JBL Partybox On-The-Go Specifications

General

Wi-Fi	No
AUX in	Yes
Bluetooth range	10 m
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Product type	-
Product color	Black
Product design	Rectangle
Volume control	Rotary
Battery type	Built-in battery
Battery capacity	2500 mAh
Battery life (max)	6 h
AC adapter frequency	50/60 Hz
Battery recharge time	3.5 h
AC adapter input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Frequency range	50 - 20000 Hz
RMS rated power	100 W
Signal-to-Noise Ratio (SNR)	80 dB
Cables included	AC
Quantity per pack	2 pc(s)
Package depth	314 mm
Package width	600 mm
Package height	367 mm
Package weight	10150 g
Woofer diameter (imperial)	5.25 \
Tweeter diameter (imperial)	1.75 \
Recommended usage	Universal

Weight and Dimensions

Depth	224 mm
Width	489 mm
Height	244.5 mm
Weight	7500 g
