JBL Partybox On-The-Go User Manual

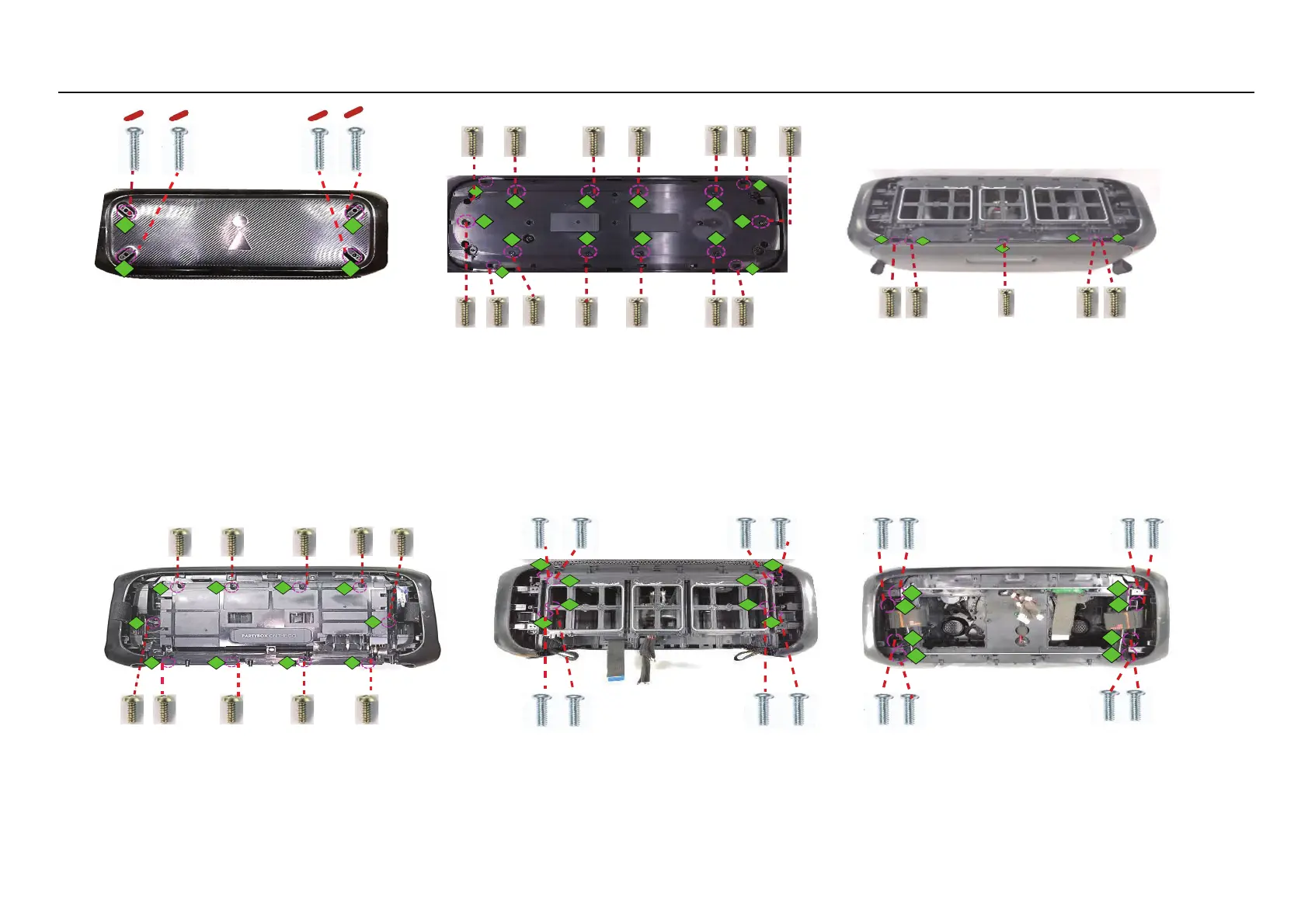

Figure 1
Take 4pcs rubber feet bottom apart from
bottom cover and open the screws.
1
2
3
4
1
2
3
4
5
67
8
9 10
11
12
13
14
1
2
3
4
5
6
7
8
9
0
1
1
2
3
4
5
68
7
5
3
1
4 2
Figure 2 Figure 3
Disassembly the 5pcs screw from the
leather back shell and open.
Figure 4
Disassembly the rear cover 10pcs screw.
Figure 5
Disassembly 8PCS screws from left and right side covers.
Figure 6
Disassembly 8PCS screws from left and right side covers.
Disassembly the bottom 14pcs screw.
3
2
1
4
7
6
5
8
DISASSEMBLY INSTRUCTIONS
10

JBL Partybox On-The-Go Specifications

General

Wi-Fi	No
AUX in	Yes
Bluetooth range	10 m
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Product type	-
Product color	Black
Product design	Rectangle
Volume control	Rotary
Battery type	Built-in battery
Battery capacity	2500 mAh
Battery life (max)	6 h
AC adapter frequency	50/60 Hz
Battery recharge time	3.5 h
AC adapter input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Frequency range	50 - 20000 Hz
RMS rated power	100 W
Signal-to-Noise Ratio (SNR)	80 dB
Cables included	AC
Quantity per pack	2 pc(s)
Package depth	314 mm
Package width	600 mm
Package height	367 mm
Package weight	10150 g
Woofer diameter (imperial)	5.25 \
Tweeter diameter (imperial)	1.75 \
Recommended usage	Universal

Weight and Dimensions

Depth	224 mm
Width	489 mm
Height	244.5 mm
Weight	7500 g
