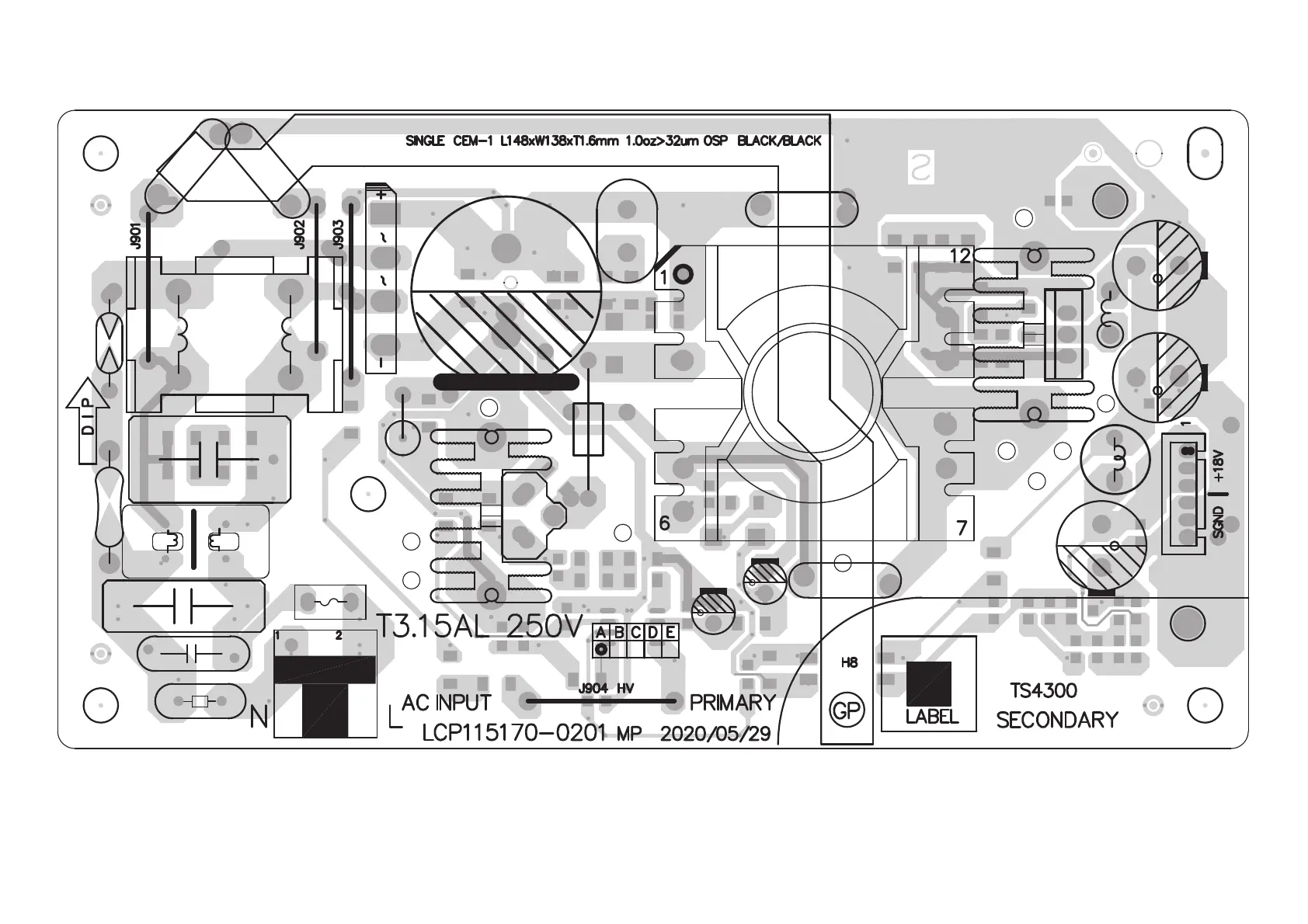

Layout Diagram TOP view-PSU PCBA
20
C915
H902
D905
CE901
G902
G901
FB903
TVR901
T901
R921
Q901
NTC901
LF902
LF901
L901
H901
FB902
F901
CY902
CY901
CN902
CN901
C917
C908
C904
C905
BD901
CX901
CX902
CY903
CY904
GT901R936
C919

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JBL Partybox On-The-Go and is the answer not in the manual?

JBL Partybox On-The-Go Specifications

General IconGeneral
Wi-FiNo
AUX inYes
Bluetooth range10 m
Bluetooth version4.2
Bluetooth profilesA2DP, AVRCP
USB 2.0 ports quantity1
Connectivity technologyWired & Wireless
Product type-
Product colorBlack
Product designRectangle
Volume controlRotary
Battery typeBuilt-in battery
Battery capacity2500 mAh
Battery life (max)6 h
AC adapter frequency50/60 Hz
Battery recharge time3.5 h
AC adapter input voltage100 - 240 V
Power consumption (standby)0.5 W
Frequency range50 - 20000 Hz
RMS rated power100 W
Signal-to-Noise Ratio (SNR)80 dB
Cables includedAC
Quantity per pack2 pc(s)
Package depth314 mm
Package width600 mm
Package height367 mm
Package weight10150 g
Woofer diameter (imperial)5.25 \
Tweeter diameter (imperial)1.75 \
Recommended usageUniversal
Weight and Dimensions IconWeight and Dimensions
Depth224 mm
Width489 mm
Height244.5 mm
Weight7500 g
