Features
1 - EQ BOOST / FLAT: When set in the “FLAT” position, frequency response is linear and unaltered. When
“Boost” is selected, internal equalization is applied to enhance low frequency and high
frequency response. “FLAT” will provide greater accuracy of reproduced music, higher
speech intelligibility and maximum overall level. “BOOST” is particularly useful at lower
levels to enhance pre-recorded music. The feature provides flexibility without the need
to use an external equalizer. The chart (at right) shows the effect of the “BOOST” setting.
MAIN/MONITOR*: Switching between “MAIN” and “MONITOR” optimizes the system for use as either a main
full-range system, or a stage monitor.
SYSTEM SET UP - FULL RANGE MODELS
POWER
LINE SELECT
AC LINE INPUT
100V~ -240V~
50/60 Hz 5A 600W
MIC
LEVEL
LINE
FLAT
BOOST
OUT
IN
OVERLOAD
SIGNAL
ll
INPUTEQ
Designed, Engineered and Assembled in U.S.A.
JBL PROFESSIONAL
Northridge, CA. USA
Equipped with Differential Drive
®
Transducer Technology U.S. PATENT 5,748,760
Other U.S. and foreign patents pending
+
4
d
B
-
1
0
d
B
PRX515
CSA Certification applies to
Amplifier Module Only
CSA Certificated to operate at 120V
~
in Canada
N 1 0 8

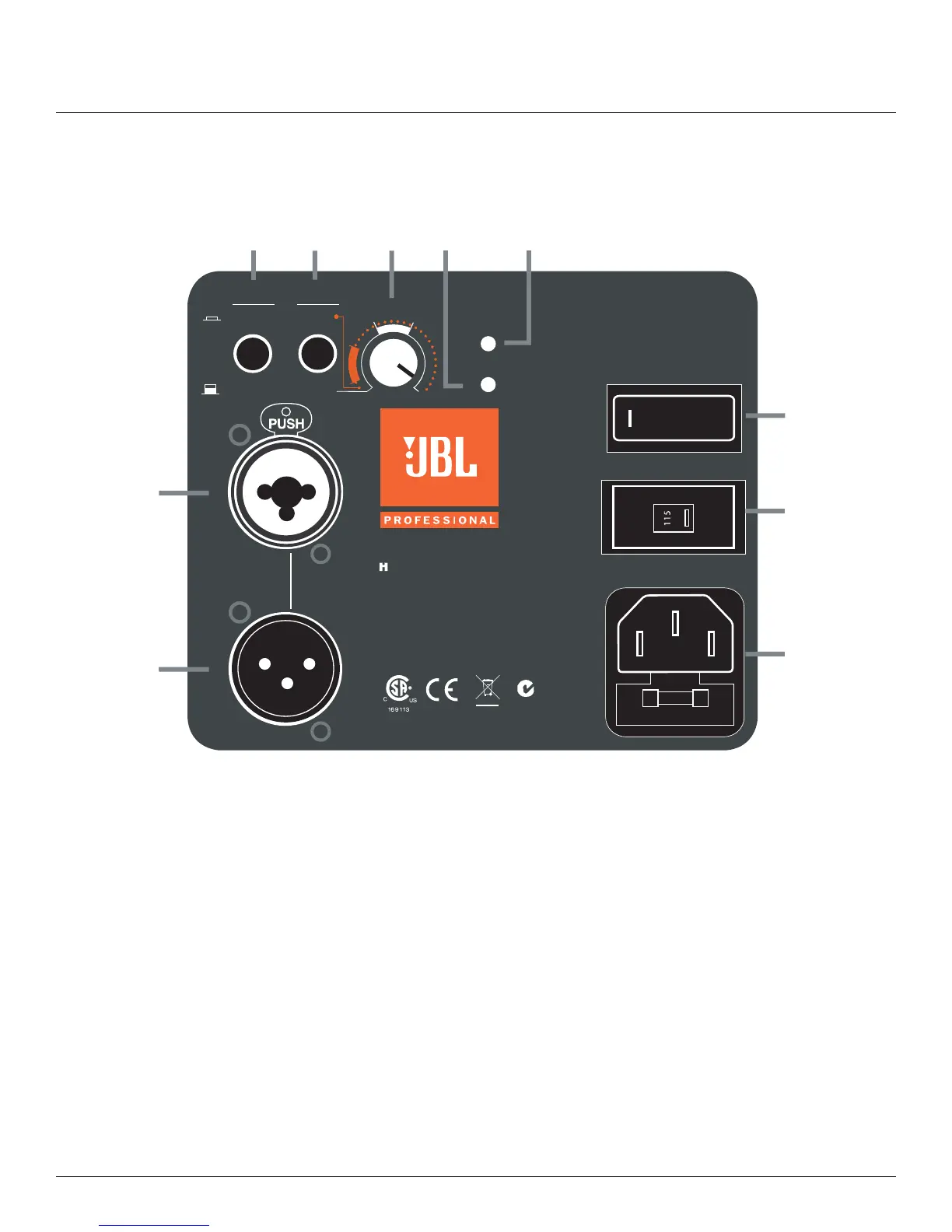

PRX500 Amplifier Input Configuration for
PRX512M, PRX512Mi, PRX515, PRX525 and PRX535 Full-Range Models:
1
234 5
6
7
8
9
10
19
* PRX512M and PRX512Mi only
