Features
1 - XOVER IN / OUT: Pressing this button engages a high-pass filter at 120 Hz. This 4th order active filter allows
a smooth transition between the subwoofer and a full range speaker connected to
the output connector.
2 - POLARITY INVERT: Allows you to set the polarity of the subwoofer to either 0° (no change) or 180° (inverse
polarity). The correct polarity setting will produce the best blend between the subwoofer
and the full-range speaker and the strongest perceived bass response at the listening
position. This is especially useful when the subwoofer is placed at a different distance
from the listening position than the full-range speakers. If the bass response seems weak,
try inverting the polarity.
OUT
IN
POWER
LINE SELECT
AC LINE INPUT
100V~ -240V~
50/60 Hz 5A 600W
LEVEL
0
180
OUT
POLARITY
XOVER
IN
OUT
IN
OVERLOAD
SIGNAL
ll
Designed, Engineered and Assembled in U.S.A.
PRX518S
RIGHTLEFT

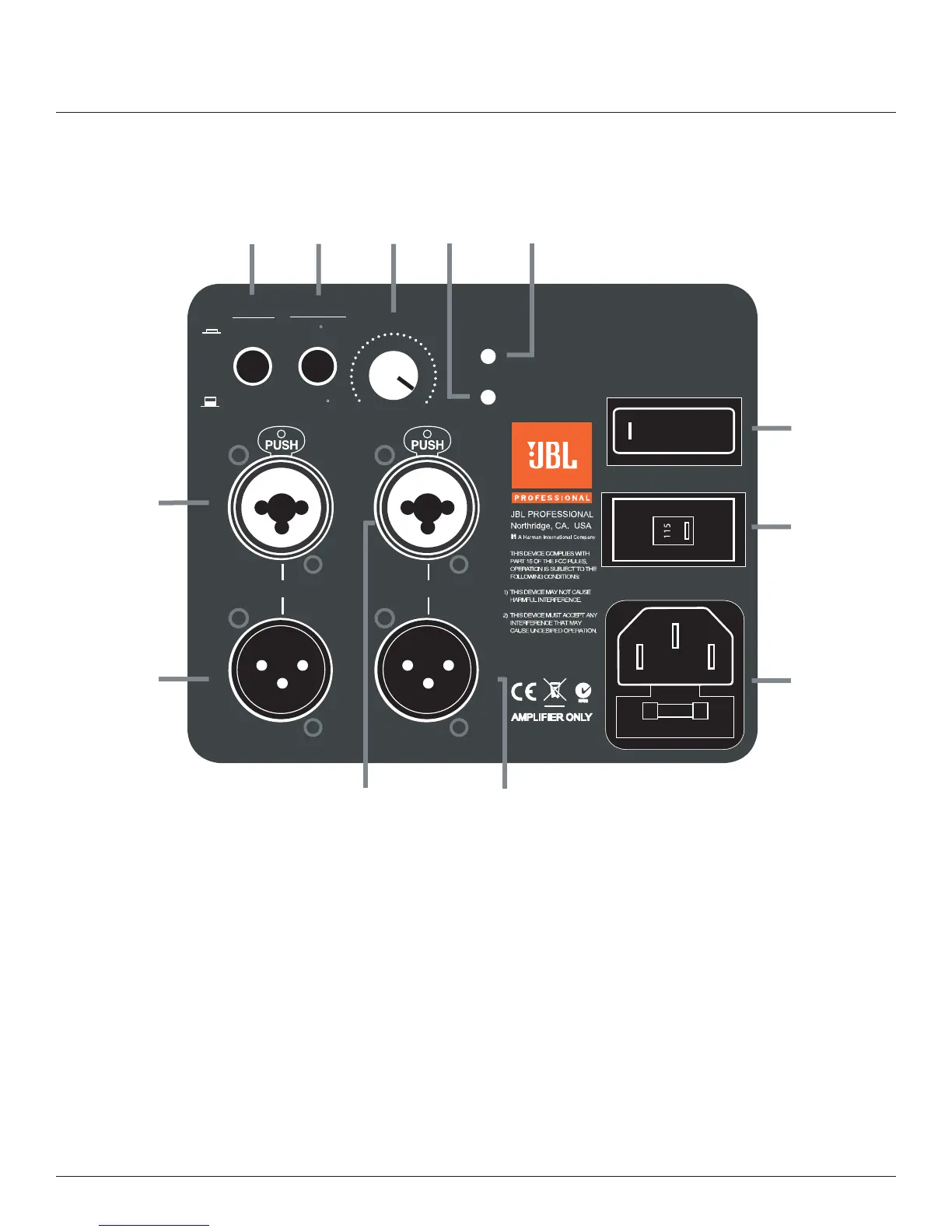

SYSTEM SET UP - SUBWOOFER
PRX500 Amplifier Input Configuration for
PRX518S and PRX718S Subwoofer Models:
1
234 5
9
10
6
7
8
11
12
21
