Additional speakers may be connected (daisy chained together) in mono mode.

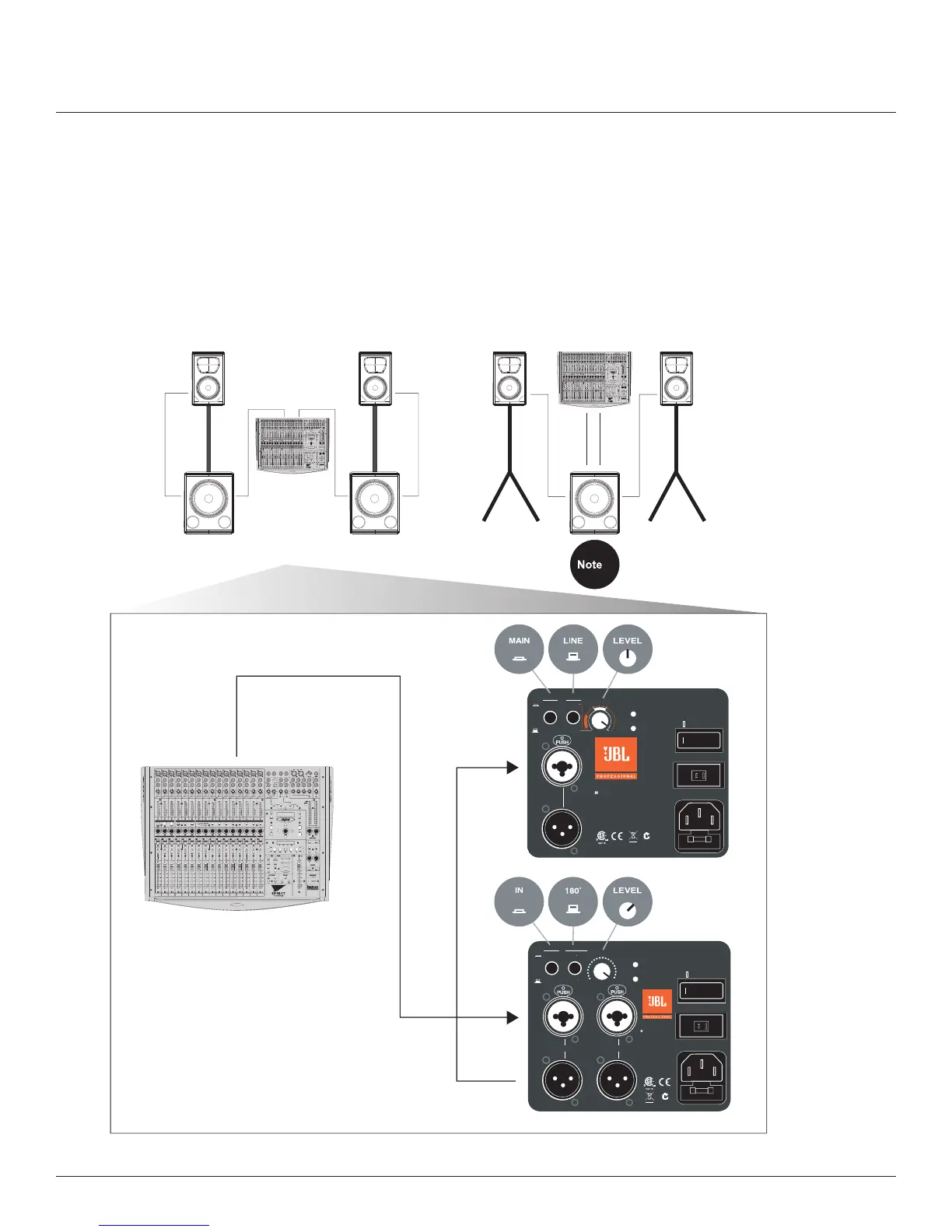

Music Playback Reinforcement With Subwoofer (PRX512M Pole Mounted On A PRX518S)
This is a very powerful, but flexible combination. The subwoofer provides the extra low frequency extension and
also serves as the base for the pole mount. The compact 12 inch satellite system, PRX512M is a perfect match
to the subwoofer.
From the master outputs of your mixer route the wires to the subwoofer first and select the x-over in (high-pass)
option. Route the cable form the subwoofer output connector to the top. Reduce the volume of subwoofers.
Adjust the volume for the top to desired levels and match the subwoofer volume to achieve desired results.
Designed, Engineered and Assembled in U.S.A.
POWER
LINE SELECT
AC LINE INPUT
100V~ -240V~
50/60 Hz 5A 600W
0
LEVEL
180
OUT
IN
OUT
IN
OVERLOAD
SIGNAL
JBL PROFESSIONAL
Northridge, CA. USA
l
LEFT
RIGHT
XOVER
POLARITY
PRX518S
CSA Certification applies to
Amplifier Module Only
CSA Certificated to operate
T5AL250V
N 1 0 8
at 120V ~ in Canada
POWER
LINE SELECT
AC LINE INPUT
100V~ -240V~
50/60 Hz 5A 600W
MIC
LEVEL
LINE
MONITOR
MAIN
OUT
IN
OVERLOAD
SIGNAL
l
INPUTEQ
Designed, Engineered and Assembled in U.S.A.
JBL PROFESSIONAL
Northridge, CA. USA
Equipped with Differential Drive
®
Transducer Technology U S. PATENT 5,748,760
Other U.S. and foreign patents pending
+
4
d
B
-
1
0
d
B
PRX512M
CSA Certification applies to
Amplifier Module Only
CSA Certificated to operate at 120V
~ in Canada
T5AL250V
N 1 0 8
3
Single subwoofer
application in stereo
mode (see page 19).
PRX518S
Right Main Output
PRX512M
