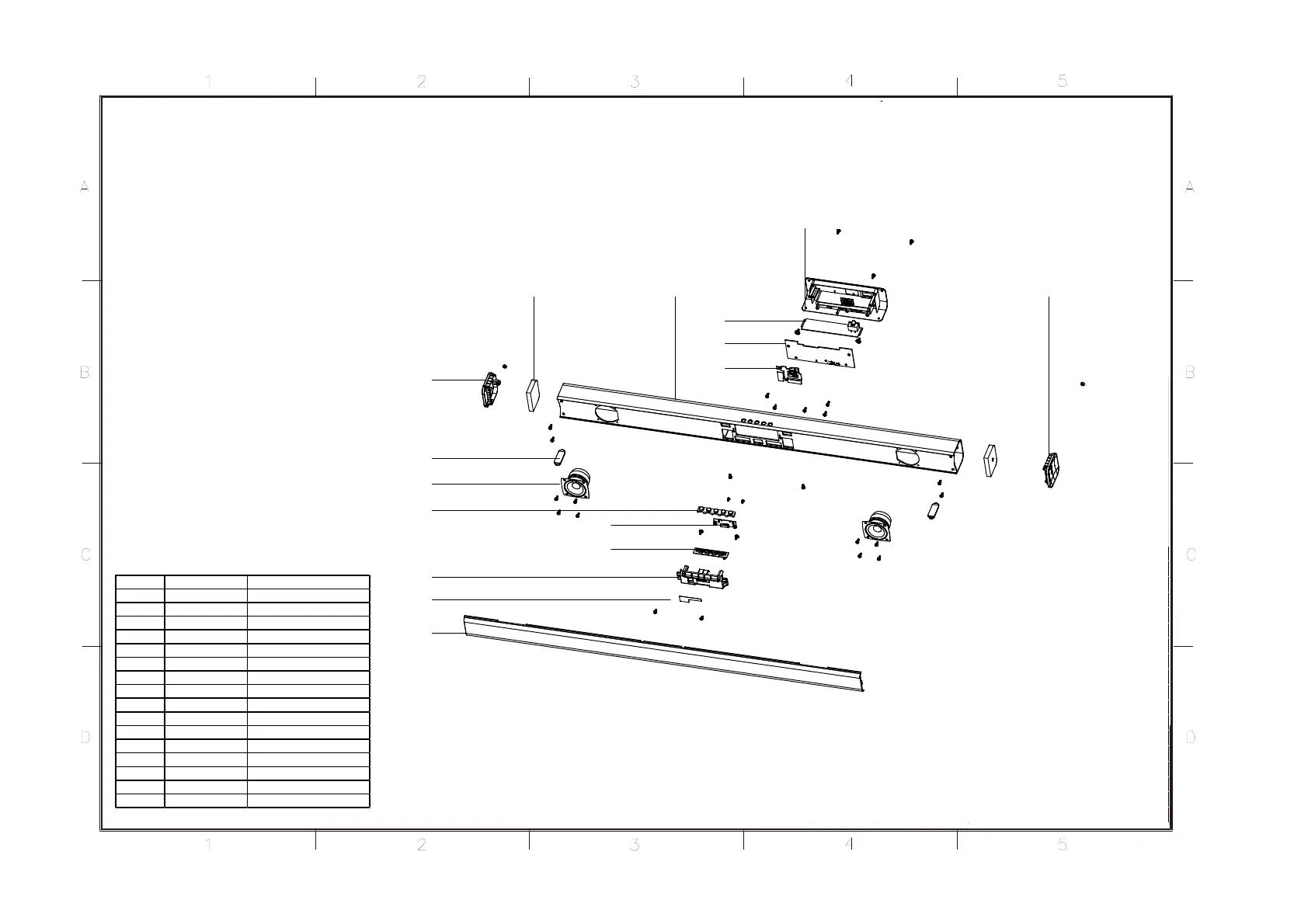

JBL SB130 - Mechanical Exploded View; Soundbar Exploded View

Soundbar Exploded View
5-1 5-1
M01
M02
M03
M04
E01
E02
M05
M06
M07
M08
M09
E03
E04
M10
M12
M11
POSITION PART NUMBER PART NAME
M01 201004569 LEFT SIDE COVER
M02 204001978 EVA PAD
M03 201004572 PC TUBE
M04 201004543 REAR CABINET
M05 200001957 COOLING FIN
M06 201004570 RIGHT SIDE COVER
M07 200001944 IRON GRILL
M08 204003560 INDICATOR FILTER
M09 201004571 PLASTIC KEY CABINET
M10 204003673 SILICONE BOTTON
M11 113000284 SPEAKER 2"8Ω20W
M12 204003556 SILICONE FOOT
E01 403000612 POWER PCBA
E02 404002447 MAIN PCBA
E03 402002230 KEY PCBA
E04 404002445 LED PCBA
