JBL SUB500 - Exploded View Diagram

SUB500 Amplifier
Not For Sale
SUB500 Cabinet
Not For Sale
10" Woofer DCR=3.4Ω
25MF12DZB-DW01-E
Rubber Foot Base (4)
321-
RUB-00009-E
Foot Screw (4)
352-HM04030D500-E
Main Body Plastic Foot (4)
321-ABS-00008-E
Port Tube
249-ABS-0017
5-E
Woofer & Amplifier Screw (15)
352-AM04020D210-E

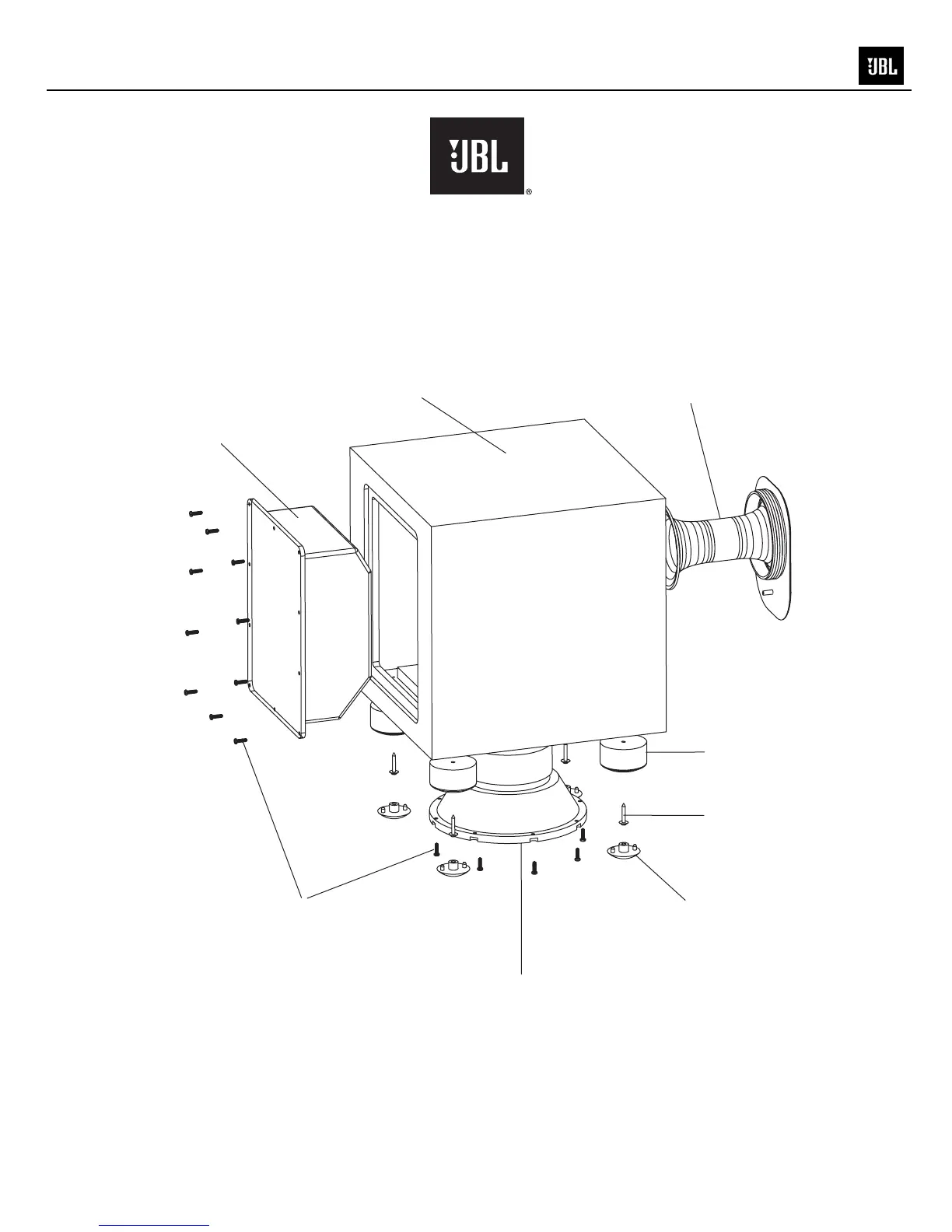

Exploded View
SUB500
8
SUB500 (SCS500.5 Subwoofer)
