REAR-PANEL OVERVIEW

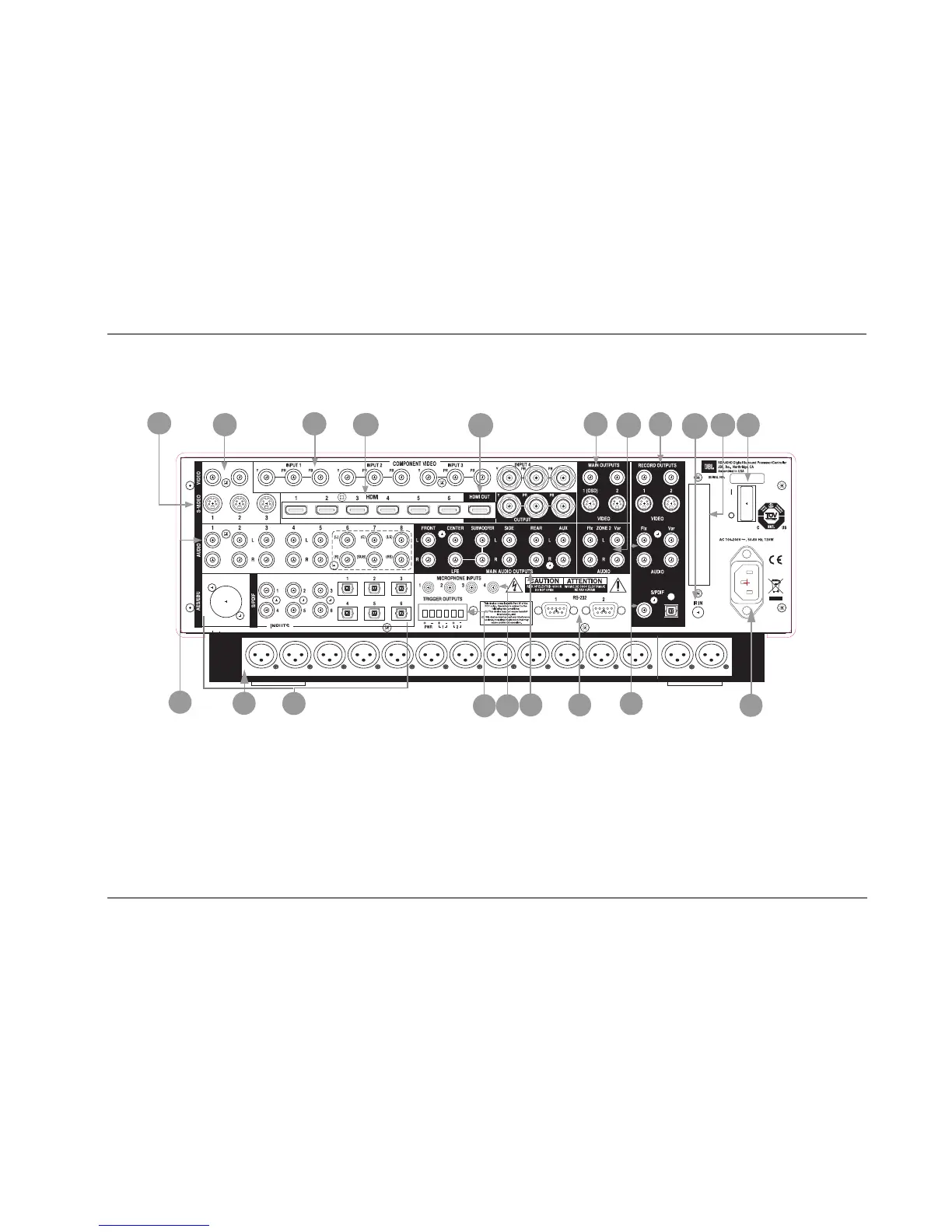

The SDP-40HD is shown below. The numbers in the rear-panel illustrations correspond with the numbered items.
1. S-video Input Connectors
2. Composite Video Input Connectors
3. Component Video Input Connectors
4. HDMI Input Connectors
5. HDMI Output Connector
6. Main Video Output Connectors
7. Zone 2 Audio Output Connectors
8. Record Zone Video Output Connectors
9. IR In Connector
10. Removable Access Panel
11. Power Switch
12. AC Input Connector
13. Record Zone Audio Output Connectors
14. RS-232 Connectors
