JBL SYNTHESIS SDP-40HD - Page 72

Setup JBL
3-32
FRONT L/R FULL, FULL + SUB, 30Hz to 120Hz, THX 80Hz
Assigns a crossover point for the Main Zone audio output
connectors labeled FRONT L/R when a custom speaker setup is
selected. Opens the FRONT L/R SPEAKERS menu to select a
crossover point for the FRONT L/R output connectors.
• Select FULL to send a full-range signal to the front speakers.
Otherwise, select the crossover point closest to the low
frequency rating of the front speakers.
• Select FULL + SUB to send a full-range signal to the front
speakers and duplicate bass frequencies to the SUB L/R
outputs. (The set crossover point of the SUB XOVER parameter
determines the upper range of duplicate bass.) Selecting the
FULL + SUB option can result in excessive bass.

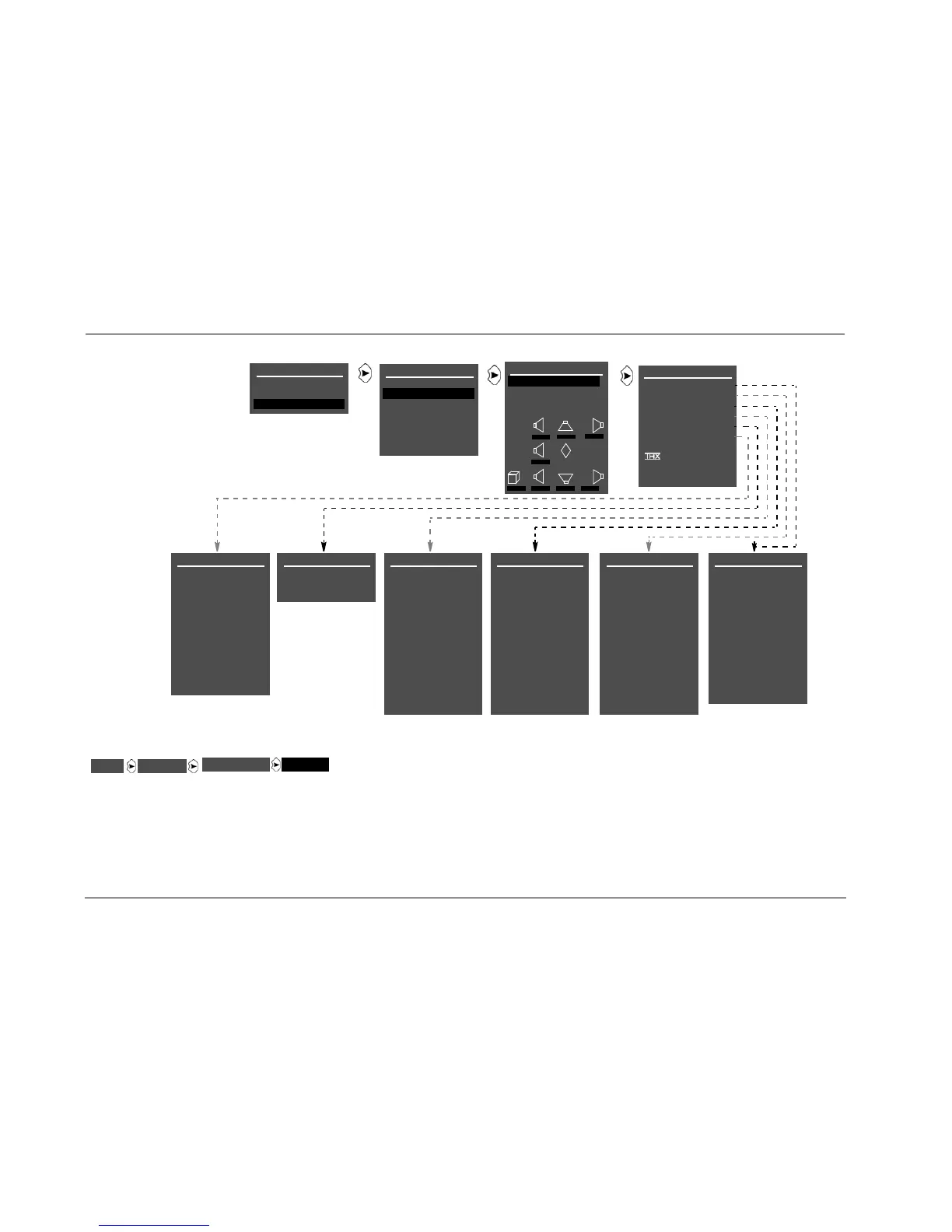

MAIN MENU
