VT X A12 | User Manual
27

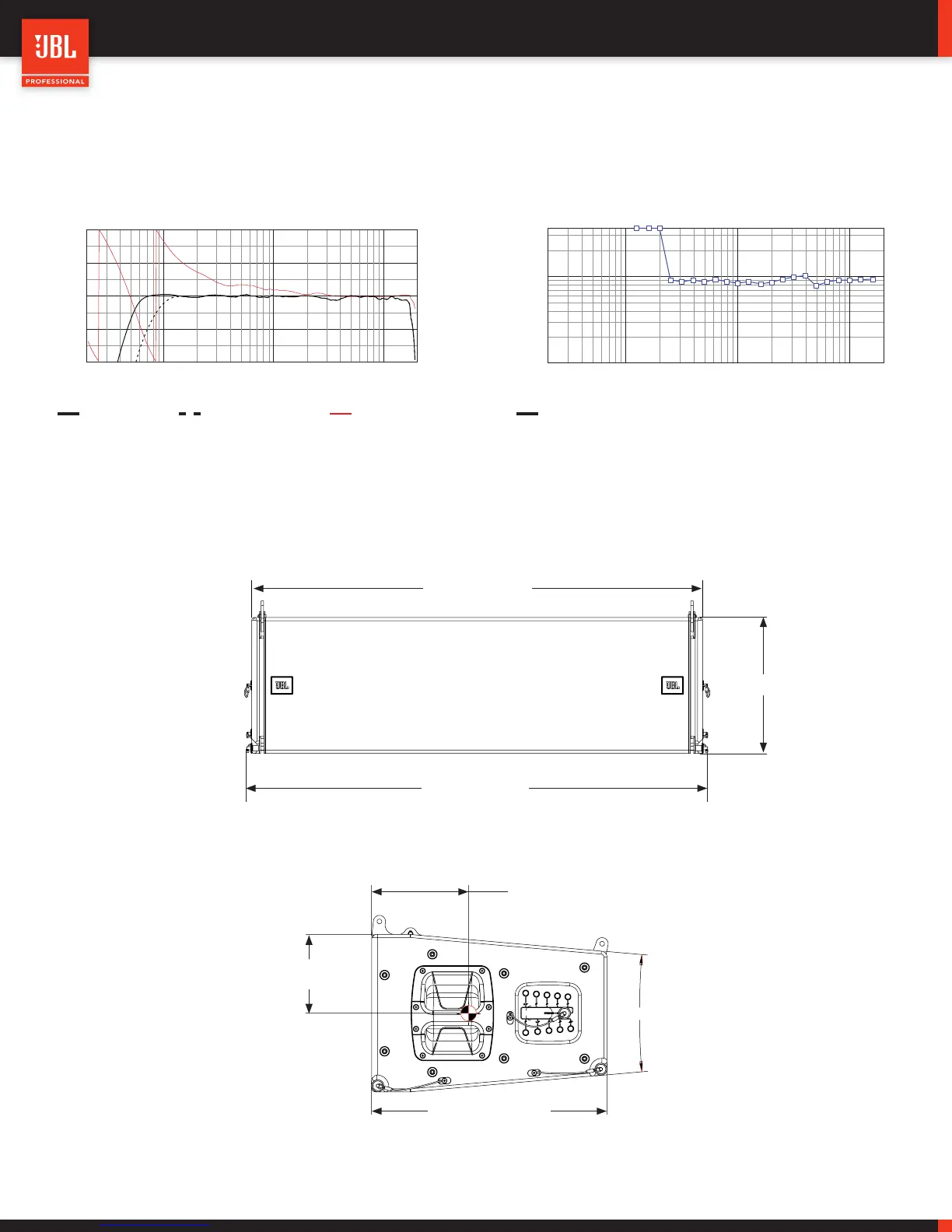

13 - ACOUSTIC MEASUREMENTS
FREQUENCY RESPONSE
20 100 1000 10000 20000
Frequency (Hz)
-20
-10
0
10
20 180
90
0
-90
-180
SPL (dB)
20 100 1000
20000
Frequency (Hz)
10
100
360
-6 dB Beamwidth (degrees)
VTX A12 FL VTX A12 FL 80 VTX A12 Phase
BEAMWIDTH
Horizontal Beamwidth
14 - DIMENSIONS
1091mm (42.99”)
1117mm (44.00”)
330.2mm (13.0”)
202.94mm (7.9”)
10.00°
492.79mm (19.40”)
165.1mm (6.5”)

JBL VTX A12 Specifications

General

Nominal Impedance	8 ohms
Horizontal Coverage	90 degrees
Input Connectors	Neutrik NL4
Type	3-way
LF Driver	12"
MF Driver	4 x 5"
HF Driver	3 x 2"
Enclosure Construction	Plywood
Coverage Pattern	90° horizontal
Drivers	LF: 3 x 12", MF: 4 x 5", HF: 3 x 2"
Enclosure Material	Plywood
