VTX B18 | User Manual

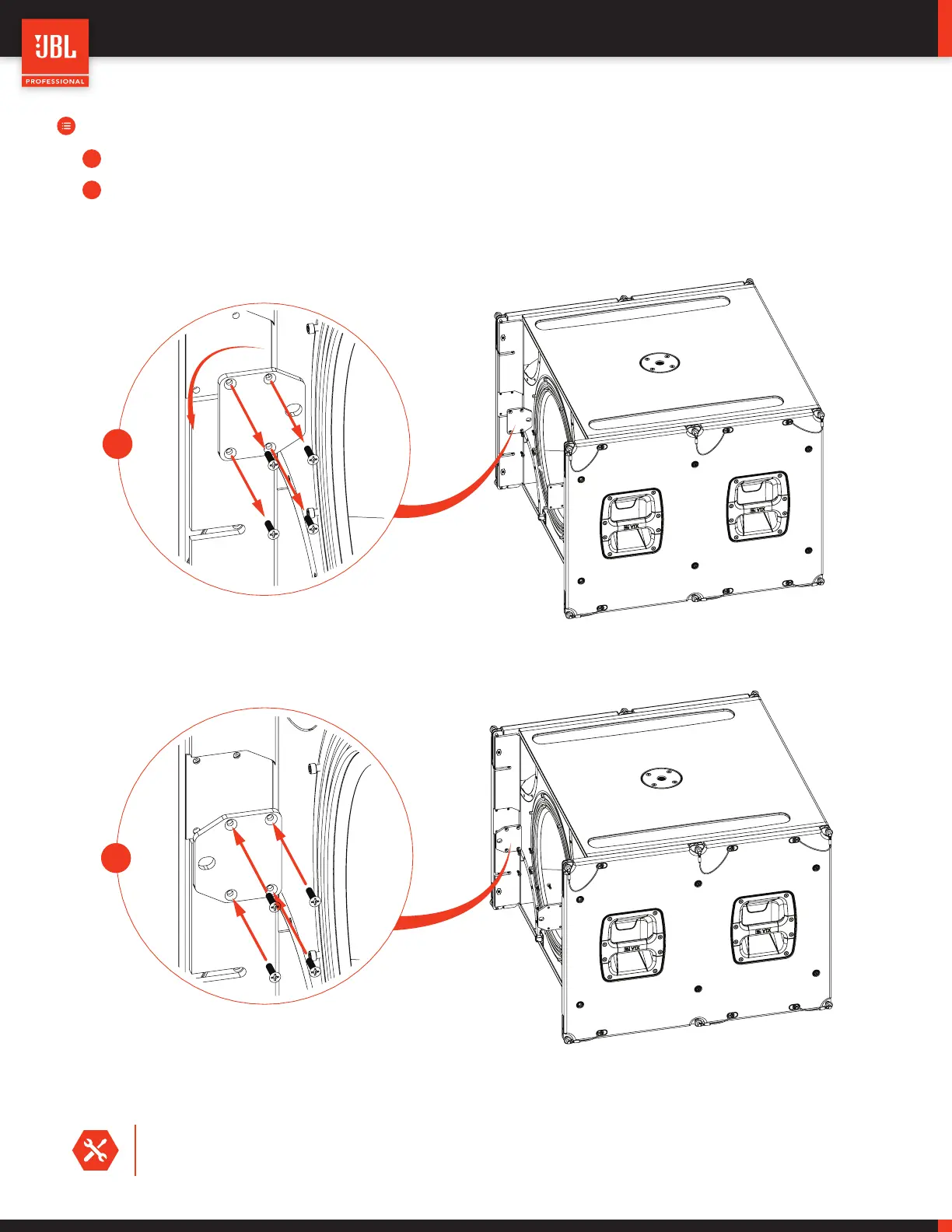

STEPS:
• Remove the 4 x Phillips screws holding each bracket, reverse the orientation of the brackets and reinstall the Phillips screws
• Reconnect the Molex
TM
connector and secure the grill
3
4
4
3
TOOLS REQUIRED: A 4mm HEX key is required to remove the four M6 screws holding the grill on the B18. A Phillips
#2 screwdriver is required for removing the four Phillips screws holding the bracket.
