Section 1-5 - General Information
Service Tools
Tool Detail Reference
1-5-17 1-5-17
9803/3750-05 (1-06-00)

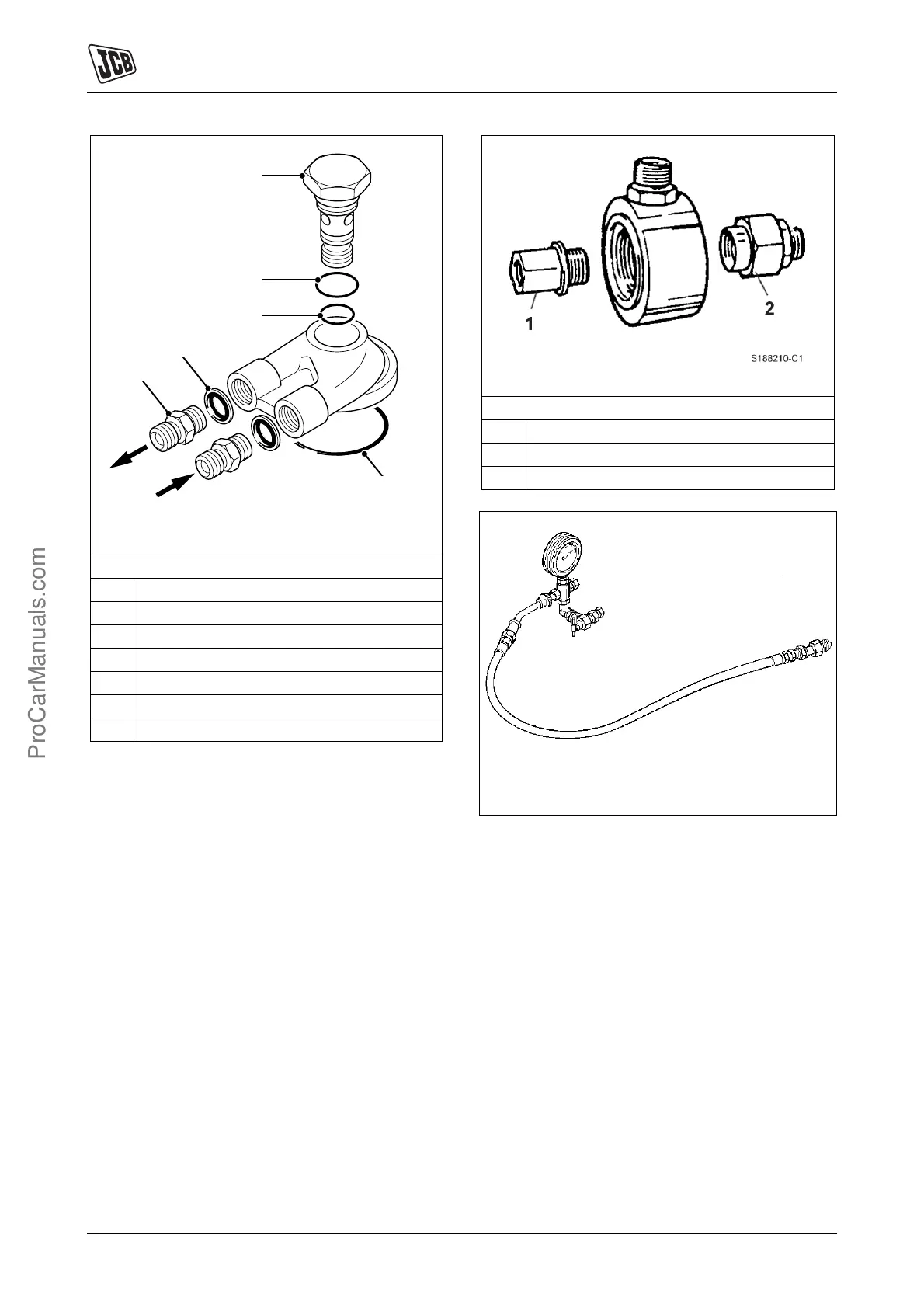

Fig 46. 460/15708 Flow Test Adaptor
Note: Components listed below also required:
Item Description
1 460/15707 Banjo bolt
2 2401/0222 O-ring
3 2403/0110 O-ring
4 2403/0108 O-ring
5 1604/0004 Adaptor - 2 off
6 1406/0018 Sealing washer - 2 off
A313250-C1
1
3
4
2
6
5
Fig 47. 892/00301 Flow Test Adaptor
Note: Components listed as follows also required:
Item Description
1 892/00920 Adaptor
2 892/00302 Adaptor
Fig 48. Nitrogen Charging Kit
892/00948 Charging Kit (without gauge)
892/00949 Gauge
