jcb 8026 CTS - Dimensions

8025 ZTS, 8026 CTS, 8030 ZTS, 8035 ZTS 5
Dimensions
Machine model 8025 ZTS 8026 CTS 8030 ZTS 8035 ZTS
A Overall height (transport position) mm 2470
2470 2470 2475
B Overall length (transport position) mm 4280
4220 4287 4462
C Tailswing mm 750
1225 800 850
D Track width mm 1502 1502 1650 1750
E Superstructure width mm 1550 1550 1650 1656
F Track centres mm 1440 1440 1597 1707
Operating weight* kg 2685 2700 3217 3651
* Standard machine specification, please see data plate for specific machine weight.

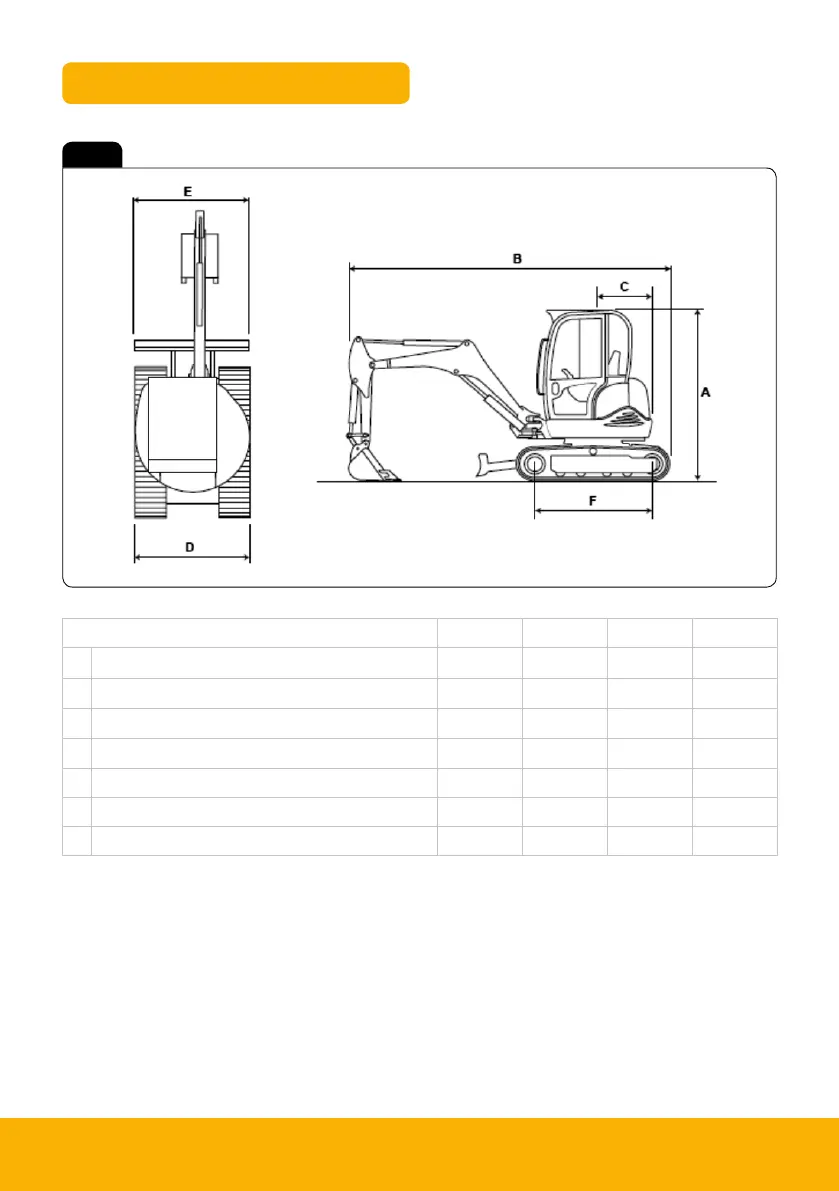

Fig 1
