6 Please see operator manual for full details.

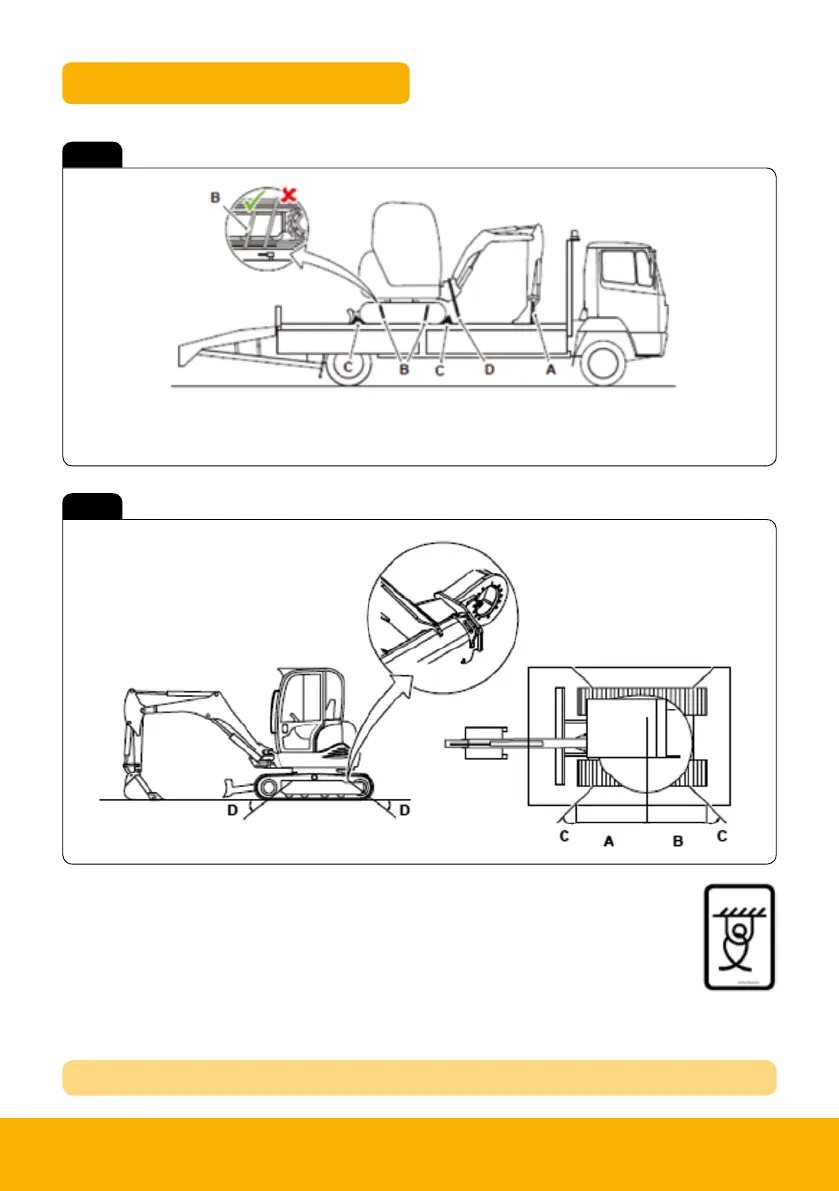

Tie Down Points
Fig 2
Fig 3
A Length = 900 + 100mm
B Length = 950 + 100mm
C Angle = 46˚ ± 7˚
D Angle = 36.5˚ ± 6.5˚
Lashing capacity 30,000N
Minimum lashing breaking force 50,000N
Tie down position decal.
REFER TO OPERATORS MANUAL TRANSPORTING MACHINE
A Securing strap (bucket)
B Securing strap (front and rear of the two track legs
C Skids
D Securing strap (kingpost
