14 - 5
Section E
Hydraulics
9803/6400
Section E
14 - 5
Issue 2*
Hydraulic Pump JS200, JS240
*
Assembly (continued)

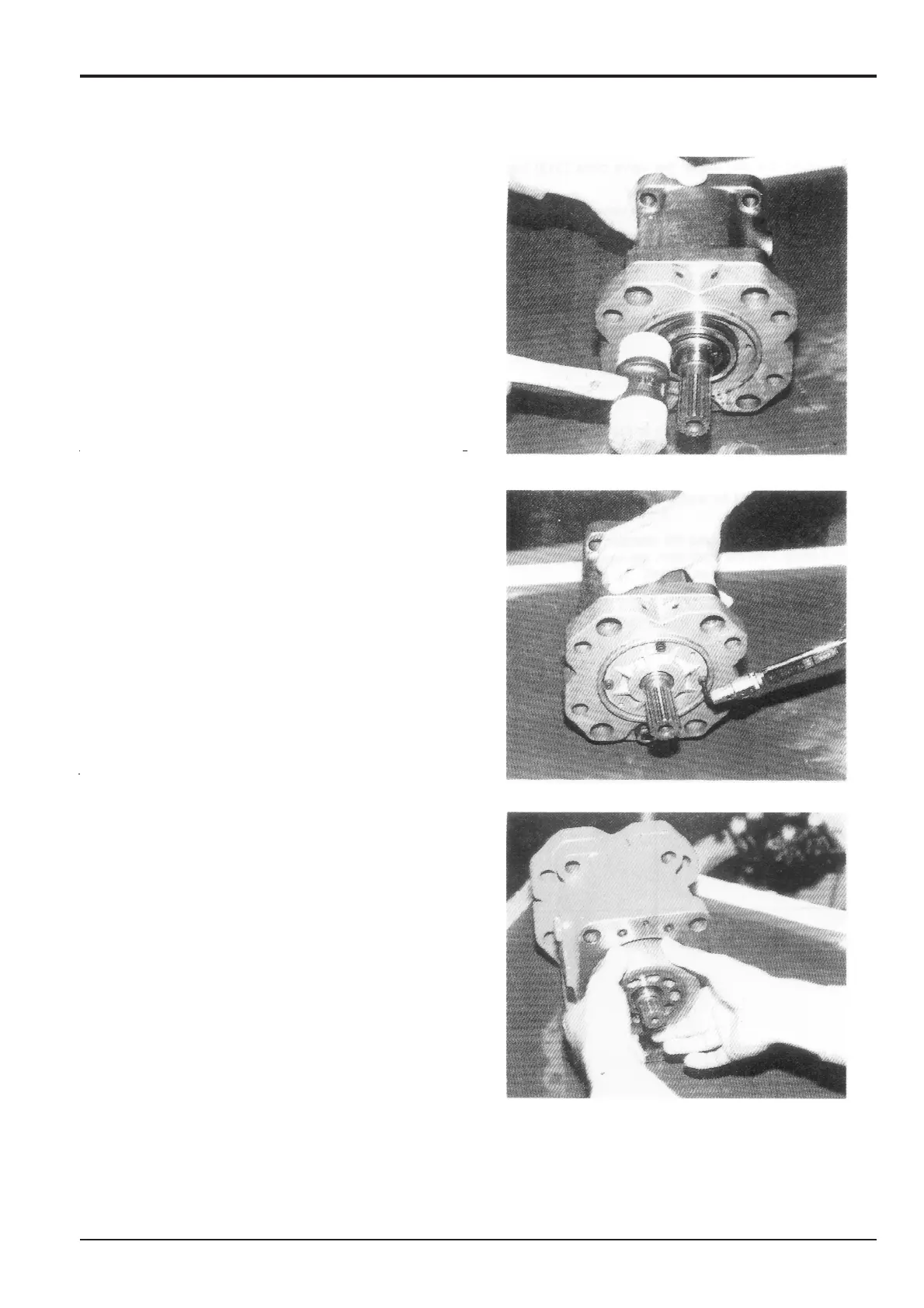

3. Install the drive shaft (111) which has the bearing (123),
bearing spacer (127) and stop ring (824) set on it to the
swash plate support (251).
Note: Do not hit the drive shaft with the hammer. Tap the
outer ring of the bearing with a plastic hammer to install it
and use a steel bar to fit it securely.
4. Install the seal cover (F) (261) to the pump casing (271)
and fix with hexagonal socket head bolt (406).
Coat the oil seal inside the seal cover (F) with a thin coat
of grease.
Install the oil seal taking care not to damage it.
Attach the rear cover (263) and the seal cover (262) in
the same way if it is a tandem pump.
5. Assemble the piston cylinder sub-assembly (cylinder
(141), piston shoe (151, 152), press plate (153),
spherical bush (156), spacer (158), cylinder spring
(157)), align the spherical bush and cylinder spline and
insert into the pump casing.
To Next Page
