51 - 3
Dismantling
(continued)

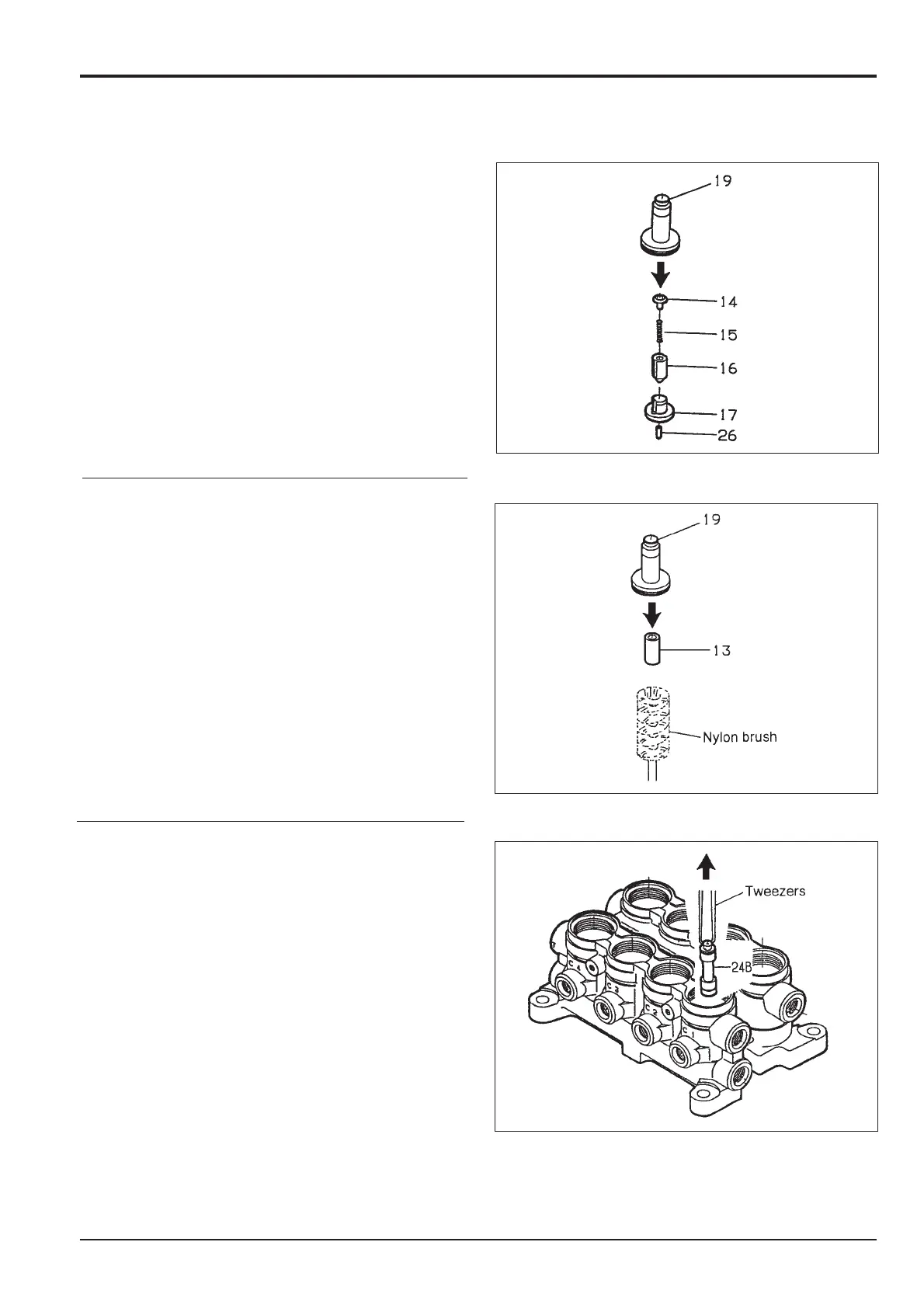

5.
Remove the rod (26), stopper (17), plunger (16), spring
(15), and spring seat (14). If the spring seat is stuck to
the inside of the inner housing, use tweezers to remove
it.
6.
Pull out the pipe (13) from the inner housing using a
nylon brush.
7.
Slowly remove the spool (24B).
Section E
Hydraulics
9803/6400
Section E
51 - 3
Issue 1
Solenoid Valve (8-spool)
