jcb JS260

51 - 4
Dismantling (continued)

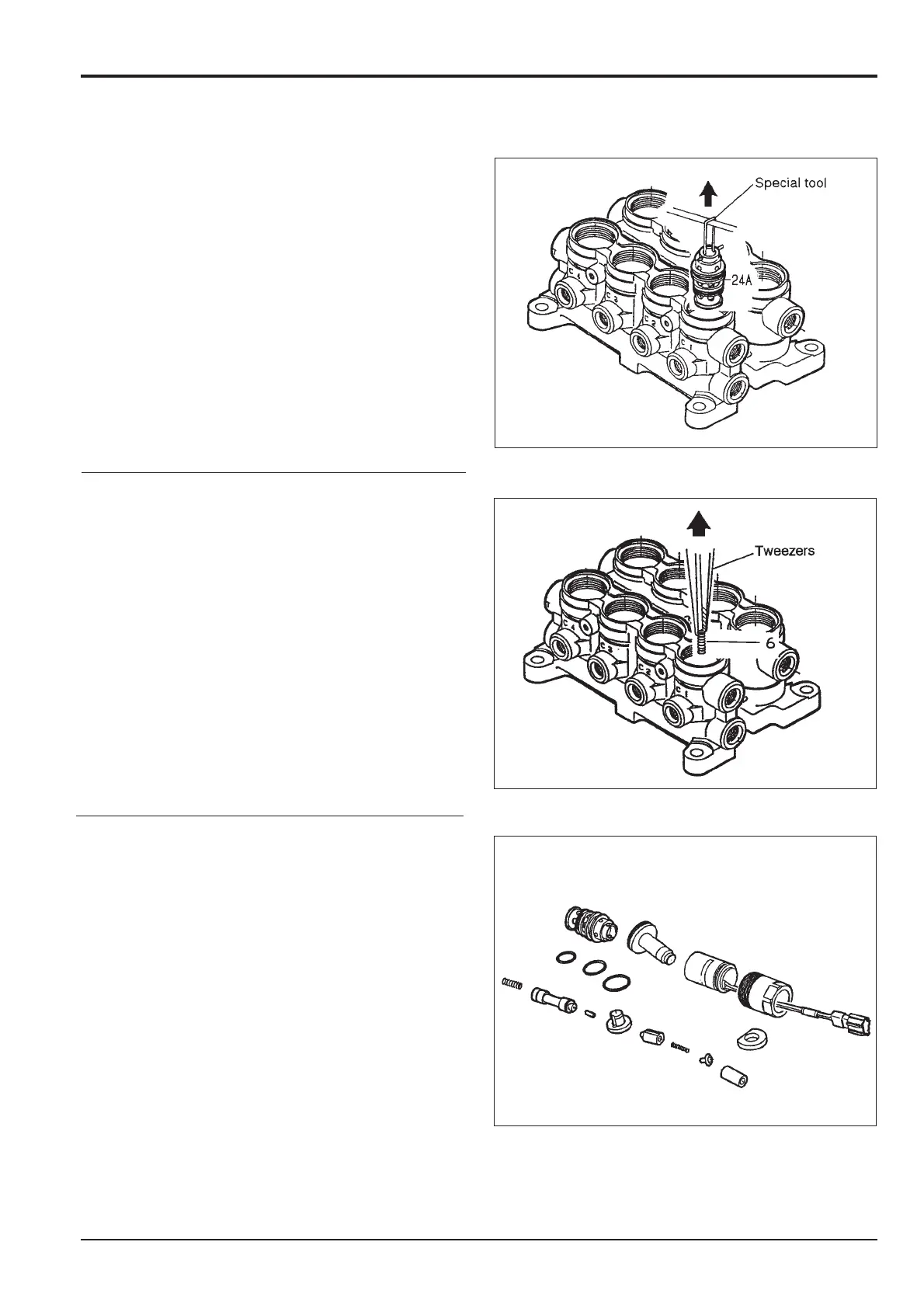

8. Remove the body (24A) with the special tool (A).
9. Remove the spring (6) using tweezers.
10. Line up the disassembled parts on a clean place in such
a way to facilitate reassembly.
Section E
Hydraulics
9803/6400
Section E
51 - 4
Issue 1
Solenoid Valve (8-spool)
