Boom Ram (continued)

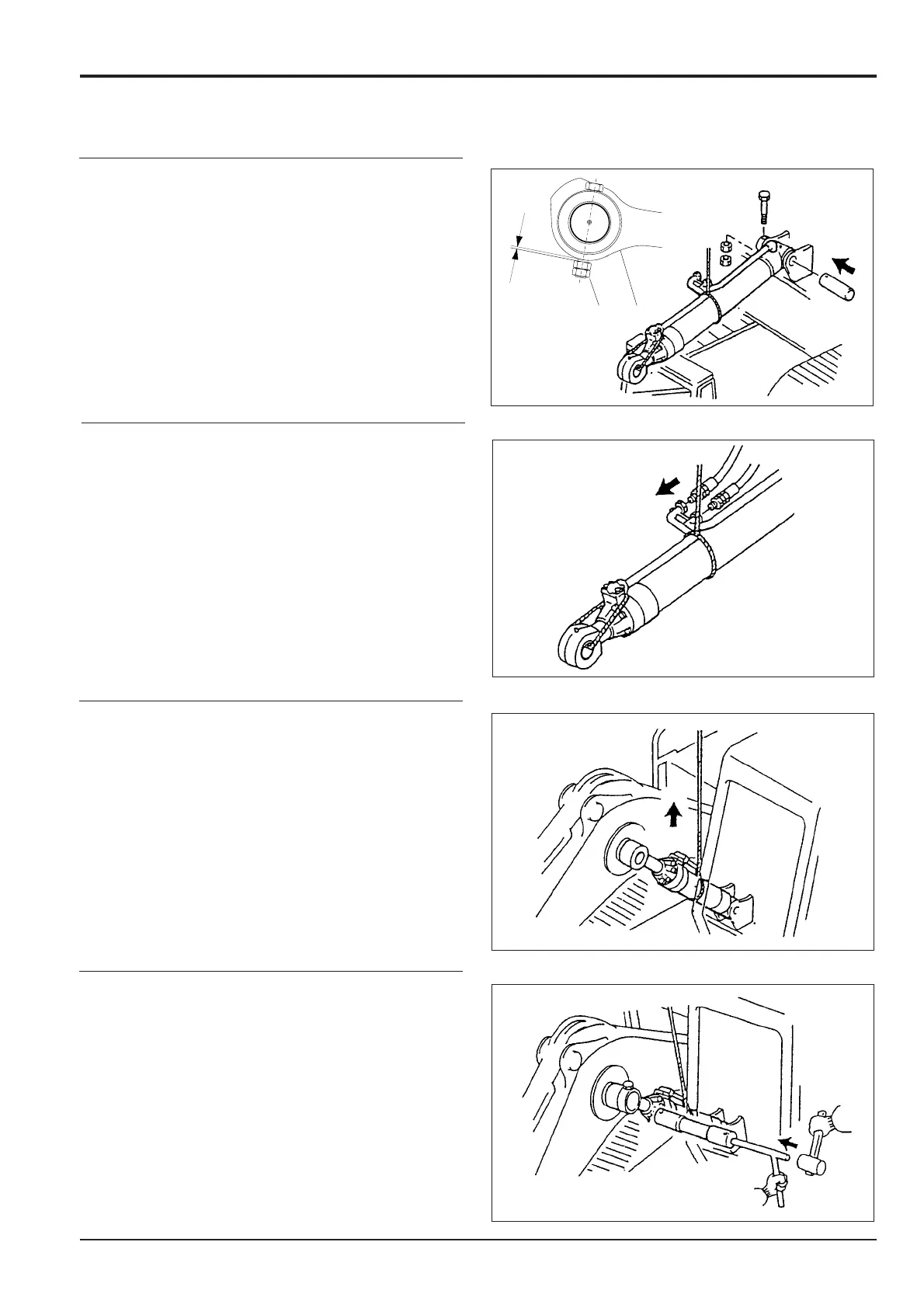

2. Install the pin and then the bolt and nuts. When
checking or refitting JS machine pivot pins, the retaining
nuts and bolts should not be fastened up tight but must
have approximately 3mm of play so that the pin is free
from tension.
3. Install the hoses to the boom ram.
4. Lift the boom ram and align the rod eye end with boom
pin position.
5. Install the pin with a bar and hammer.
74 - 4
Section E
Hydraulics
9803/6400
Section E
74 - 4
Issue 2*
Hydraulic Rams
3mm
*
