Boom Ram (continued)

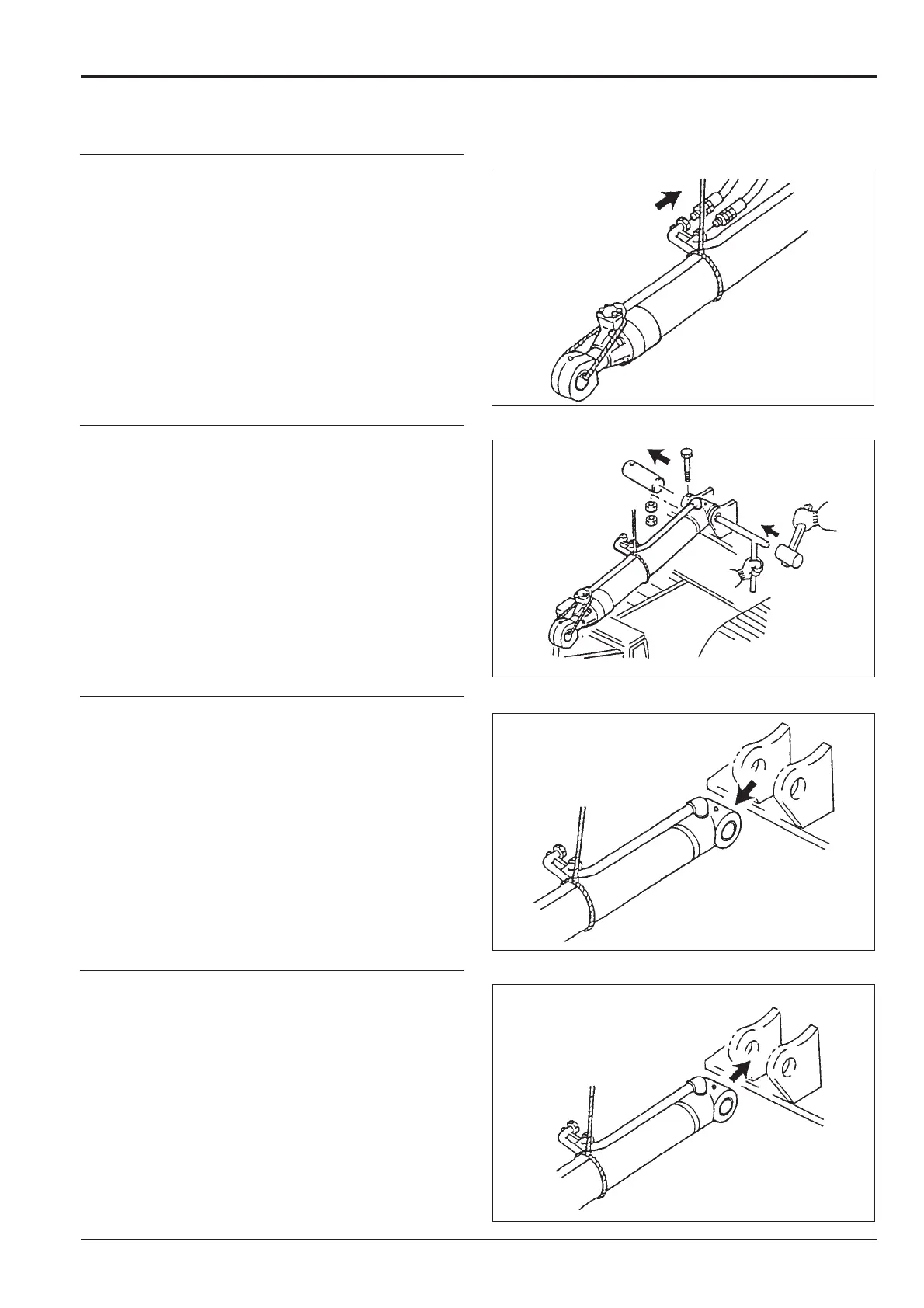

8. Remove the boom ram hoses, and install plugs or caps
to prevent contamination.
9. Remove the nut and bolt and push out the pin with a
hammer and bar.
10. Lift the boom ram away from the unit.
Installation
1. Attach a sling to lift the boom ram.
Align the main frame to the installation position.
74 - 3
