92 - 8

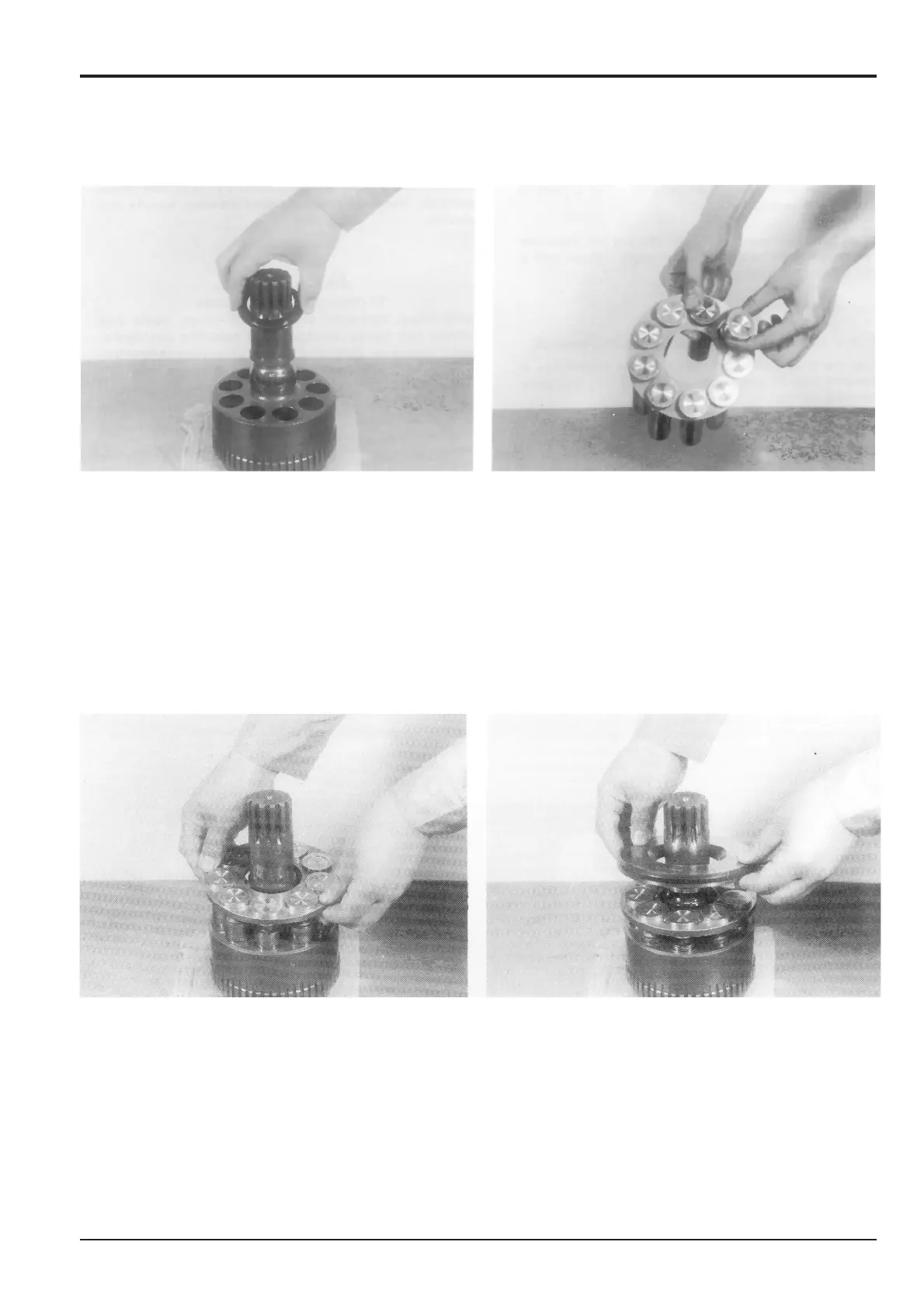

2 Apply grease to the curved part of cylinder 24 (contact
face with spring 5) and mount spring 5.
3 Position the piston assemblies 8 into the holes of
retainer plate 7.
Section E
Hydraulics
9803/6400
Section E
92 - 8
Issue 2*
Slew Motor
*
Motor Assembly/Cylinder Assembly
Assembly (cont’d)
4 Mount the piston assemblies 8 together with retainer
plate 7 into cylinder 24.
Note: Insert the piston assemblies into the same bores from
which they were removed.
Apply clean hydraulic oil to all cylinder 24 bores before
reassembling.
5 Apply clean hydraulic oil to piston assembly 8 shoe
sliding surface and mount the swash plate 6.
To Next Page
