Slew Motor
*

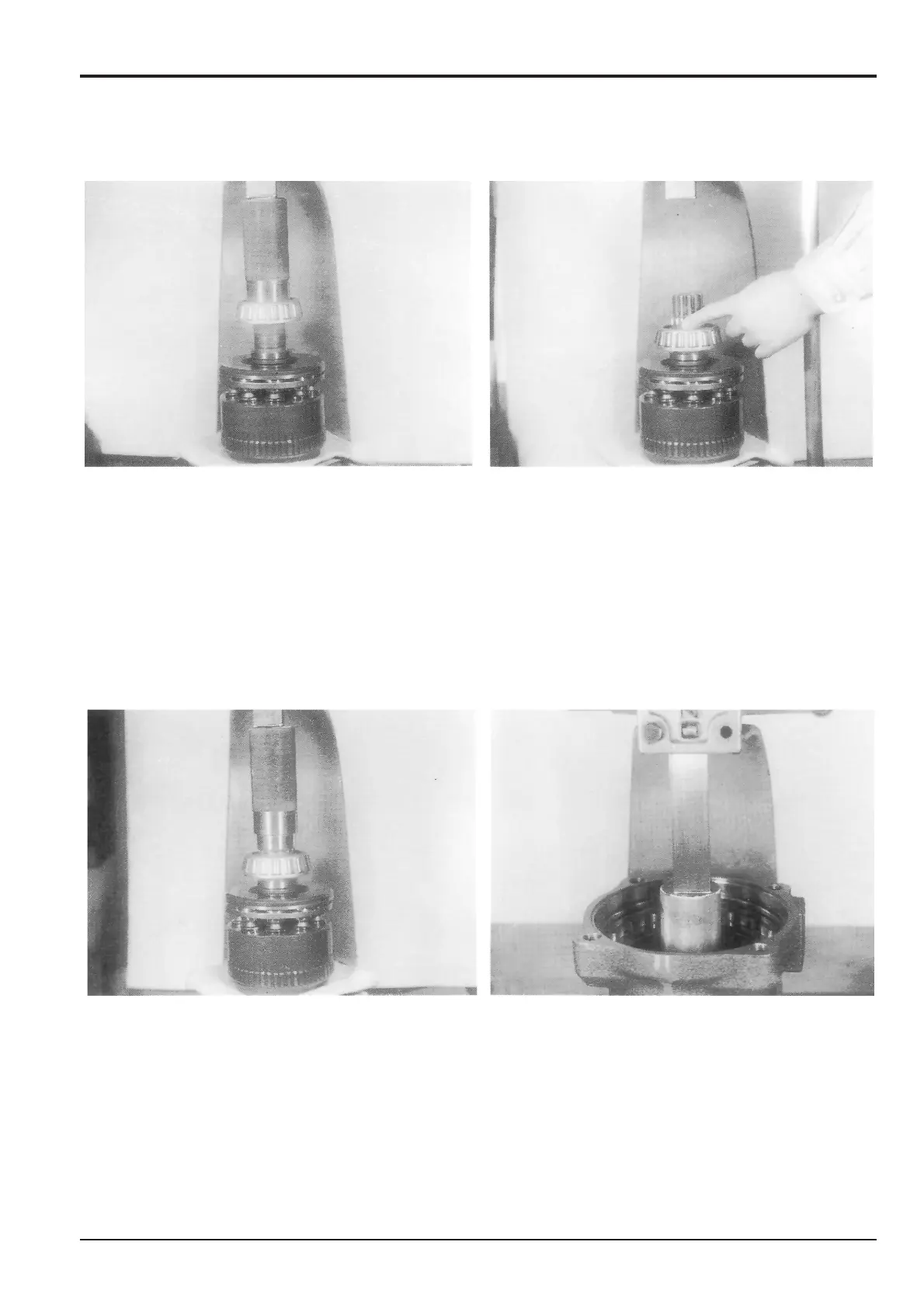

6 Mount collar 53 and inner ring of taper roller bearing 1
on motor output shaft 24.
7 Apply a thin coat of JCB Retainer where the inner ring is
mounted on motor output shaft 24.
Motor Assembly/Cylinder Assembly
Assembly (cont’d)
8 Using a jig, (see Special Tools, Section 1) mount inner
ring 1 on output shaft 24.
9 Apply grease to the lip of seal 2 and use a press and jig
(see Special Tools, Section 1) to force fit the seal into
position.
