7 - 11
Assembly (continued)

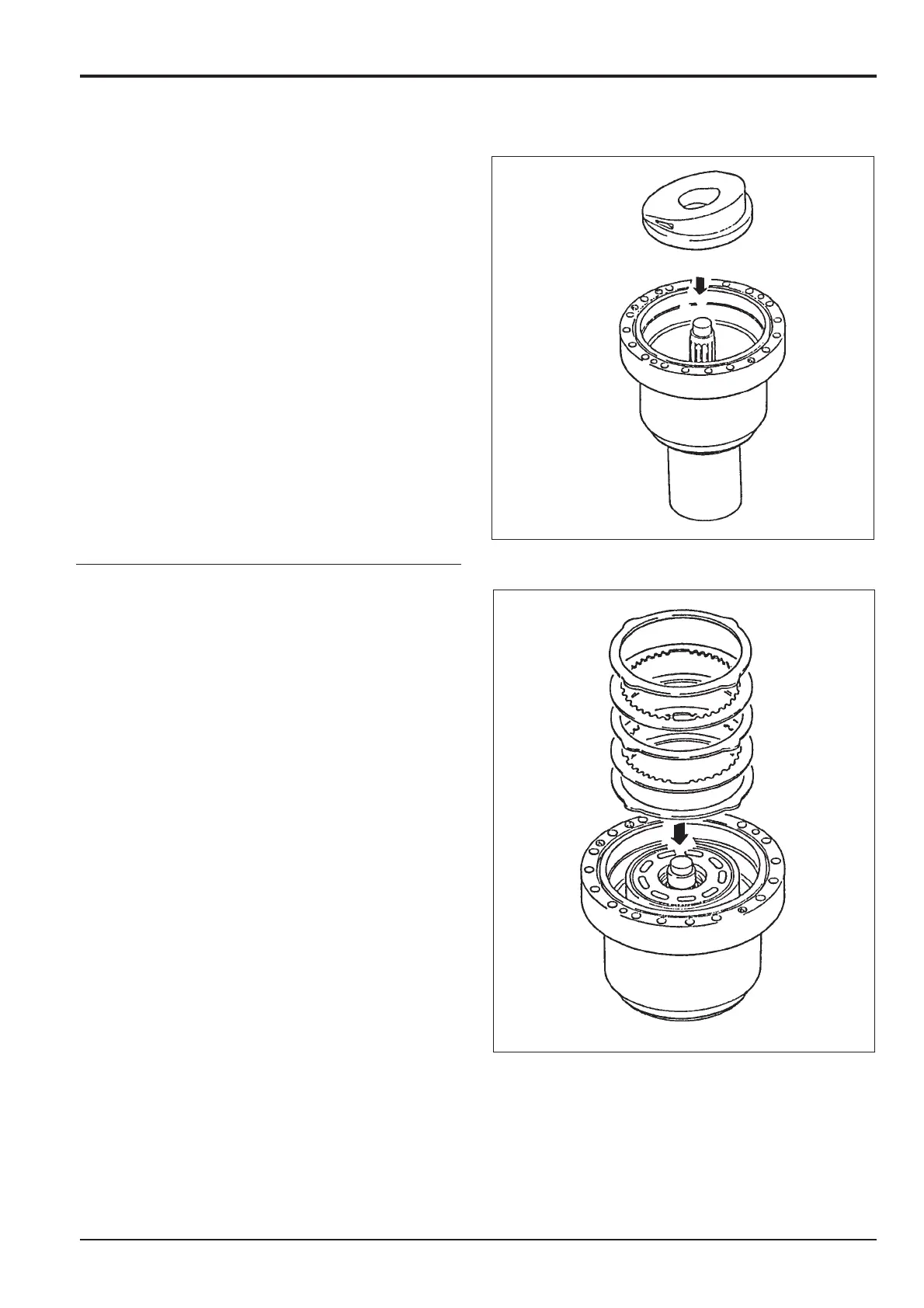

9. Assemble the (9) swash plate to the (1) case.
10. Place the (1) case on the work bench horizontally
and insert the (4) cylinder block into the (1) case.
Next, assemble the (26) disk and (27) friction plate in
order.
Apply hydraulic oil to the (9) swash plate before assembling
the (4) cylinder block. Check to see that the (4) cylinder
block is rotating smoothly and the (6) piston is moving back
and forth.
Section F
Transmission
9803/6400
Section F
7 - 11
Issue 1
Motor
