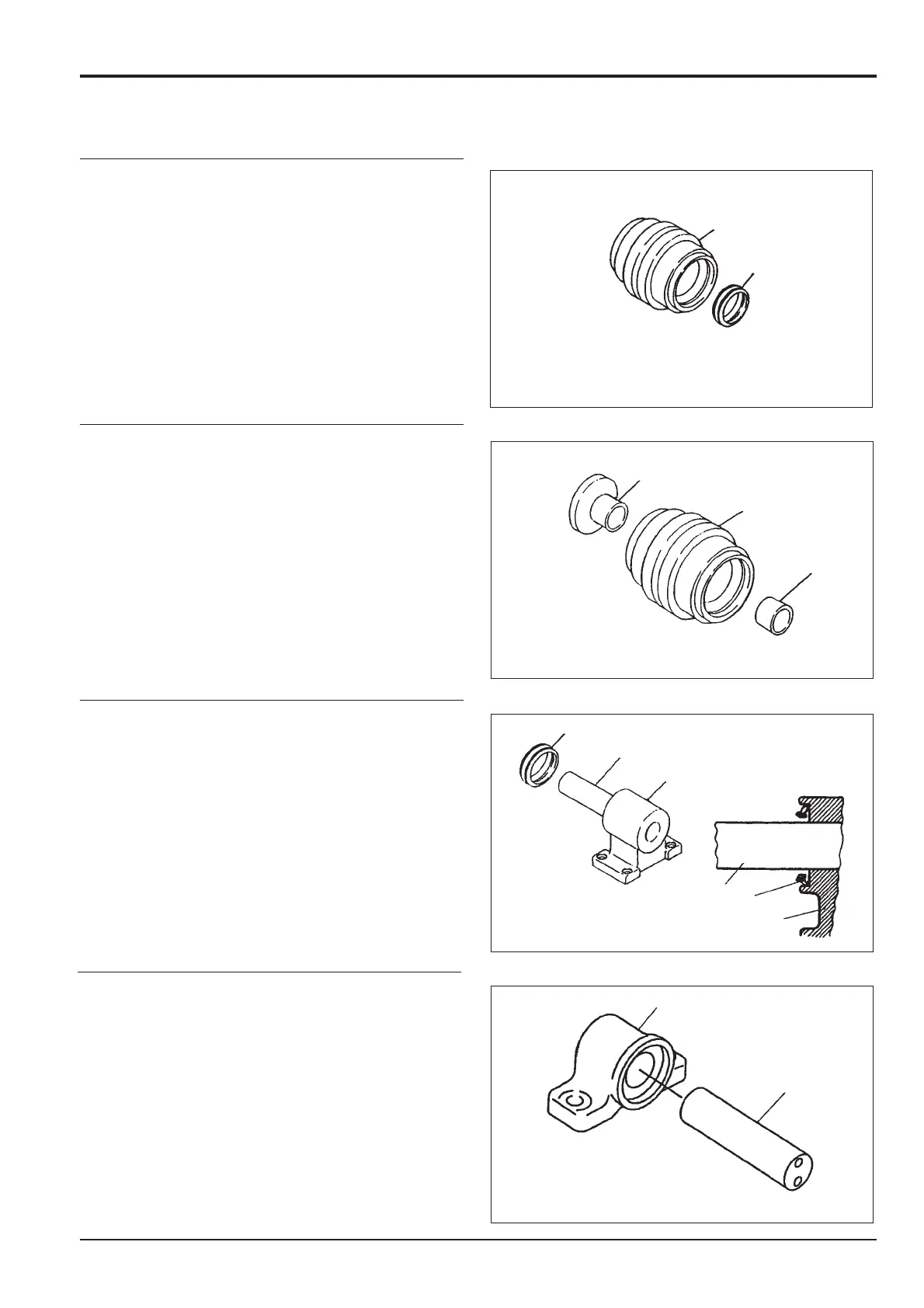

Dismantling (continued)
5. Remove the floating seal I from the upper roller A.
6. If badly worn or damaged, remove the bushes J and K,
from the roller A.
7. Remove seal I from bracket L using a pry bar.
Protect parts from moisture and dust if left dismantled for
some time.
Assembly
1. Clean all parts thoroughly in a suitable solvent. Dry shaft
and bore of roller using compressed air in a place free of
dust and moisture.
Check components for wear as detailed under (Wear
Limits). Polish out scratches and roughness using an oil
stone. Then apply a coat of engine oil to all parts.
If a new shaft or bracket are required, press-fit shaft H
into bracket L, taking care to protect the threads of the
tapped holes in the end of the shaft.
