10 - 4

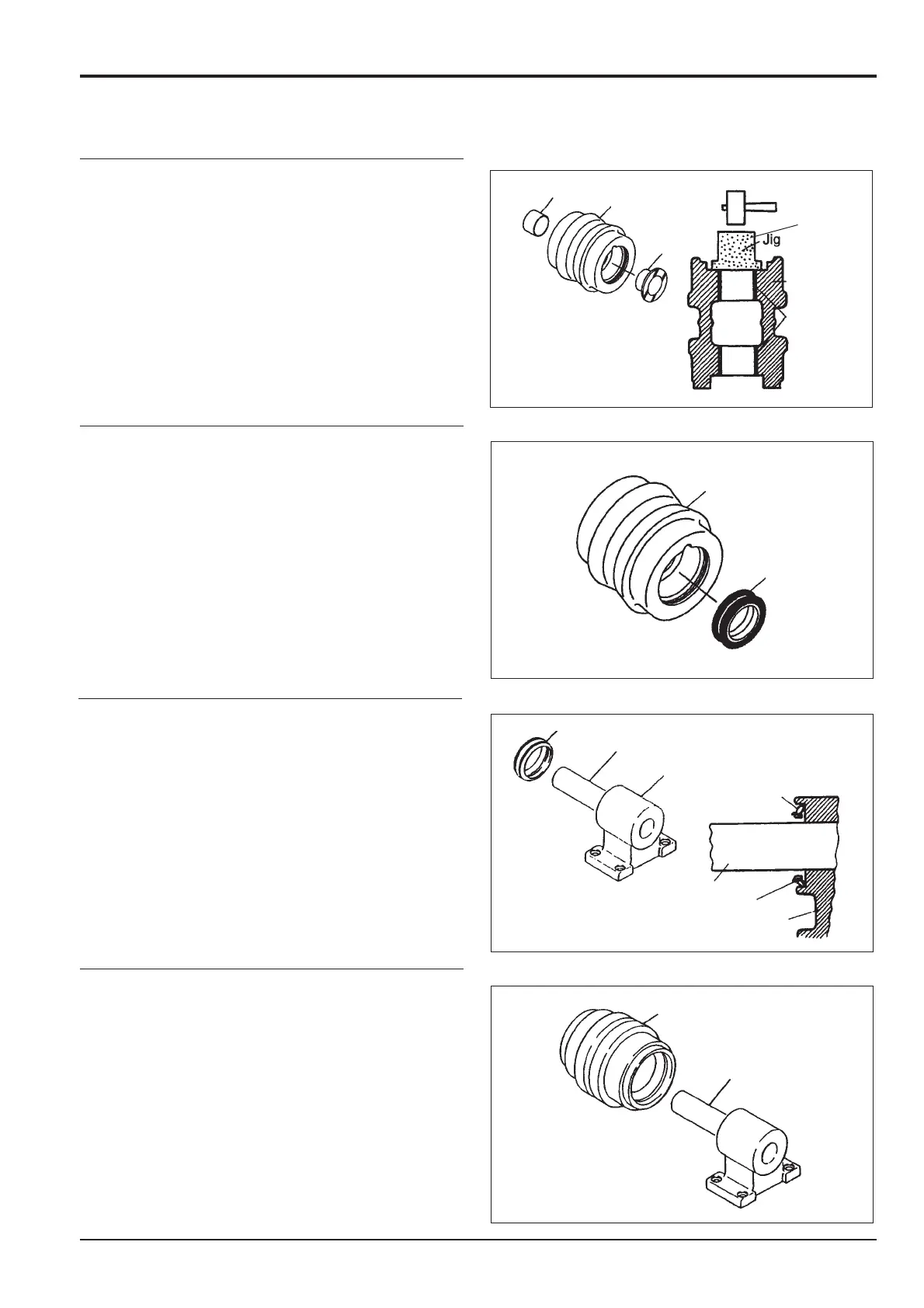

Assembly (continued)
2. Using a jig M, and hammer, insert the bushing N, and P
into the roller A.
3. Install the new floating seal I into the roller A coat oil onto
the floating seal surface.
4. Install the new seal I into the bracket L.
Coat the metallic face of the seal with engine oil.
5. Coat the shaft H with grease. Install the roller A onto the
shaft H.
Section J
Track and Running Gear
9803/6400
Section J
10 - 4
Issue 1
Top Roller (continued)
N
A
P
M
A
I
I
H
L
I
H
L
A
H
To Next Page
