11 - 1
Section J
Track and Running Gear
9803/6400
Section J
11 - 1
Issue 1

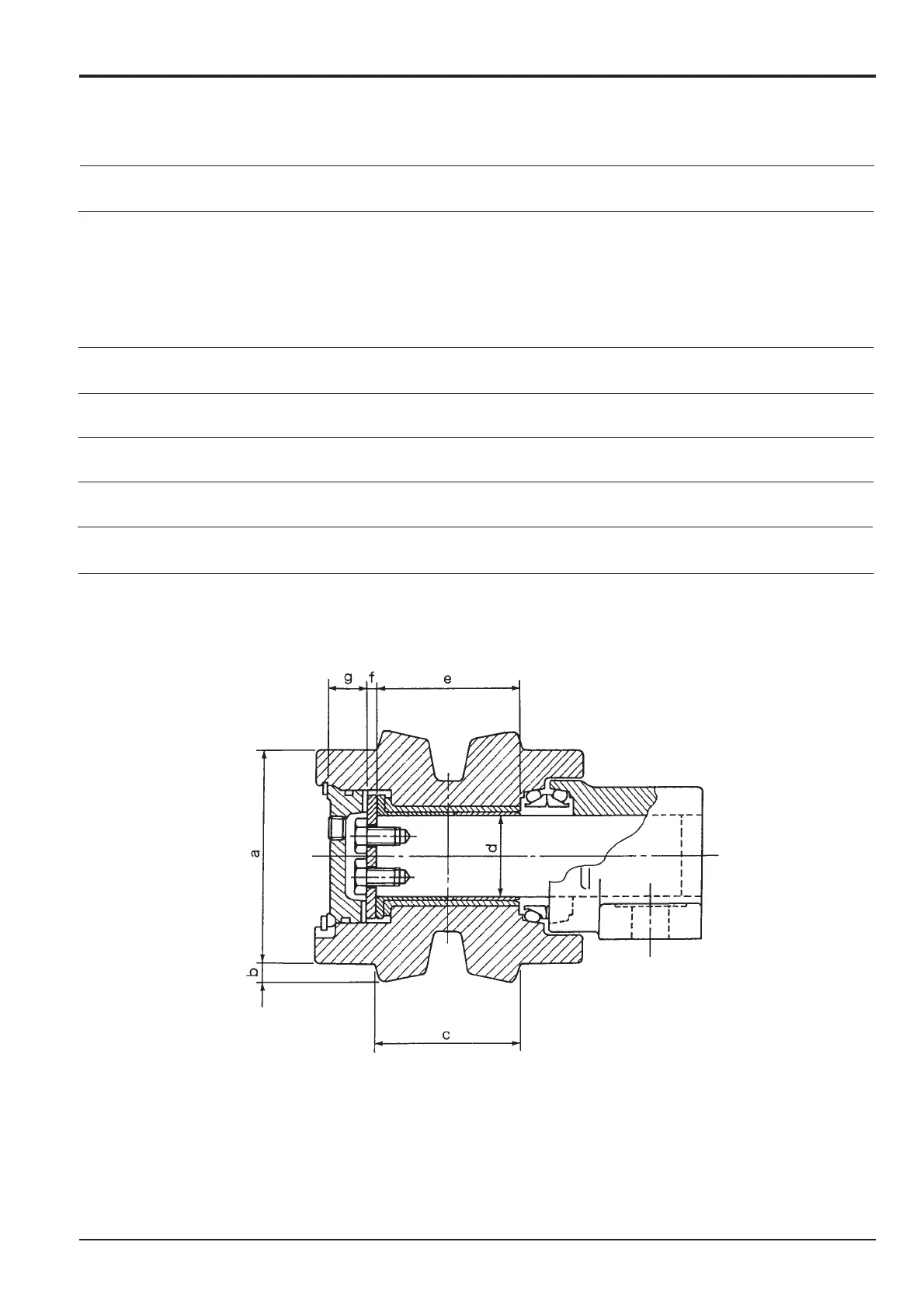

Top Roller (continued)
Wear Limits
Item Dimension Machine Standard Size Service Limit Action
mm in mm in
Carrier Roller a JS200 120 4.72 112 4.40 Renew
JS240
b JS240 0 .39 Renew
JS240
c JS200 85 3.34 79 3.11 Renew
JS240
Inner Flange width d JS200 46 1.81 45.5 1.79 Renew
JS240
Outer Flange width d JS200 46 1.81 46.8 1.84 Renew
JS240
Shaft Diameter e JS200 83 3.26 82.6 3.25 Renew
JS240
Length f JS200 5.5 .21 5 .19 Renew
JS240
Collar g JS200 23 .90 22.5 .88 Renew
JS240
