Removal
Note: The following procedure is applicable to all bottom
rollers, but as there are visual differences, the illustrations
show only a typical unit.

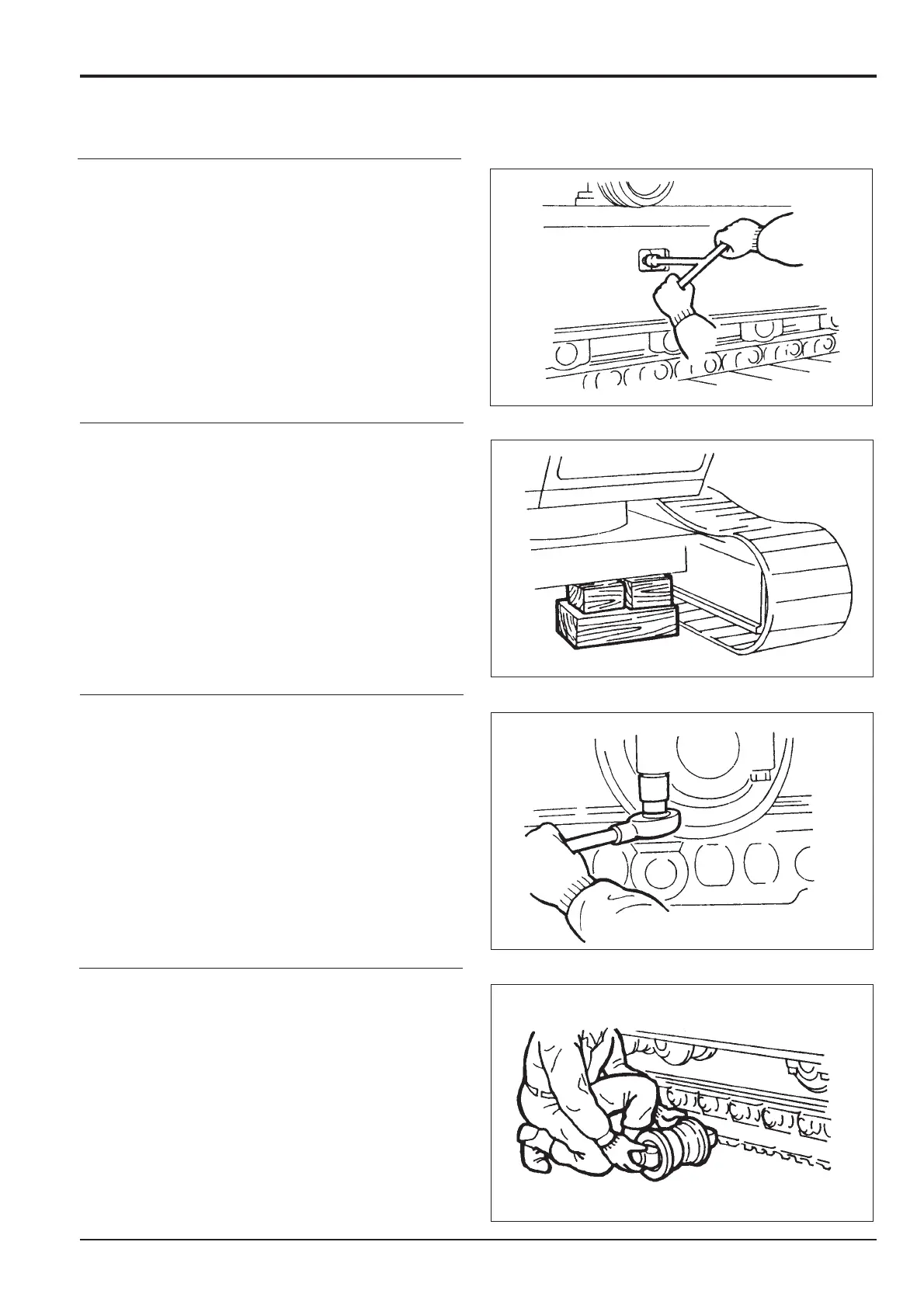

1. Slacken the check valve to bleed out grease.
!!
WARNING
When opening the check valve always stand to one side
and loosen a little at a time until grease starts to come
out. If you over-loosen too much, grease could spurt out
or the valve cover fly out and cause serious injury.
8-3-4-5
2. Lift the side of the undercarriage high enough to permit
bottom roller removal. Support with wooden blocks.
3. Remove the mounting bolts, and tap the bottom roller
with a copper mallet to separate it from the side frame.
4. Remove the roller.
